EvoTRAC-P101

Rugged Compact System

Intel Dual Core i7-5650U Processor
I/O Interfaces: 4x Ethernet, 2x USB 3.0 / 2x USB 2.0, 2x DVI, Serial & GPIO
fixed and removable storage
in-vehicle power, air cooled system
wireless connectivity options (wifi and/or cellular)

Request product Download datasheet

Product Information

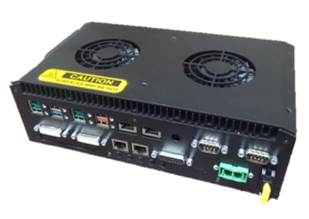

The EvoTRAC-P101 is a highly versitale compact platform featuring the Intel i7-5650U Dual-Core Processor, with four RJ45 Ethernet interfaces, dual USB 3.0, dual USB 2.0, and dual DVI video ports. The system is designed to fit in small spaces (such as the glove compartment box) and includes a removable 2.5" SSD holder for quick access to the data. An integrated in-vehicle power supply is included along with GPIO and RS232 serial ports. Configured with Ubuntu 16.04 LTS, the platform is ready to use for your application requirements.

Technical support

Technical data

Dimensions (H x W x D)	10.00”W x 5.75“D x 3.00”H
Cooling	Forced Air Cooled
Processor	COMe-cBL6 i7-5650U (2C 2.2GHz, 15W) 8GB RAM
I/Os	4x GbE 2x USB 2.0 2x USB 3.0 2x DVI 2x RS232 1x GPIO 1x Power Input (removable fuse)
Temperature	-20°C to +70°C (operating)
