This product is legacy and no longer actively supported.

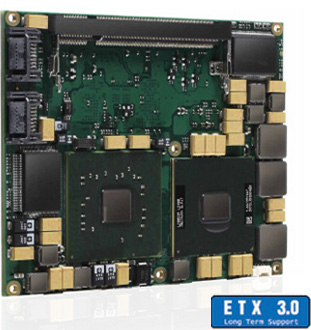

ETX®-CD
Highest performance for ETX®
- From Intel® Celeron® M440 up to Core™2 Duo
- Intel® 945GM/945GME and Intel® ICH7M
- ETX® 3.0 – Long Term Support
- 2 x SerialATA for highspeed drives
- Up to 2 GB DDR2 memory
Highest performance for® ETX Computer-on-Modules with ETX® 3.0 Long Term Support!
ETX®-CD is the highest performance Computer-on-Module based on ETX® 3.0 standard. The ETX®-CD module is based on up to Intel® Core™2 Duo processors. ETX®-CD modules also will provide interfaces that are always located in the same physical position on each board, thus guaranteering scalability between modules.
Technical data
| CPU | Intel® Core™2 Duo with 1.5 GHz Intel® Core™ Duo up to 1.66 GHz Intel® Core™ Duo ULV U2500 1.2 GHz Intel® Celeron® M423 with 1.06 GHz Intel® Celeron® M440 with 1.86 GHz |
|---|---|
| Chipset | Intel® 945GM/945GME, Intel® ICH7M |
| Main Memory | Up to 2 GB DDR2 (400/533/667) SODIMM Memory |
| Hard Disk | 2x SerialATA (AHCI), 1x Parallel ATA 100 |
| USB | 4 x USB 2.0 |
