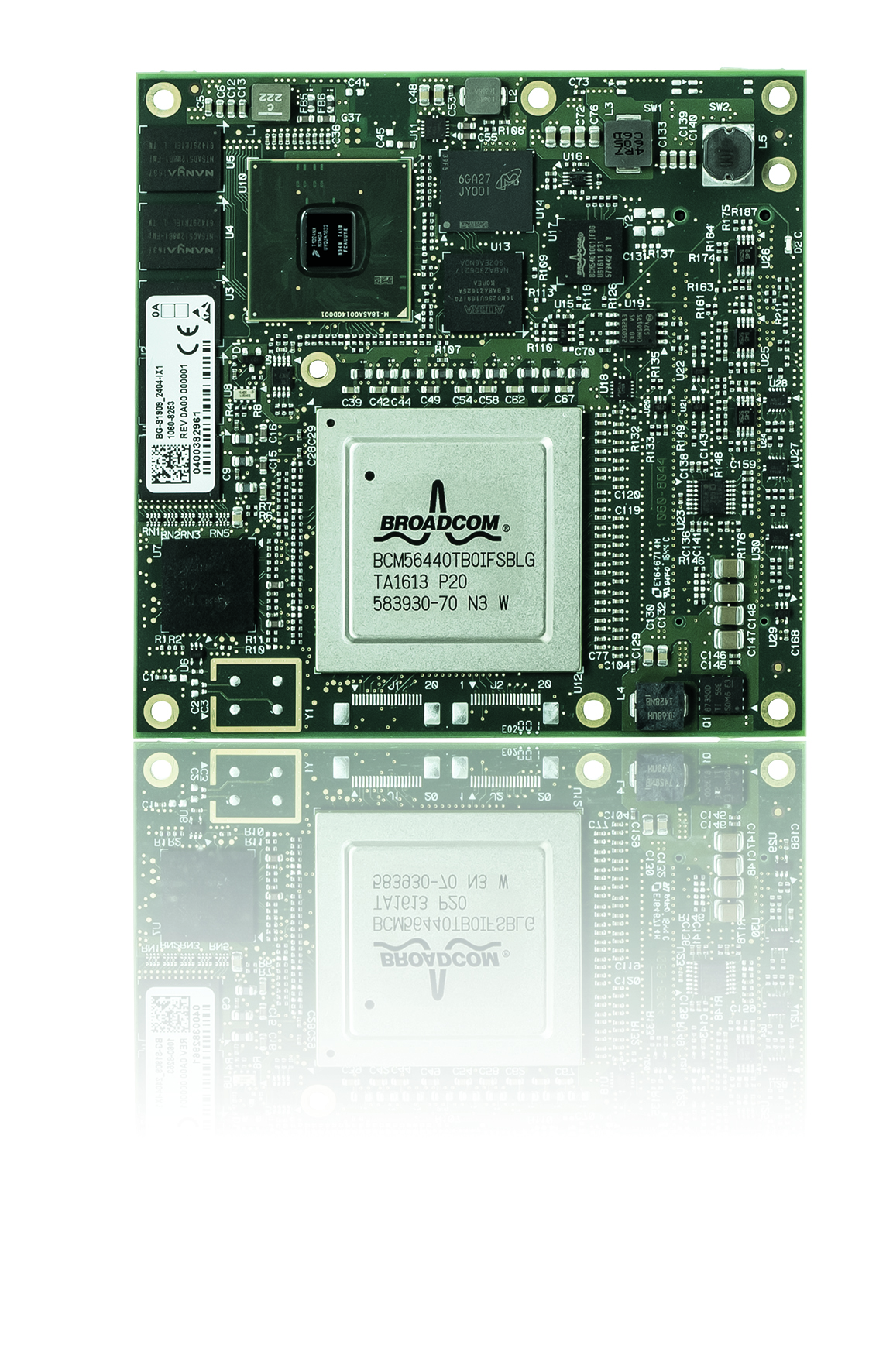

ESC2404-PTP Module Not recommended for new designs

Fully managed Layer 2/3 Ethernet Switching Core Module
Specifications
  • Reliable: Based on the well established and reliable COMExpress compact form factor (95x95mm)
  • Flexible, Easy to use: 24x1G ports plus 4x10G ports, command line and web management
  • Fully managed Layer 2 / 3 non blocking Ethernet Switch, IPv6 support
  • PTP, IEEE 1588v2 support
  • Rugged: High temperature range, high shock and vibration robustness
  • Single supply voltage 12VDC
  • Designed to meet industrial, naval and military norms
Download Datasheet

10G managed switching core module for individual Ethernet switching devices.

The 1/10G non blocking fully managed L2/L3 Ethernet Switching Core Module (ESC) is designed for individual Ethernet switching devices. It is ideally suited for harsh military and avionics applications, where longevity and reliability is needed. Based on the well established and reliable COMExpress compact form factor (95x95mm) Kontron’s switching module is the perfect basis for customized Ethernet switch board & system solutions.

The ESC module is available with 28 ports:

  • ESC2404-PTP: 24 Gigabit Ethernet interfaces, SGMII and XAUI for 1/10G Phys.


Due to the extensive technical know-how and existing building blocks, Kontron also realizes your custom baseboard and system design according to your special requirements.

Features

Connection SGMII, XAUI, MII, serial, 10/100/1000 BASE-T, I²C
Dimensions (H x W x D) 15mm x 95mm x 95mm incl. heat spreader
Ethernet/Bridging Protocols IPv4/IPv6 support including PTP (IEEE 1588v2), VLANs (802.1Q), Link Aggregation (802.3ad), Spanning Tree (802.1D, 802.1w),QoS(802.1p), Flow Control (802.3x), GVRP, GMRP
Function managed Ethernet Switch Core module
Operation Temperature -40°C to +85°C surface temperature
Ports 16 GbE (ESC1600-PTP) or 24GbE + 4x 10GbE (ESC2404-PTP) + management
Power Consumption typ. 25W; max. 34W (ESC2404-PTP) at 12V DC
Routing Protocols IPv4/IPv6 support including OSPFv2, RIPv2, VRRP, IGMP Snooping, DiffServ, ARP, ICMP

Downloads

Datasheets

ESC1600-PTP/ESC2404-PTP Module Datasheet
[ esc2404-ptp_datasheet.pdf, 2.36 MB, Jul.27.2022 ]

Manuals

RES2404-PTP / RES2404-PTP-PoE User Guide
Rev. 1.1, 18. August 2020
[ userguide_res2404-ptp-poe_rev1-1_2020-08-18.pdf, 2.32 MB, Apr.20.2023 ]

RES-PTP-POE Command Line Interface Reference Manual
Fastpath CLI reference manual for ESC-RES-PTP products
[ res-ptp-poe-cli-reference-manual-v1-0.pdf, 5.95 MB, Apr.20.2023 ]

Quick Start - Fastpath Configuration Guide
The Fastpath Configuration guide explains the general use of the command line programming interface and provides practical examples.
[ fastpath-configuration-guide-v1-2.pdf, 4.97 MB, Apr.20.2023 ]

ESC RES Application Note PTP
Application note regarding usage of PTP (Precision Time Protocol) features on ESC-RES-PTP products
[ esc-res-ptp_an-0002-ptp-v1-00.pdf, 120.93 KB, Apr.20.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
