ePCI-200 Datasheet
172.26 KB | March 26, 2026
This product is legacy and no longer actively supported.

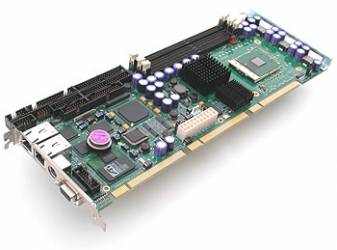

ePCI-200
Pentium 4 up to 3.06GHz, Serverwork GC-SL, 2x Ethernet, dual independent PCI-bus up to PCI-X
- Intel® Pentium 4®
- Desktop up to 3GHz
- Mobile up to 2.2GHz
- Up to 4 GB of PC2100 (266) DDR SDRAM on 3
- DIMM memory modules
Product Information
The ePCI-200 will reach new levels of performance in PICMG CPU boards.
It comes standard with a rich set of features including the latest generation
478-pin processor technology, PCI-X support up to 133MHz, up to 4Gig of
DDR SDRAM, an onboard ATI Mobility Radeon with integrated 16MB of DDR
SDRAM and a dual Fast Ethernet controller. Additional features include two
USB ports, a floppy controller, two serial ports, a parallel port, PS/2 keyboard
and mouse ports, a hardware monitor and a dual stage watchdog timer.
This generic single board computer is targeted at a broad range of applications
requiring a high performance processing with a good graphic solution in a
PICMG environment (where ISA bus support is not necessary). Those
requirements can be found for applications in most of the markets:
automation, communications, medical and military.
For more details please see:
http://www.epci-x.com
It comes standard with a rich set of features including the latest generation
478-pin processor technology, PCI-X support up to 133MHz, up to 4Gig of
DDR SDRAM, an onboard ATI Mobility Radeon with integrated 16MB of DDR
SDRAM and a dual Fast Ethernet controller. Additional features include two
USB ports, a floppy controller, two serial ports, a parallel port, PS/2 keyboard
and mouse ports, a hardware monitor and a dual stage watchdog timer.
This generic single board computer is targeted at a broad range of applications
requiring a high performance processing with a good graphic solution in a
PICMG environment (where ISA bus support is not necessary). Those
requirements can be found for applications in most of the markets:
automation, communications, medical and military.
For more details please see:
http://www.epci-x.com
