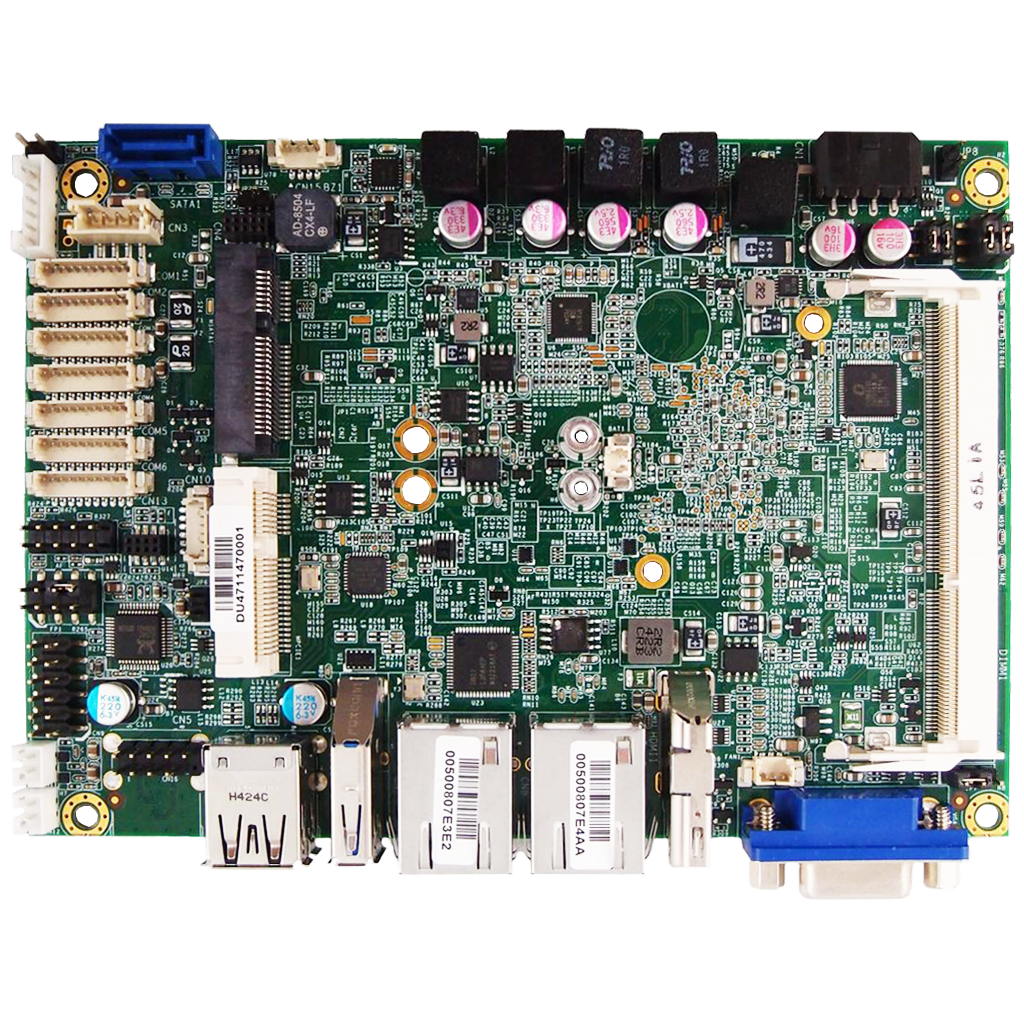

ECX-BYT
3.5” Single Board Computer with Intel® Celeron® J1900 SoC Processor
- 1x LVDS, 1x HDMI, 1x VGA for dual display support
- 2x GbE LAN for Ethernet
- 1x USB 3.2 Gen 1, 5x USB 2.0, 2x RS232/422/485, 4x RS232, 8x DIO for peripherals
- 1x SATA, 1x mSATA for storage
- 1x mPCIe for expansion
Extended Temperature Support
ECX-BYT is a 3.5” single board computer equipped with low-power Intel® Atom® Celeron® J1900 SoC processor, making it an ideal platform for integration into a fanless system.
Expandable with Plug-on Function Module
The ECX-BYT supports a variety of I/O ports including 1x LVDS, 1x HDMI, 1x VGA, 2x GbE LAN, 1x USB 3.2 Gen 1, 5x USB 2.0, 2x RS232/422/485, 4x RS232, 8x DIO, for peripheral applications. Additionally, ECX-BYT reserves a mini PCIe slot allowing for possible functionality expansion such as SSD storage, Wi-Fi, Bluetooth or 3G / LTE wireless connection.
Extended Temperature Support
Extended temperature models are available allowing for operation under extreme high, low or radically fluctuating temperatures, which is common in industrial environments.
Technical data
| Processor | Intel® Celeron® J1900 (Quad Core, 2M Cache, 2.00 / 2.42 GHz, FCBGA1170, 10 W TDP) |
|---|---|
| Main Memory | 1x DDR3L 1333 SO-DIMM up to 8 GByte |
| Graphics Controller | Intel® HD Graphics |
| Display | 1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) 1x HDMI (on rear, 1920 x 1080 @ 60 Hz) 1x VGA (on rear, 2560 x 1600 @ 60 Hz) Dual display support |
| Audio Controller | Realtek ALC888S |
Downloads
Technical Specification
3.5" SBC Tech Spec Sheet
14.12 MB | March 26, 2026
Driver
ECX-BYT Intel Chipset Driver for Windows
5.37 MB | March 26, 2026
ECX-BYT Intel Graphics Driver for Windows 7
205.62 MB | March 26, 2026
ECX-BYT Intel Graphics Driver for Windows 8
223.54 MB | March 26, 2026
ECX-BYT Intel Graphics Driver for Windows 10
200.73 MB | March 26, 2026
ECX-BYT Intel TXE Driver for Windows
100.42 MB | March 26, 2026
ECX-BYT Realtek HDA Driver for Windows
236.05 MB | March 26, 2026
ECX-BYT Realtek LAN Driver for Windows
21.99 MB | March 26, 2026
ECX-BYT Intel USB 3.0 Driver for Windows 7
6.78 MB | March 26, 2026
ECX-BYT Intel LAN Driver for Windows
58.12 MB | March 26, 2026
ECX-BYT COM Patch File
4.72 MB | March 26, 2026
Related products & solutions
Services & Add-ons
Kontron ToolSuite
Central Management Solution for BIOS Configuration in Embedded Systems.
KontronOS
The Secure, Hardened Linux®-Based Operating System for Edge Devices
KontronAIShield
KontronAIShield for Surveillance provides real-time threat detection and intrusion monitoring using AI-powered security. It identifies and responds to both known and emerging threats, ensuring continuous protection for your surveillance infrastructure.
Variants
Select variants here
ECX-BYT-J1900
TBD
- Intel® Celeron® J1900
- Operating Temperature: 0 °C ~ 60 °C
ECX-BYT-J1900-ET
TBD
- Intel® Celeron® J1900
- Operating Temperature: -20 °C ~ 70 °C
