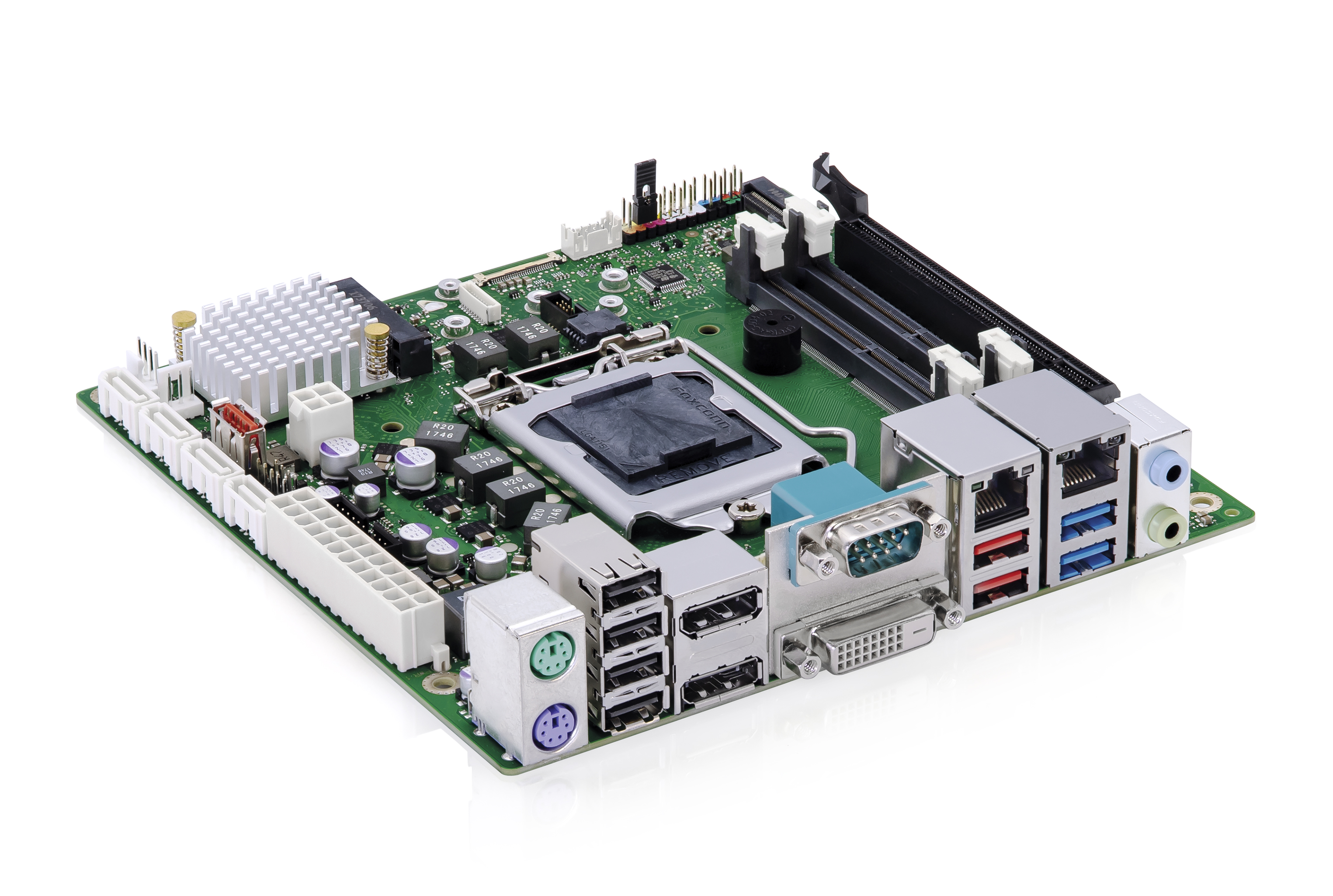

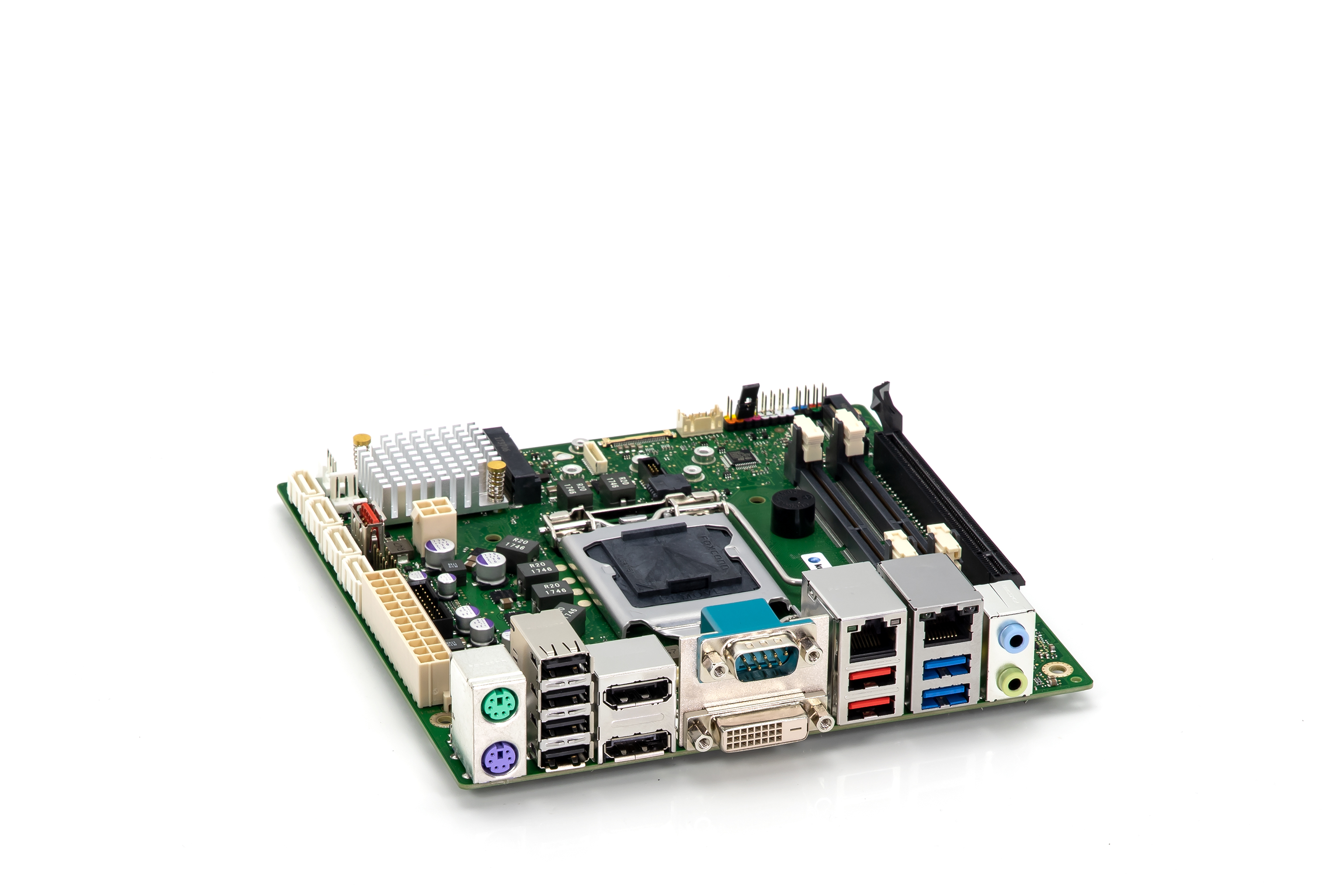

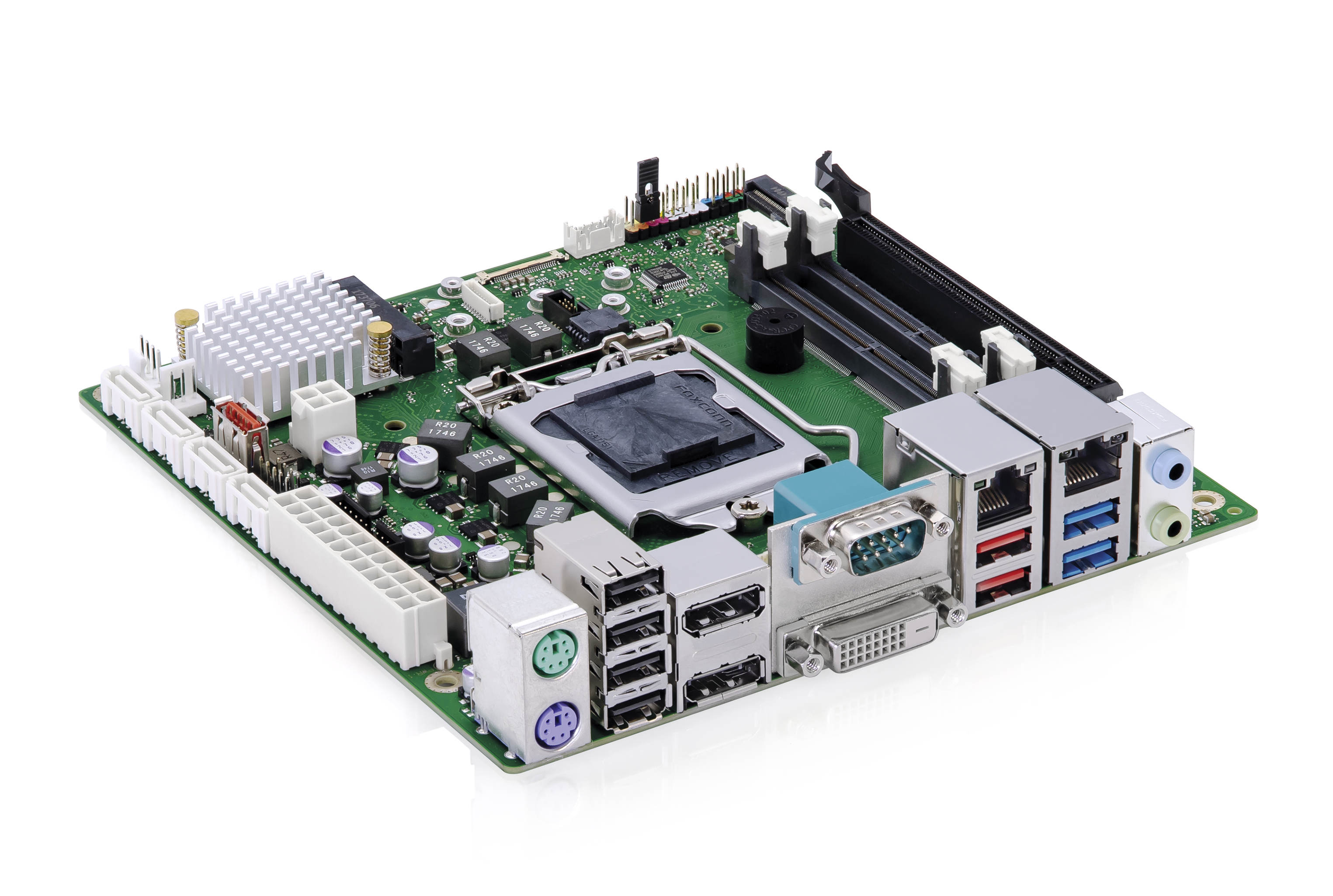

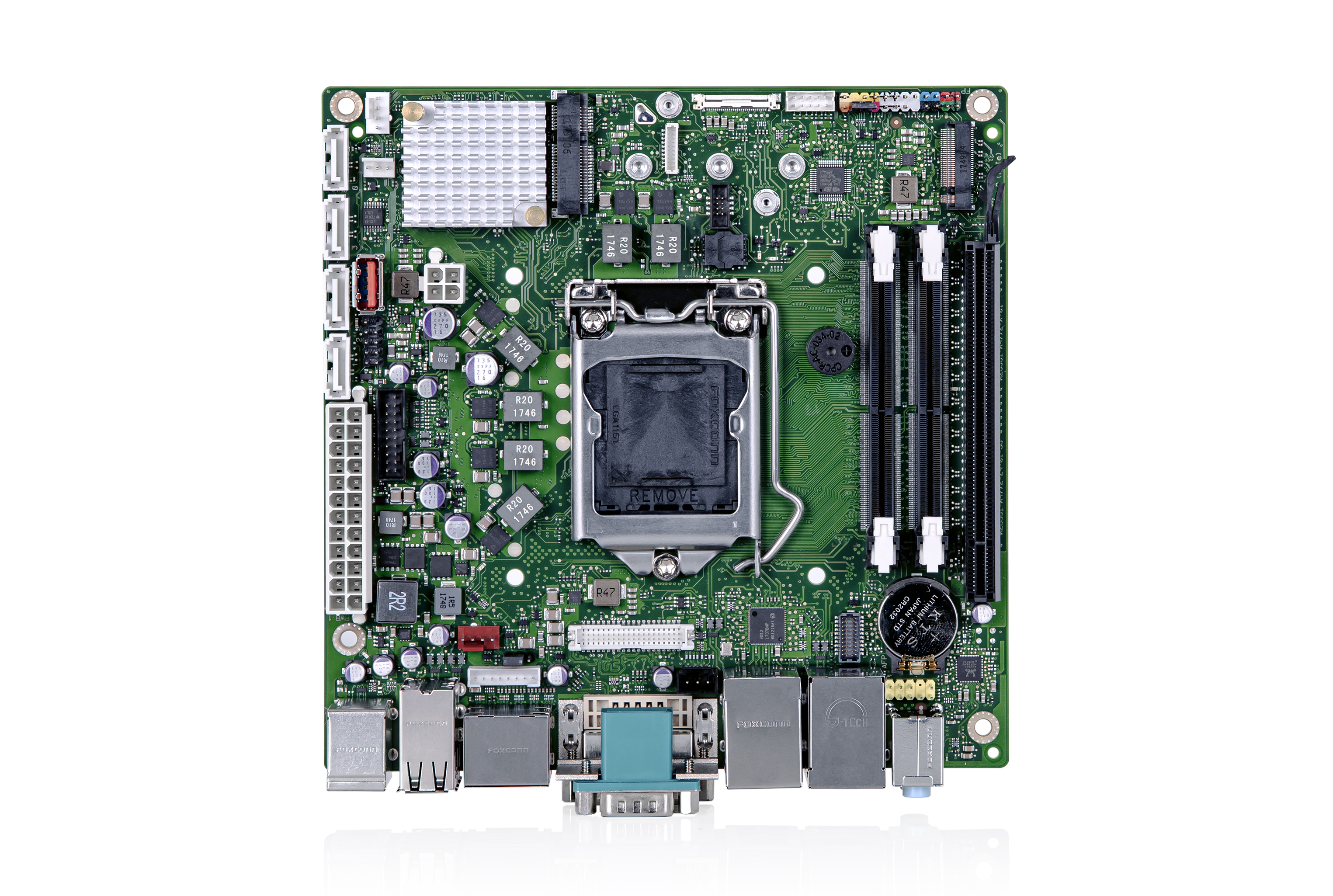

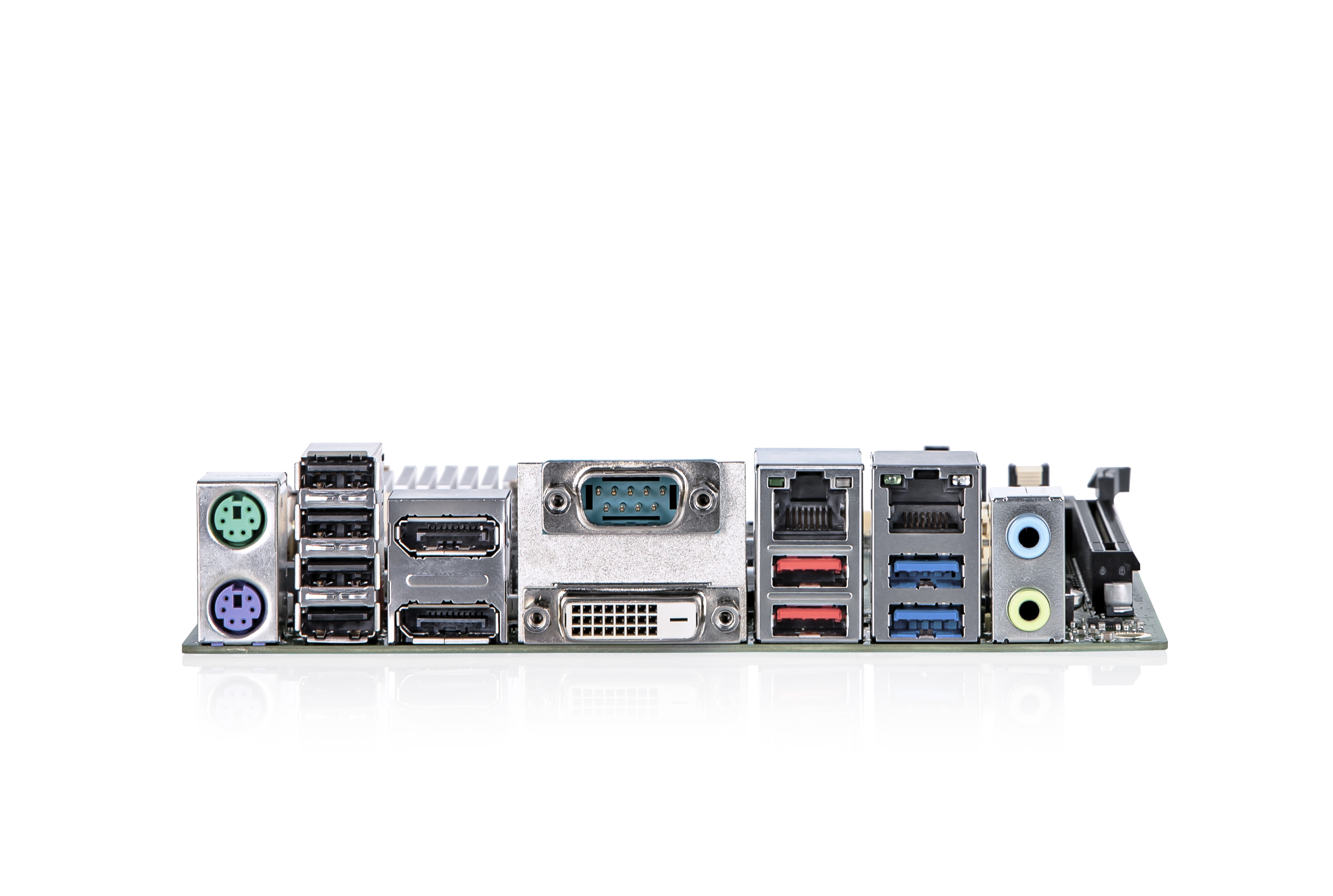

D3633-S mITX

Industrial Motherboard supporting the 8th/9th Gen Intel® Core™ i Processors
Mouseover Zoom loading...
Specifications
  • cTDP – Easy & flexible reduction of CPU TDP
  • Supporting Intel® AMT 12.0 / vPro
  • Dual Channel LVDS & eDP
  • M.2 SSD & Mini-PCIe Socket onboard
  • ATX PSU or Single 12 V Supply
Download Datasheet

The Motherboard D3633-S mITX offers the perfectly right-sized solution for all industrial needs and supports the powerful Intel® Core™ i9/i7/i5/i3 (8th/9th Gen) and the Intel® Pentium®/ Intel® Celeron® processor series. It is equipped with the highly performant Intel® Q370 Express Chipset and guarantees highest functionality on a small-sized surface with Intel® AMT 12.0 and vPro support, 2x Intel® GbE LAN and BIOS configurable PCI Express® Lane. It is designed and approved for enhanced operating temperature range up to 60 °C and for 24/7 continuous operation.



Benefits of Kontron motherboards:

  • Highest quality through German engineering and production
  • Strict lifecycle management and reliable product maintenance
  • Comprehensive feature and tool set
  • Excellent technical support
  • Beneficial total-cost-of-ownership

Features

Processor Intel® 8th & 9th Gen. Core™ i9 / i7 / i5 / i3 Processor Series
Intel® Pentium® / Intel Celeron® processor series
Chipset Intel® Q370 Express Chipset
Main Memory 2x DDR4 2666 SO-DIMM up to 64GByte
Graphics Controller Intel® UHD Graphics, DX12
Display 2x DP V1.2
1x DVI-D
Audio Controller Realtek® ALC671
Audio 5.1-channel, High Definition Audio Codec
Ethernet Intel i219LM & i210AT with 10/100/1000 MBit/s, AMT 12.0 / vPro Support
USB 4x USB 2.0, 2x USB 2.0 (by header)
2x USB 3.1 Gen1, 2x USB 3.1 Gen1 (by header)
2x USB 3.1 Gen2, 1x USB 3.1 Gen2 stick socket
Serial 1x RS232, 1x RS232/422/485 (by header)
Available I/Os 1x 8Bit GPIO (by header)
SATA 4x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI,
RAID 0/1/5/10
Expansion 1x M.2 Key-M PCIe (2242/2260/2280)
1x Mini PCIe (halfsize/fullsize)
PCIe x16: 1x Gen3, Support for lane split (8+8 or 8+4+4)
Power connector ATX Power Supply (24+4 Pin)
Input Voltage ATX (Multirail) or Single 12 V
BIOS AMI Aptio 5.x (UEFI) BIOS
Watchdog 3 Level HW Watchdog (BIOS POST / BIOS BOOT / OS)
Real Time Clock integrated; CMOS Battery buffered
Cooling 2x PWM fan (CPU/System)
Operating System MS Windows 10
Linux-64
Mechanical Dimensions Mini-ITX (170 x 170 mm / 6.7" x 6.7")
Operation Temperature 0°C-60°C
Humidity 5%-85%
Certifications cTÜVus acc. IEC62368-1, CE Class B Industrial Immunity, FCC-B verified

Downloads

Datasheets

Datasheet D3633-S mITX
[ datasheet-d3633-s-mitx.pdf, 894.21 KB, Jun.02.2021 ]

Manuals

Kontron FTP Server

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Tech Spec Sheet

Motherboard and SMARTCASE™ Tech Specs
[ tech-specs_motherboards-and-smartcase.pdf, 2.57 MB, Jul.28.2021 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

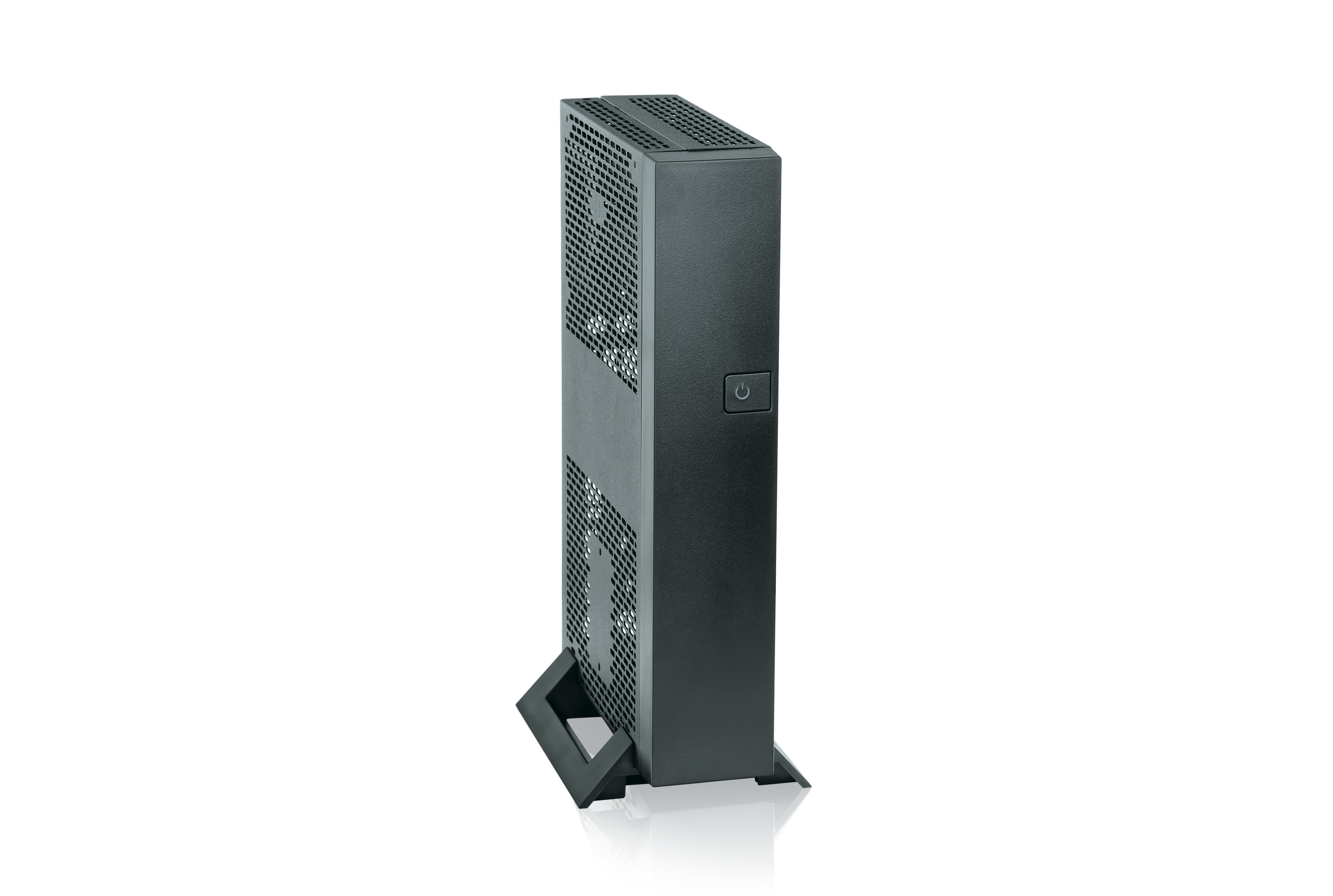

SMARTCASE™ S720
S26361-F5000-J003
SMARTCASE™ S720 IPC mini-ITX Chassis incl. illuminated power button, HDD cage w. 4 pin PWM fan, SATA and drive power cable, stands (horizon./vert.), wall mount, Chassis intrusion, lockable DC-In incl. specific EMC filter (12V/60W max.) non branded!
SMARTCASE™ I720
S26361-F5000-J007

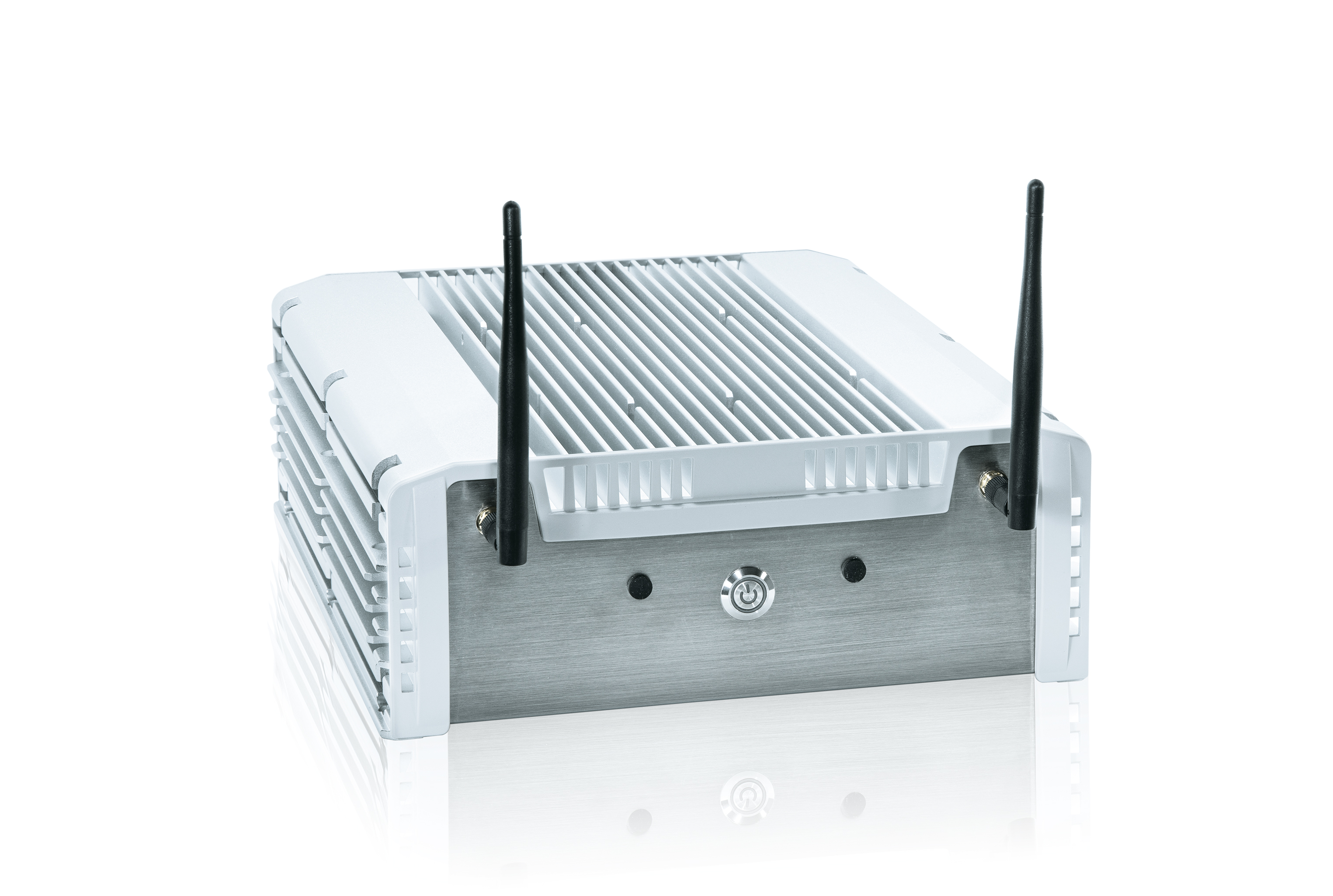

SMARTCASE™ I720

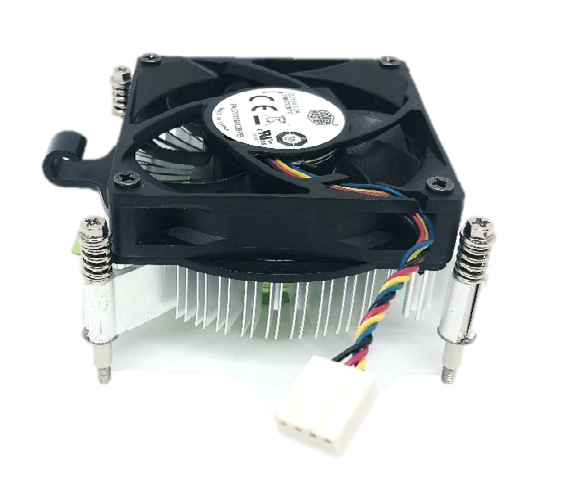

Active Cooler LGA1151
S26361-F5000-C011
Active Cooler LGA1151 Low-rise active cooler suitable for D363x-S and related SMARTCASE™ S720 chassis
Internal PSU for chassis Kit
S26361-F5000-P004
Internal PSU for chassis Kit AC Adapter, 12V / 5.4A, 65W, low profile extension card format
COM Cable "long"
S26361-F5000-K010
COM Cable \ with fullsize slot bracket
Risercard
S26361-F5000-R006
Risercard 1 x PCIe x4
4 x COM Extension Board
S26361-F5000-R010

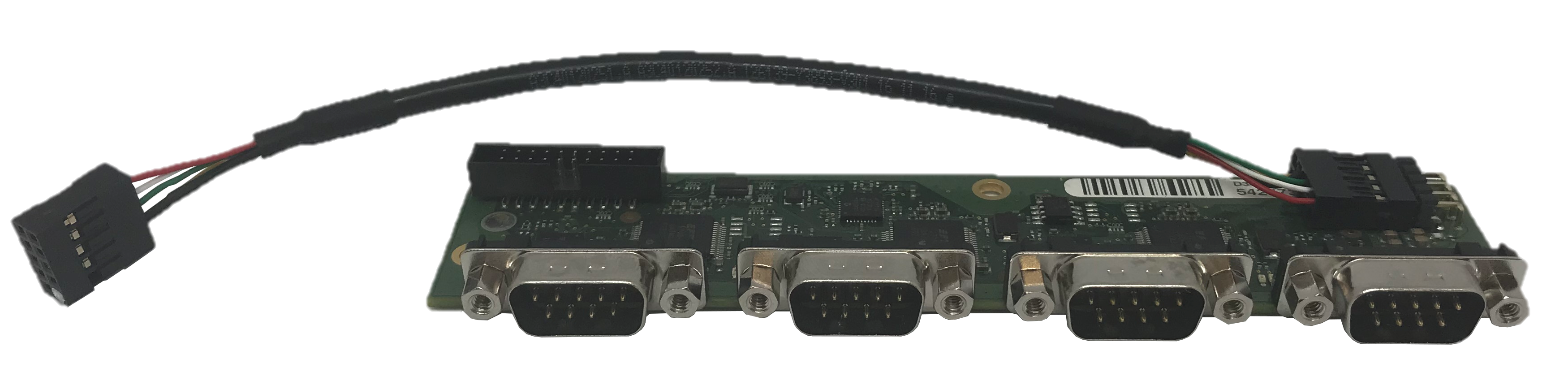

4 x COM Extension Board provides 4x COM RS232 ports (incl. RS422/485- if application software is installed)
PCIe x1 LAN Controller
S26361-F5000-R011
PCIe x1 LAN Controller Broadcom LAN controller w/o DASH; incl. FH&LP-Slotbracket
Mini-PCIe to M.2 2230 Converter for WLAN/BT
S26361-F5000-M003

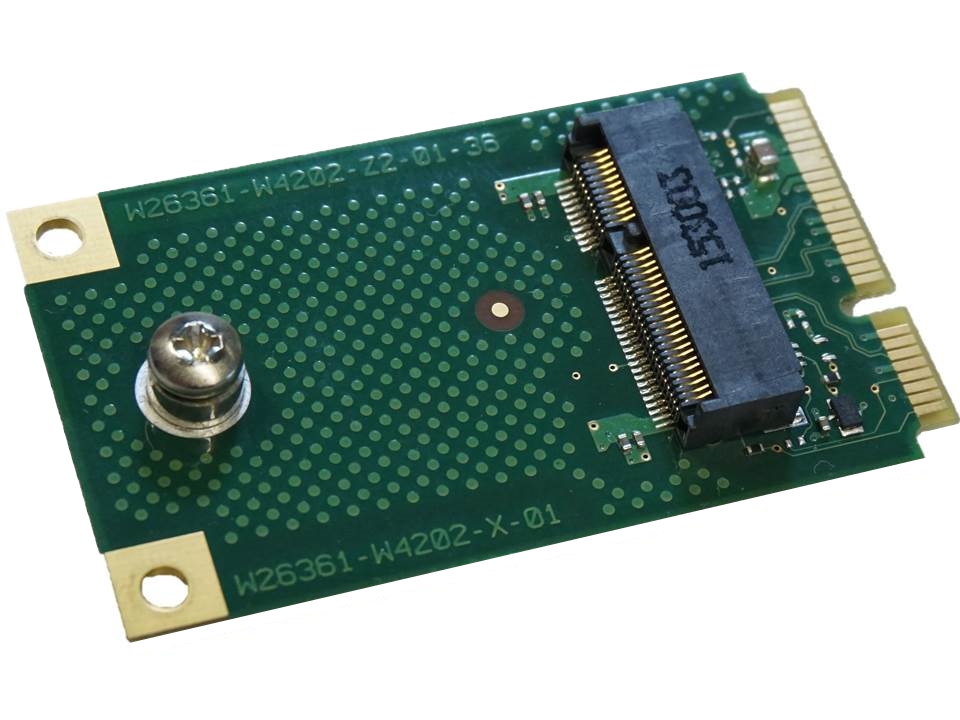

Mini-PCIe to  M.2 2230 Converter for WLAN/BT all Boards with fullsize Mini-PCIe socket
