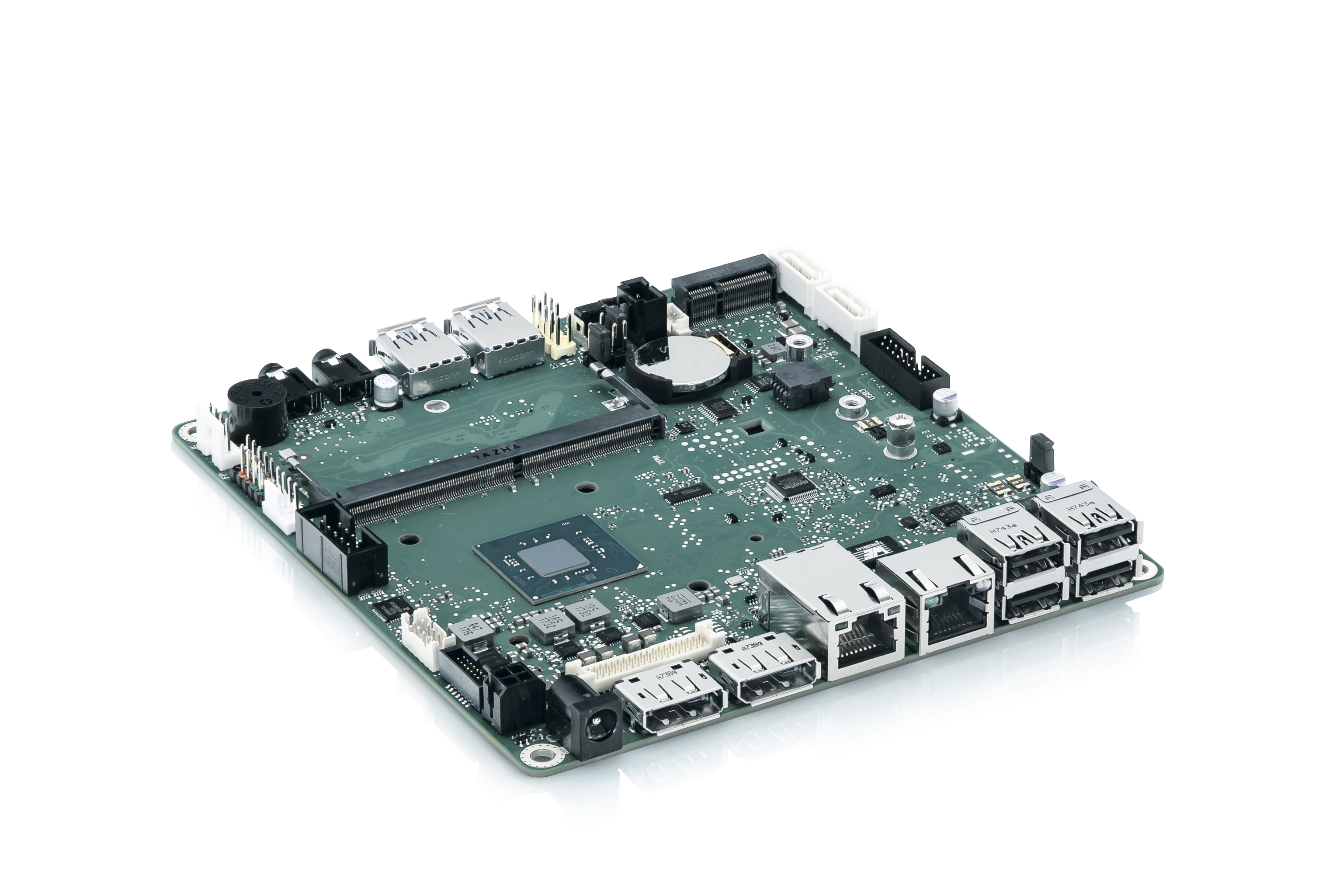

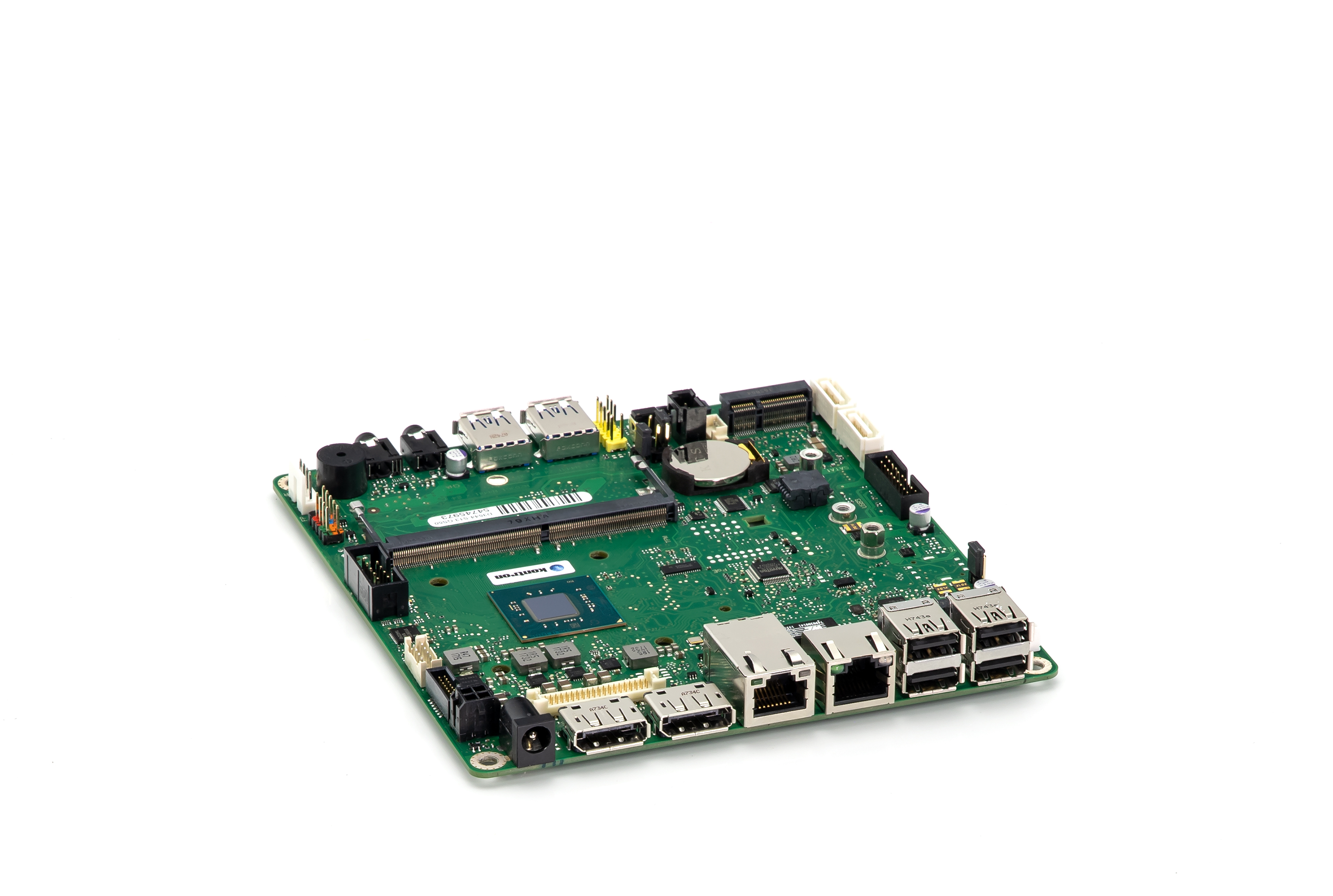

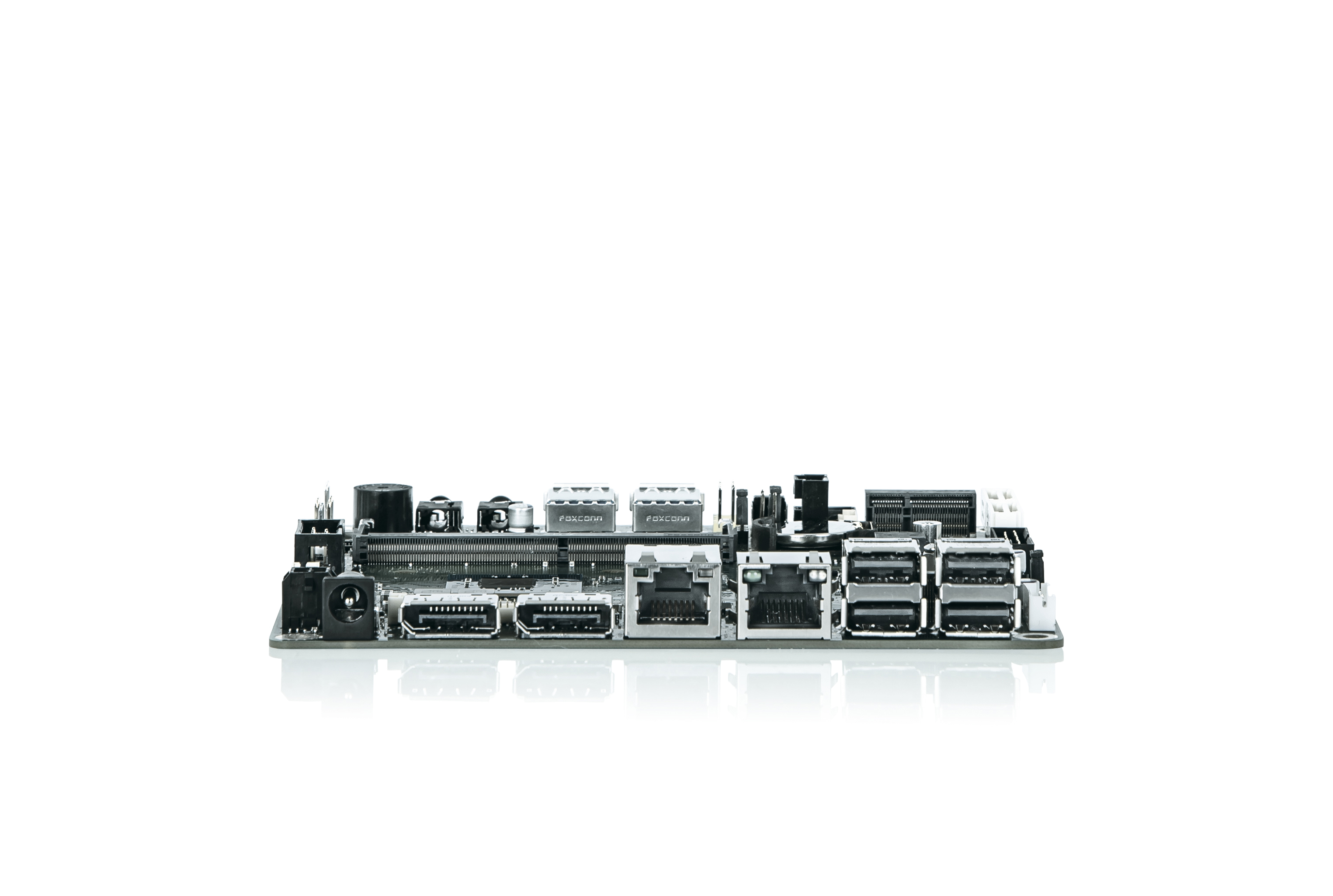

D3544-S mSTX

Industrial Motherboard supporting the Intel® Celeron® Processors J4005/J4105 & Intel® Pentium® Silver Processor J5005
Mouseover Zoom loading...
Specifications
  • Dual DP V1.2a, LVDS, eDP
  • M.2 SSD & M.2 WLAN Slots onboard
  • HW Watchdog & GPIO
  • WideRange DC Power Supply (8V-24V)
  • Designed for Fanless Operation
Download Datasheet

The Industrial Motherboard D3544-S mSTX supports the Intel® Celeron® Processors J4005, J4105 as well as the Intel® Pentium® Processor J5005. Despite the small form factor, the D3544-S mSTX provides best graphic performance with DP connectors for up to 4K displays. It offers highest functionality supporting 24/7 operation mode and an enhanced operating temperature range from 0°C to 60°C on low power consumption.

You are looking for a mini-ITX motherboard supporting the same Intel® processors? Discover now the sibling D3543-S mITX!



Benefits of Kontron motherboards:

  • Highest quality through German engineering and production
  • Strict lifecycle management and reliable product maintenance
  • Comprehensive feature and tool set
  • Excellent technical support
  • Beneficial total-cost-of-ownership



Features

Processor Intel® Celeron® Processor
J4005/J4105 & Intel® Pentium® Silver Processor J5005
Chipset SoC
Main Memory 1x DDR4 2400 SO-DIMM up to 16GByte
Graphics Controller Integrated Intel® UHD Graphics 600/605
Display 2x DP V1.2a
Audio Controller Realtek ALC671
Audio 5.1-channel; High Definition Audio Codec
Ethernet 1x Intel® i210 with 10/100/1000 MBit/s,
1x Realtek RTL8111G with 10/100/1000 Mbit/s
USB 4x USB 2.0, 1x USB 2.0 (by header)
2x USB 3.1 Gen1, 2x USB 3.1 Gen1 (by header)
Serial 1x RS-232 (limited feature set, by header);
1x RS-232/RS-422/RS-485 (by header)
Available I/Os 1x 8Bit GPIO (by header)
SATA 2x Serial ATA III 600 Interface (up to 6GBit/s), NCQ, AHCI
Expansion 1x M.2 Key B socket (2242/2260/2280); PCIe/SATA, 1 lane
1x M.2 Key-E (2230)
Power connector External / Internal DC-In
Input Voltage 8V-24V
BIOS AMI Aptio 5.x (UEFI) BIOS
Watchdog 2Level HW Watchdog (BIOS BOOT / OS)
Real Time Clock integrated; CMOS Battery buffered
Cooling 1x PWM-Fan
Passive Cooling supported
Operating System Windows 10
Linux-64
Mechanical Dimensions Mini-STX (140 x 148 mm / 5.5" x 5.8")
Operation Temperature 0°C-60°C
Humidity 5%-85%
Certifications cTÜVus acc. IEC62368-1 (upon request), CE Class B, FCC-B verified

Downloads

Driver Updates

BIOS Updates

Datasheets

Datasheet D3544-S mSTX
[ d3544-s-mstx_datasheet.pdf, 2.33 MB, Nov.17.2022 ]

Manuals

Kontron FTP Server

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

White Papers

Modules and Motherboards WP [restrictions apply]

Tech Spec Sheet

Motherboard and SMARTCASE™ Tech Specs
[ productoverview_motherboards.pdf, 6.05 MB, Apr.15.2024 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Variants

D3544-S1
D3544-S1 Dual-Core J4005 SoC (2.70 GHz/10W)
D3544-S2
D3544-S2 Quad-Core J4105 SoC (2.50 GHz/10W)
D3544-S3
D3544-S3 Quad-Core J5005 SoC (2.80 GHz/10W)

Accessories

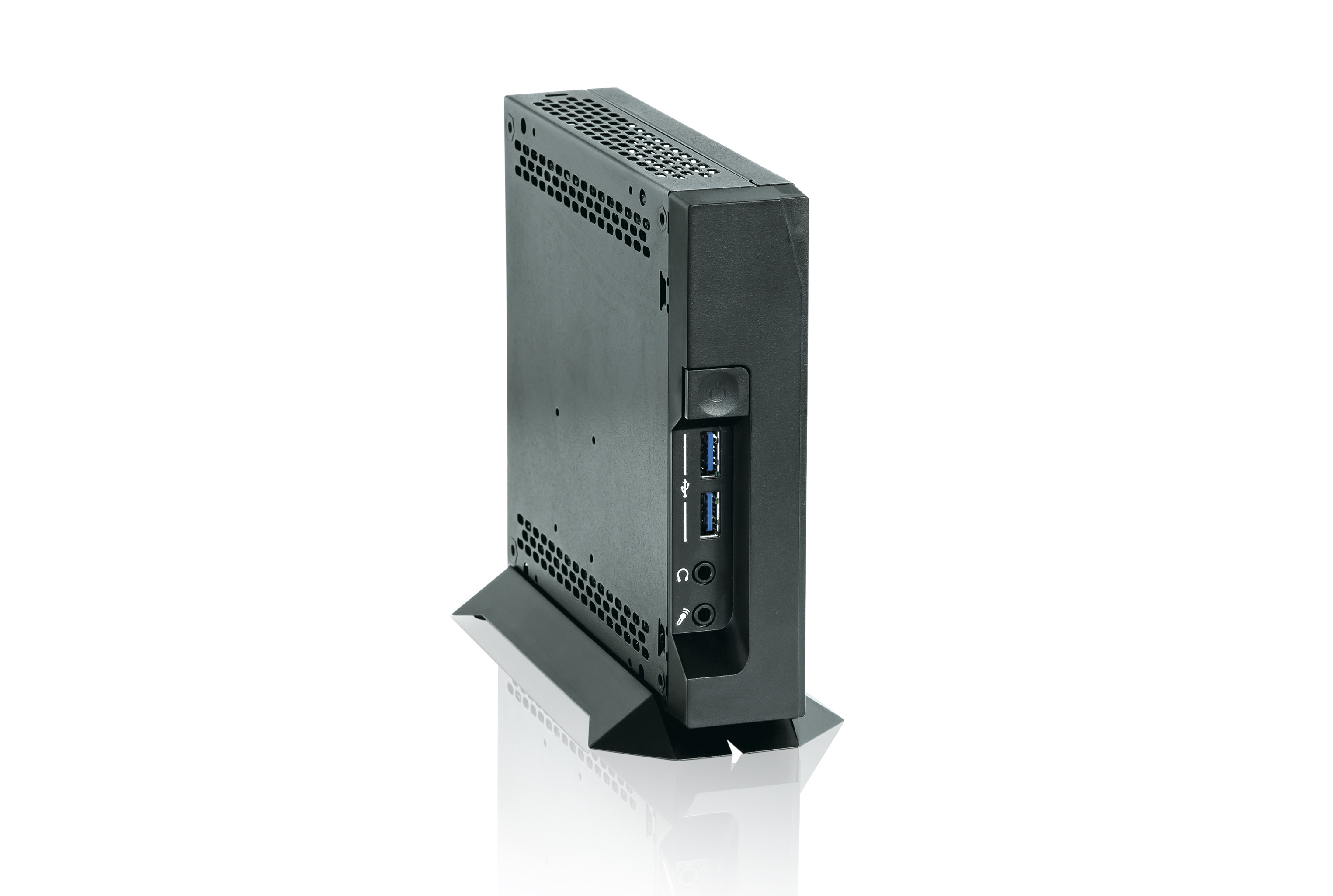

SMARTCASE™ S500
S26361-F5000-J004
SMARTCASE™ S500 IPC mini-STX Chassis incl. illuminated power button, stands for vertical/horizontal position, prepared for easy WLAN integration, non branded!
Active Cooler 10W GLK
S26361-F5000-C009
Active Cooler 10W GLK Active cooler suitable for D3544-S and related SMARTCASE™ S500 chassis
Passive Cooler 10W GLK
S26361-F5000-C010
Passive Cooler 10W GLK Passive heatsink suitable for D3544-S and related SMARTCASE™ S500 chassis
AC Adapter
S26361-F5000-P006
AC Adapter 19V / 3.42A, 65W - w/o power cord
DrivePowerCable
S26361-F5000-K001
DrivePowerCable Drive Power Cable for SATA HDD and SATA slimline DVD (length 200 + 200 mm)
COM Cable short w/o bracket
S26361-F5000-K007
COM Cable short w/o bracket w/o slot bracket, length = 120mm; new 2mm pitch internal connector
USB Typ-C Extension Cable
S26361-F5000-K008
USB Typ-C Extension Cable USB3.1 gen1, length = 140mm; max. load 5V/800mA
COM Cable "long"
S26361-F5000-K010
COM Cable \ with fullsize slot bracket

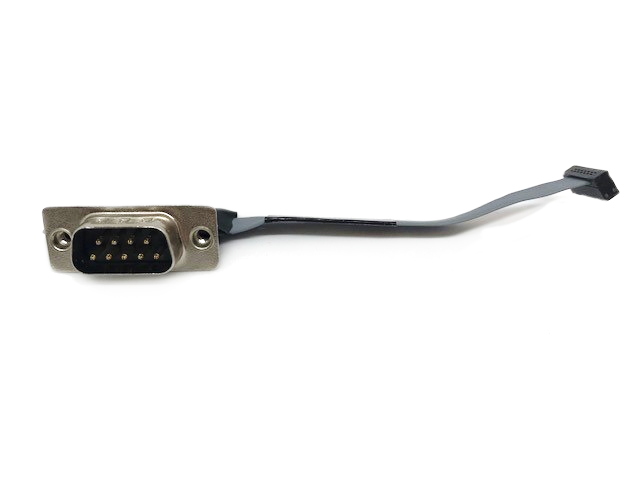

Second COM Cable active
S26361-F5000-K011
Second COM Cable active short w/o bracket
4 x COM Extension Board
S26361-F5000-R010
4 x COM Extension Board provides 4x COM RS232 ports (incl. RS422/485- if application software is installed)

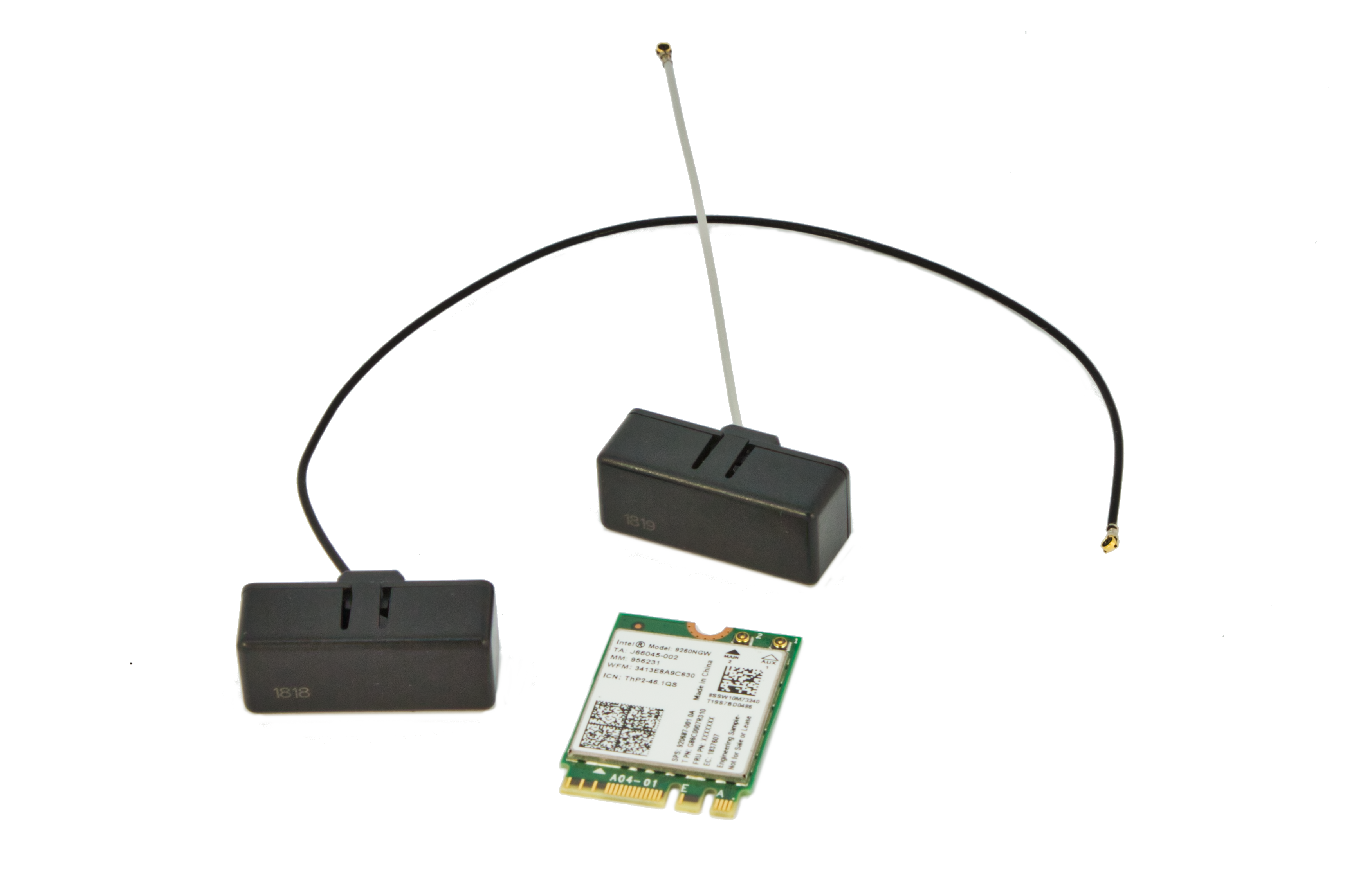

WLAN Kit for SMARTCASE™ S500/S520
S26361-F5000-W002
WLAN Kit for SMARTCASE™  S500/S520 WLAN Module Intel 9260 NON VPRO, left(gray)/right(black) Antenna (incl. cable)
WLAN Kit for SMARTCASE™ S500/S520
S26361-F5000-W005
WLAN Module Intel 9260 NON VPRO, left(gray)/right(black) Antenna (incl. cable)
Wall Mount Bracket for SMARTCASE™ S500
S26361-F5000-X001
Wall Mount Bracket for SMARTCASE™ S500 20x Bracket (for 10 chassis) incl. Screws
VESA mount SMARTCASE™ S5xx
S26361-F5000-X002
VESA mount SMARTCASE™ S5xx "E-Line bracket"
DC-In Holder for SMARTCASE™ 500
S26361-F5000-X003
DC-In Holder for SMARTCASE™ 500 10 x Holder (for 10 chassis) incl. Screws
