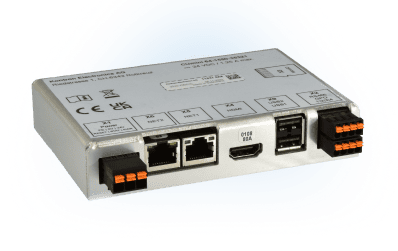

CU Control Unit Mini 6x

Robust industrial PC based on NXP Arm® i.MX8M Plus
  • NXP Arm® i.MX8M Plus Quad Core, 1.6 GHz
  • Multiple serial interfaces for various requirements
  • Operating System: Embedded Linux (Yocto Distribution), Optional CODESYS® SoftSPS
Download Datasheet


CPU NXP Arm® i.MX8M Plus Quad Core, 1.6 GHz
DRAM DDR4 1 GByte, soldered (up to 4 GByte)
eMMC 4 up to 32 GByte
NOR-FLASH 2 MByte (up to 16 MByte)
FRAM 32 kByte (up to 512 kByte)
SD CARD microSD slot (up to SDXC-format)
USB 2x USB 2.0 (Host)
Ethernet 2x Ethernet (10/100/1000)
independent, 1x TSN capable
Serial Ports 1x RS485 (isolated)
2x GPO
Display 1x HDMI 1.4
Security TPM
Real Time Clock RTC with SuperCAP (>5 days)
System 2x status LED, Reset-button
Construction IP20, aluminium
Cooling Fanless
Mounting For mounting on 35mm mounting rail acc. to EN 60715
Certification CE (UL/cUL planed)
Power Supply 24 VDC +/- 20 % (optional PoE)
EMC EN 61000-6-2 (immunity),
EN 61000-6-4 (emission)
Operating Temperature 0 °C … +55 °C (optional -20 °C … +55 °C)
Storage Temperature -20 °C … +70 °C
SHOCK (EN 60068-2-27) 15G 11ms (half sine)
VIBRATION (EN 60068-2-6) 10-500Hz 1G/3 axis
Humidity 10%-90%, non-condensing
Altitude Up to 9.800 ft (3000 m)
Operating System Embedded Linux (Yocto Distribution)
SoftPLC (Option) CODESYS® V3
Protocols (Option) EtherCAT, Modbus TCP/RTU, Profinet,
Ethernet IP, OPC UA, IIoT Libraries
(MQTT, HTTPS; Azure, AWS, Google..)
