cPCI Serial 4U 84HP 9 Slots Datasheet
1.02 MB | March 26, 2026

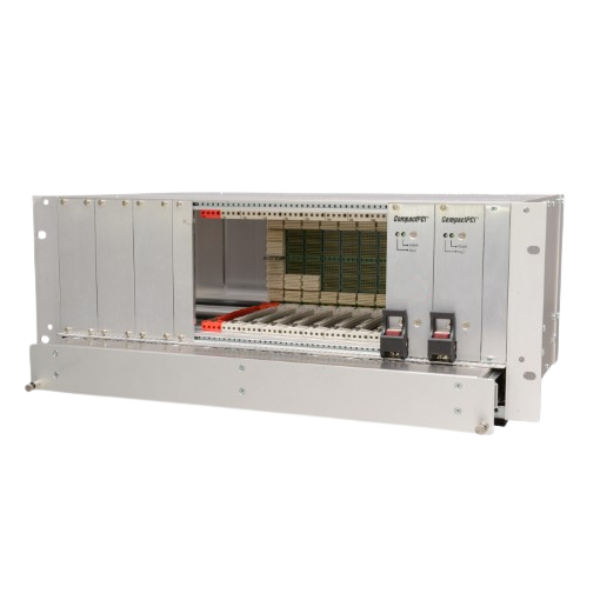

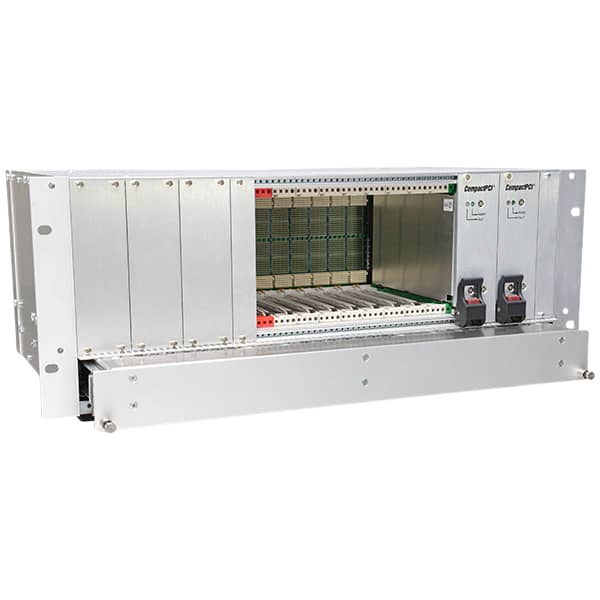

cPCI Serial 4U 84HP 9 Slots
A high-density modular system designed for demanding embedded applications
- Form Factor, Slots & Mounting: 4U height, 84 HP width; 9 slots on 3U backplane (system slot left, no rear I/O); 19" rack-mountable
- Backplane Topology: Single-star PCIe Gen3 and Gigabit Ethernet

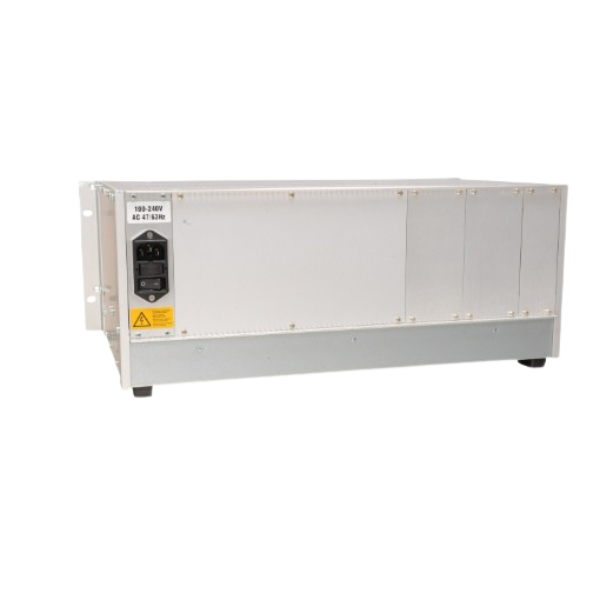

- Power Supply & Electrical: Dual 300 W CompactPCI Serial supplies; input 90–264 VAC, 47–63 Hz; output +12 V @ 25 A, 5 V standby @ 2.5 A

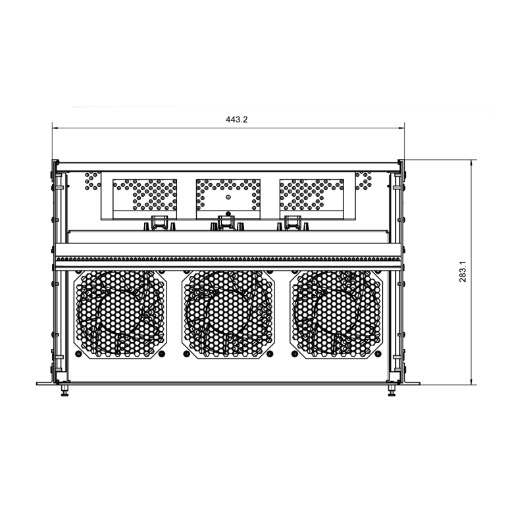

- Cooling & Airflow: 1U removable fan tray with 3 × 120 mm fans (12 V, 120 CFM, 48 dB(A)); airflow bottom to top

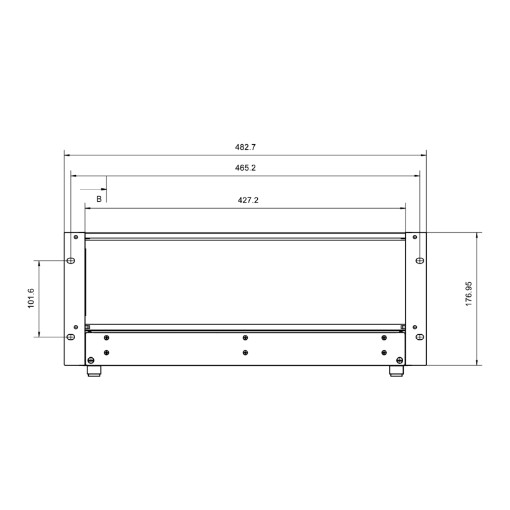

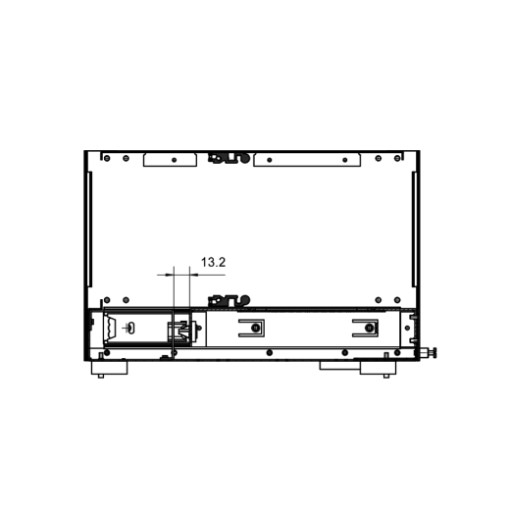

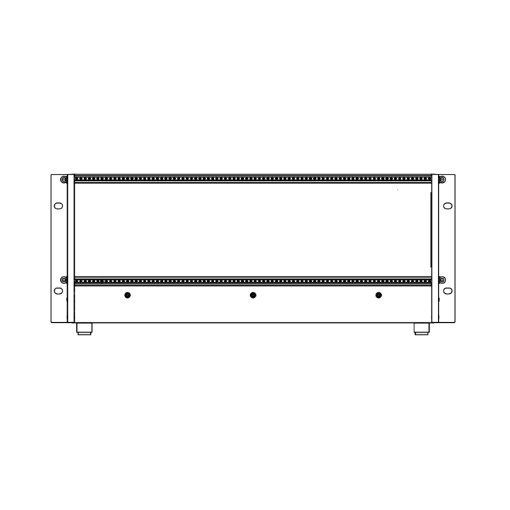

- Compliance, Dimensions & ID: IEEE 1101.1, 1101.10/11; IEC 60297-3-101/102/103; dimensions (D × H × W) 483.2 × 177.8 × 420.2 mm; weight approx. 10 kg; part number LMH0000900
Product Information
The cPCI Serial 4U 84HP 9 Slots chassis is a high-density modular system designed for demanding embedded applications. It features a 3U, 9-slot PCIe Gen3 backplane with a single-star topology, powered by two 300W cPCI Serial power supplies. This configuration ensures robust performance and scalability for complex systems.
The cPCI Serial 4U 84HP 9 Slots chassis offers a compact yet powerful solution for embedded systems requiring high-density configurations. With its dual 300W power supplies and efficient cooling system, it ensures reliable operation in demanding environments. The chassis is fully compliant with industry standards, making it suitable for a wide range of applications.
Technical data
| Features | High-density 9-slot configuration in a 4U chassis Dual 300W power supplies for enhanced reliability Efficient bottom-to-top airflow cooling system Compliant with IEEE and IEC standards 19"" rack-mountable for easy integration Suitable for demanding embedded applications |
|---|
