cPCI Serial 4U 42HP 7 Slots Datasheet
1.39 MB | March 26, 2026

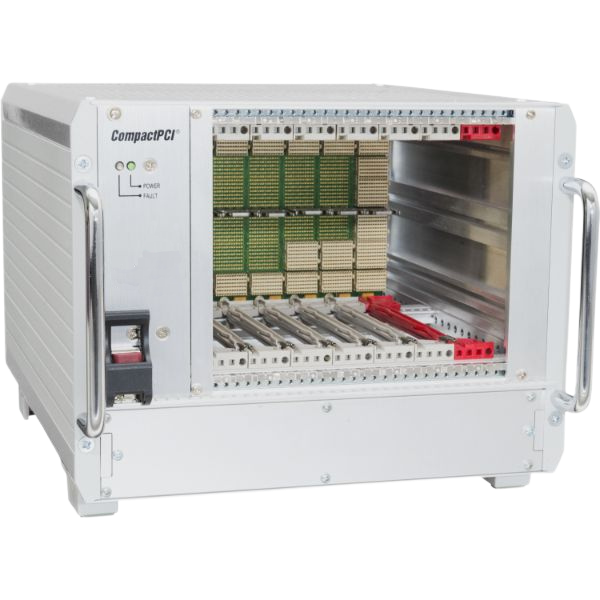

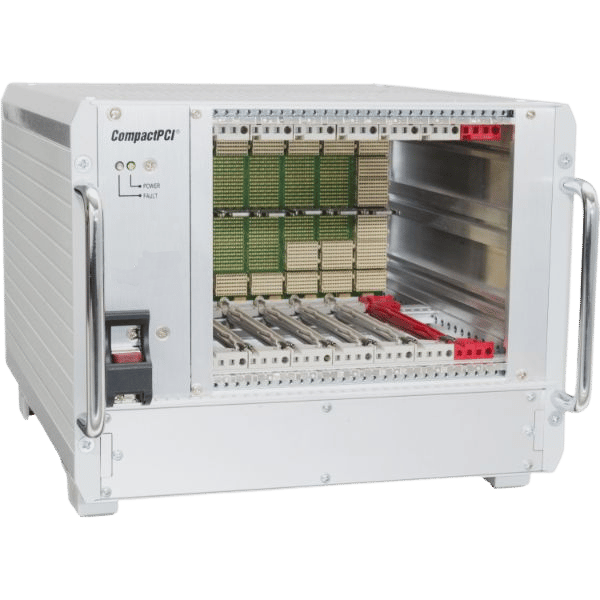

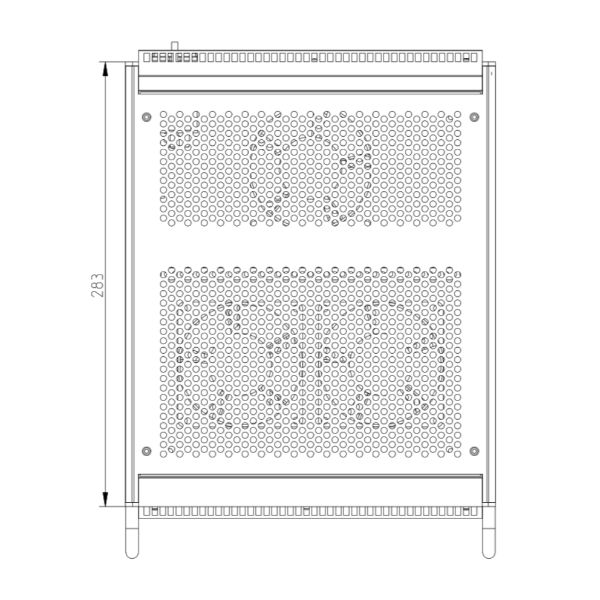

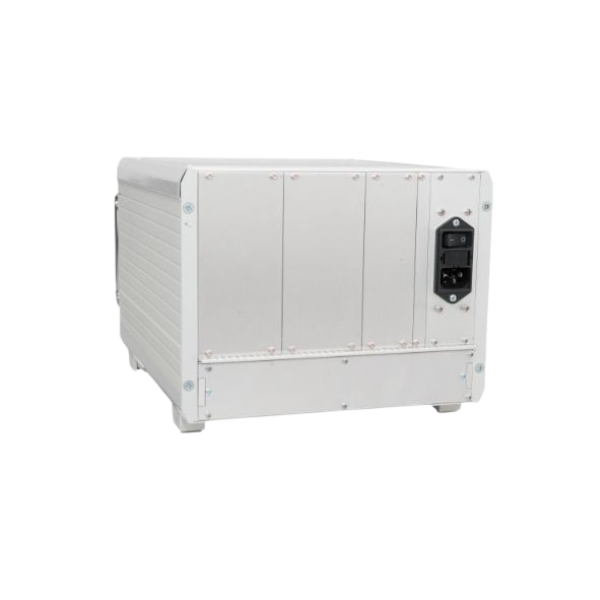

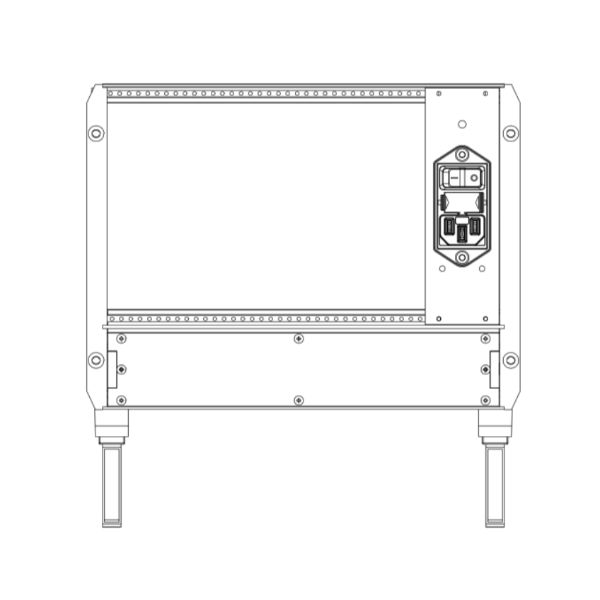

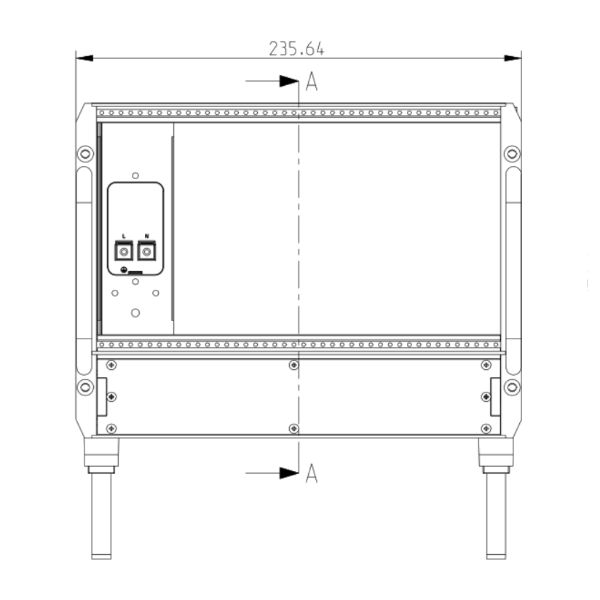

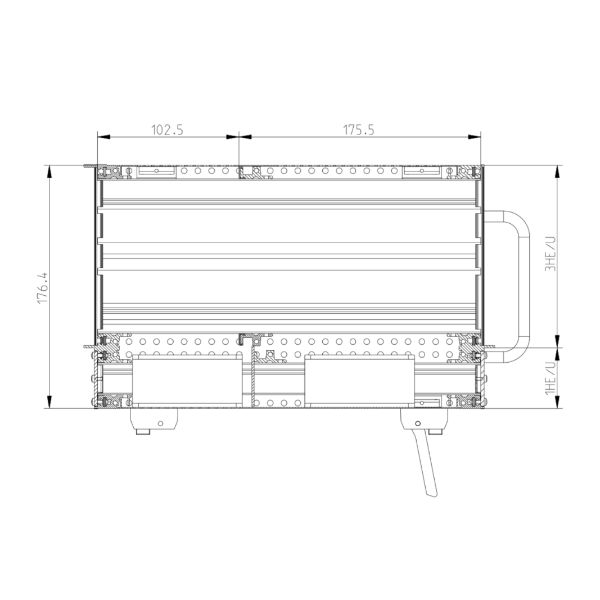

cPCI Serial 4U 42HP 7 Slots
A high-performance CompactPCI Serial (PICMG S.0) system
- Form Factor & Slots: 4U height, 42 HP width; 7 slots on 3U backplane, system slot located on the right
- Backplane Topology: Single-star Ethernet / PCIe Gen3 topology
- Power Supply & Input: 300 W CompactPCI Serial AC; input 90–264 VAC, 47–63 Hz
- Output Voltages / Currents: 12 V @ 25 A; 5 V standby @ 2.5 A
- Cooling & Airflow: Fixed fan tray with 2 fans (12 V); airflow bottom to top
Product Information
The cPCI Serial 4U 42HP 7-slot chassis is a high-performance CompactPCI Serial (PICMG S.0) system, incorporating a 3U 7-slot PCIe Gen3 backplane in single-star topology and powered by a 300 W CompactPCI Serial power supply.
CompactPCI Serial (CPCI S.0) succeeds classic CompactPCI (PICMG 2.0) by replacing parallel bus architectures with serial, point-to-point links for PCIe and Ethernet. Hartmann’s cPCI Serial systems combine modular, rugged design with high throughput capabilities via single-star (or optionally more advanced) topologies.
This 4U, 42 HP chassis supports seven plug-in cards, enabling complexity and functionality in a compact footprint. With full compliance to IEEE and IEC standards and tested resilience under vibration and shock environments, it is suited for industrial and rugged contexts. The integrated 300 W power supply ensures strong power delivery with margin, while dual fans and bottom-to-top cooling maintain system temperature stability.
Technical data
| Features | Standards / Compliance: IEEE 1101.1, IEEE 1101.10/11; IEC 60297-3-101 / -102 / -103 Rugged / Environmental: Vibration and shock per MIL-STD-810F (514.5, 515.5) Applications / Ratings: Conforming also to railway class requirements (EN 50155 / EN 1373) for shock/vibration Mounting: Desktop style (assembled, wired, tested) Part Number: LMH0000820 7-slot 3U backplane with PCIe Gen3 and Ethernet in single-star topology 300 W NPCI Serial power supply for robust board support Dual fan, bottom-to-top cooling for effective air circulation Standards-compliant design: IEEE, IEC for mechanical and interoperability requirements Rugged performance: vibration, shock, railway standards support Desktop-ready, fully assembled, wired and tested delivery Flexibility: alternative backplanes or configurations available on request |
|---|
