cPCI Serial 3U AC 300W Datasheet
2.85 MB | March 26, 2026

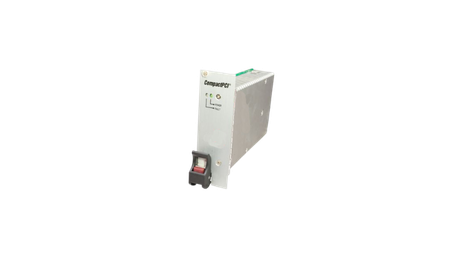

cPCI Serial 3U AC 300W
The cPCI Serial Power Supplies are highly reliable, plug-in power sources for state-of-the-art CompactPCI Serial systems designed by Hartmann Electronic
- Fully compliant with PICMG CPCI-S.0 specification
- Single +12 V output rail plus 5 V standby
- Wide AC input (90–264 VAC) with PFC
- High efficiency (~90 % typical)
- Compact 3U × 8HP plug-in format
Product Information
These CompactPCI Serial supplies support the PICMG CPCI-S.0 specification, offering modern serial-bus power architecture for embedded systems with high availability demands. Their single +12 V rail design, efficient AC input stage and robust plug-in form factor make them suitable for industrial, telecom and defense applications.
Technical data
| Features | Wide-range AC input (90–264 VAC) with PFC Air-cooled 3U form factor (3U × 8 HP) depth 160 mm Outputs: 12 V/25 A (300 W version) + 5 V Standby/2.5 A Efficiency typical ~90% at 230 VAC Operating temperature –40 °C to +70 °C (derated to 60%) Storage temperature –40 °C to +85 °C Connectors: FCI 51939-667LF (3U) or FCI 51940-473/473LF per spec. |
|---|
