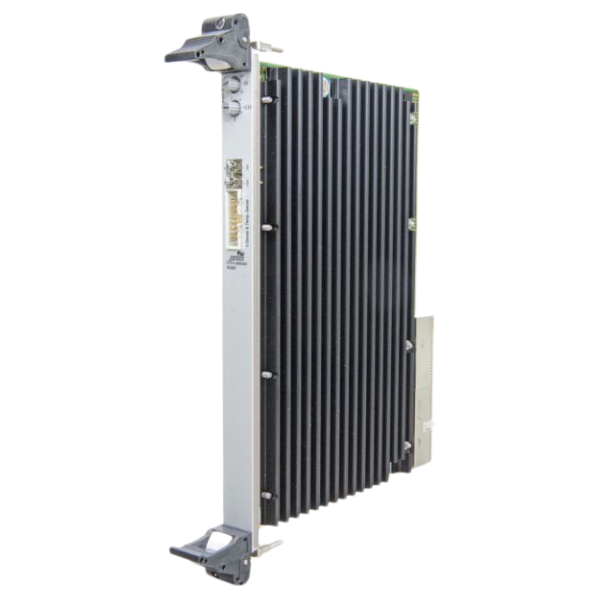

cPCI 6U Load Board
The cPCI 6U Load Board is a test card designed to simulate resistive loads on CompactPCI systems, both electrically and thermally. It ensures reliable power and thermal testing with automatic shutdown if the board overheats.
Specifications
- Configurable resistive load on +5 V, +3.3 V, +12 V, –12 V rails
- Air-cooled or conduction-cooled variants
- Automatic shutdown at ~120 °C
- Voltage and temperature sensing via front-panel connectors
- Automatic reactivation after cooling
- Compact 6U, 4HP format
- Suitable for functional and thermal validation
The cPCI 6U Load Board provides precise resistive load simulation across multiple voltage rails in a 6U format. It enables engineers to test power supply capacity and thermal behavior under realistic conditions. The board features automatic over-temperature shutdown and voltage/temperature sensing for detailed system analysis.
Features
| Features | Form Factor: 6U Slot Pitch: 4HP (20.32 mm) Function: Simulates resistive loads on cPCI systems (electrical and thermal) Cooling: Air-cooled (with heatsink) or conduction-cooled Permissible Current Loads: • +5 V: 0 A … 8.25 A in 0.55 A steps • +3.3 V: 0 A … 10.36 A in 0.7 A steps • +12 V: 1 A (ON/OFF) • –12 V: 1 A (ON/OFF) Control Voltage: 5 V required Voltage & Temperature Measurement: • 4 PTC resistors (front bottom/top) • 2 × 8-pin front header for voltage & temperature sense lines • Optional DVM plug-on board Thermal Protection: Automatic shut-off at 120 °C ± 5 K; re-energizes after cooling Part Number: LXH0000800 |
