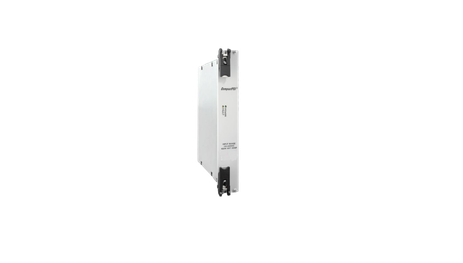

cPCI 6U DC 350W
The cPCI 6U DC 350W is a CompactPCI (cPCI) power supply module designed for DC input operation, delivering up to 350 W of power in a 6U form factor.
Specifications
- Hot-swap capable, redundancy and current share support
- Wide DC input (18–72 VDC)
- Four output rails with high current capacity
- Over-temperature protection and status signaling
- Air cooling with required minimum airflow
- CompactPCI format with front extractor handle
- Fully compliant with PICMG 2.11 standard
It supports hot-swap, redundancy, and current sharing, fully compliant with PICMG 2.11 power supply standards.
The cPCI 6U DC 350W module provides reliable DC power for CompactPCI systems used in industrial and embedded environments. Supporting a wide DC input range of 18–72 V, it is suitable for telecom, transportation, and defense applications. Its high output capability, redundancy, and hot-swap functionality ensure stable and continuous operation. Integrated protection features and clear LED indicators enhance system safety and diagnostics.
Features
| Features | Form Factor: 6U × 8HP, CompactPCI format, 160 mm deep Input: 18–72 VDC wide range Efficiency: ~85 % typical Output Rails & Currents: • +5 V: 40 A • +3.3 V: 40 A • +12 V: 10 A • –12 V: 2 A Operating Temperature: –40 °C to +70 °C (with derating) Storage Temperature: –40 °C to +85 °C Cooling: Air cooling required; at least 400 LFM airflow Connectors: P47 (47-pin) for outputs/management Protection & Control: Hot-swap, redundancy, current share bus, over-temperature protection, “status” LED (bi-color) Part Number: D575.00354 |
Downloads
Datasheets
cPCI 6U DC 350W Datasheet
[ d575-00410.pdf, 1.83 MB, Dec.17.2025 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
