CP6930-RM Datasheet
1.12 MB | March 26, 2026
This product is not recommended for new designs.Replacement product: RES2404-PTP
CP6930-RM
Fully managed rugged 10Gigabit Ethernet Rack Mount Switch
- Leading edge Ethernet switching technology for harsh environments
- Fully managed non blocking switching & routing, IPv6 compliant
- 6x 10 Gigabit Ethernet SFP+, 2x 1GbE SFP, 12x (24x) 10/100/1000Base-T
- Rugged & modular concept for easy maintenance
- SNMP, IPMI, Command Line, Web Interface
10 Gigabit/s State-of-the-art 19 Inch Router & Switch

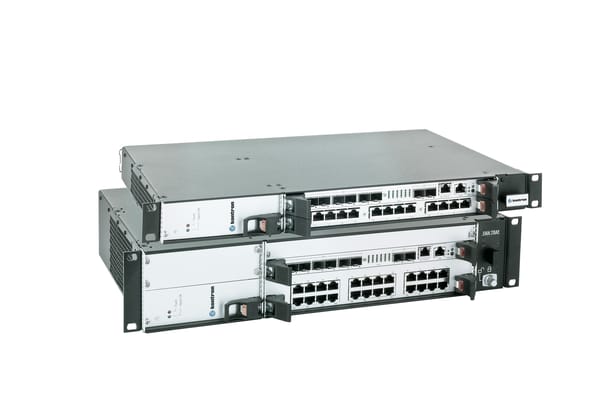

The rugged Kontron CP6930 RM is a 19 inch, 1U or 2U, non blocking fully managed L2/L3 10Gb Ethernet Switch and provides rich and versatile feature support by using highest integration of Ethernet switch silicon.
Technical data
| Additional | Various configurations available |
|---|---|
| Connection | 6x SFP+, 2x SFP, 12x (24x) RJ45 |
| Dimensions (H x W x D) | 19 Inch, 1U, 275 mm deep |
| Ethernet/Bridging Protocols | Include VLANs (802.1Q), Link Aggregation (802.3ad), Spanning Tree (802.1D, 802.1w),QoS(802.1p), Flow Control (802.3x), GVRP, GMRP |
| Function | Managed Router / Switch |
