New product

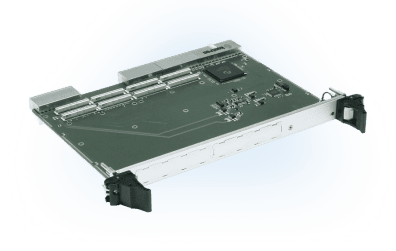

CP691
6U CompactPCI® Carrier Board for 2 PMC Modules
- Interface flexibility through a wide range of analog, digital, communication and counter PMC modules
- 66 or 33 MHz on PCI and/or PMC
- 32 bit bus master and PMC interface
- Rear I/O on Pn4
- INT A,B,C,D support
Product Information
The CP691 was created to provide system designers with a host for mounting the wide range of PMC modules available on the open market.
The CP691, which carries two PMC modules, has been designed to enable the user to take full advantage of the cost-effective solutions afforded by industrial PMC modules.
Use of the 6U CP691 provides the opportunity to utilize any two PMC modules simultaneously. This feature maximizes flexibility and versatility, enabling the operator to tailor the CP691 to meet precisely his specific input/output requirement.
Kontron’s CP691 is completely software transparent and therefore no driver is required to manage data transfer between the PMC module and the CPCI bus.
On this 6U carrier board you have the possibility to enable Rear I/O on the Pn4 connector of the PMC module. The upper PMC module is connected to J5 of the CPCI bus and the lower PMC module is connected to J3 of the CPCI bus.
Technical data
| PMC | 32 bit bus master and PMC interface |
|---|---|
| PCI Bus | 66 or 33 MHz on PCI and/or PMC |
| Height | 6U |
| Rear I/O | Yes |
