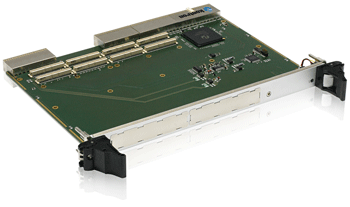

CP690

Dual PMC Carrier
Mouseover Zoom loading...
Specifications
  • Carries up to two PMC modules on 4 HP
  • 64-bit / 66 MHz PCI bus access
  • rear IO support for PMC modules
  • RTM available for dual PIM support
  • INT A,B,C,D support
Download Datasheet

The CP690 offers the flexibility to add special controller functions by widely available PMC modules to 6U systems. Also available is a RTM for the CP690, called CP-RIO6-90


If you need more information about sytems or PMC/XMC modules, please follow the links systems or PMC/XMC

Features

PMC 2x 64 Bit
PCI Bus 64 Bit/6 MHz
Height 6U
Rear I/O Yes

Downloads

Datasheets

Datasheet
[ cp690_20190816_datasheet.pdf, 2.12 MB, Aug.19.2019 ]

Manuals

CP690 User Guide
[ 20955_03_sk-man-cp690.pdf, 459.59 KB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Technical Info

Power Requirements for CPCI Boards
[ cpci_manual_technical-info_power-requirement.pdf, 38.05 KB, Apr.20.2023 ]

ESD Protection Guidelines
[ 29789_02_sk-man-esd_protection.pdf, 134.59 KB, Nov.27.2013 ]

Product safety & Implementation Guide
[ 1021-9142_r10_sk-man-psig.pdf, 719.94 KB, Nov.27.2013 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Variants

CP-RIO6-90
CP-RIO6-90

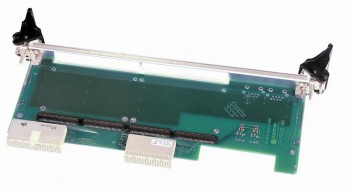

CP-RIO6-90 The Kontron CP-RIO6-90 provides dual PIM support for the CP690 / CP690HS PMC carrier board. more
