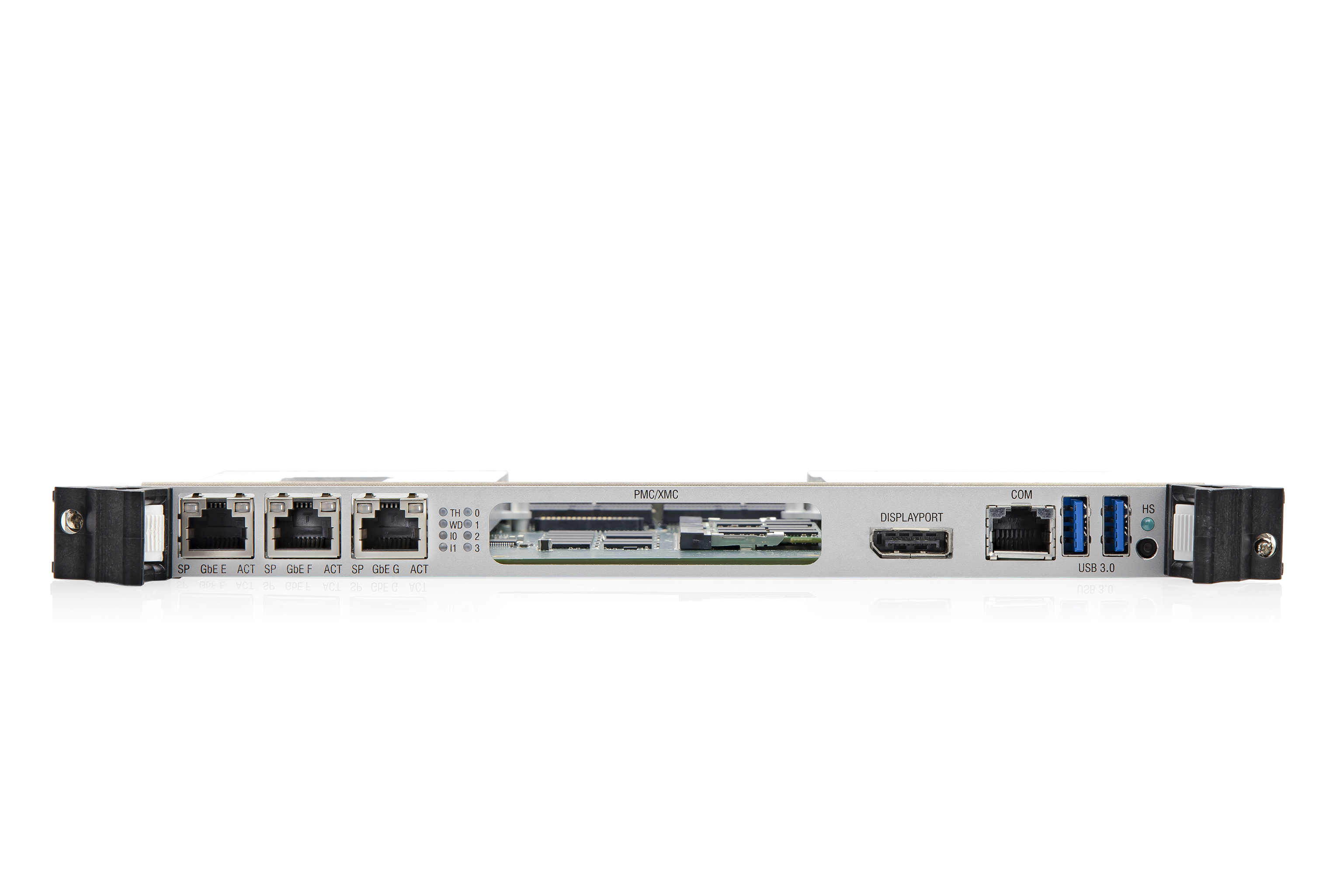

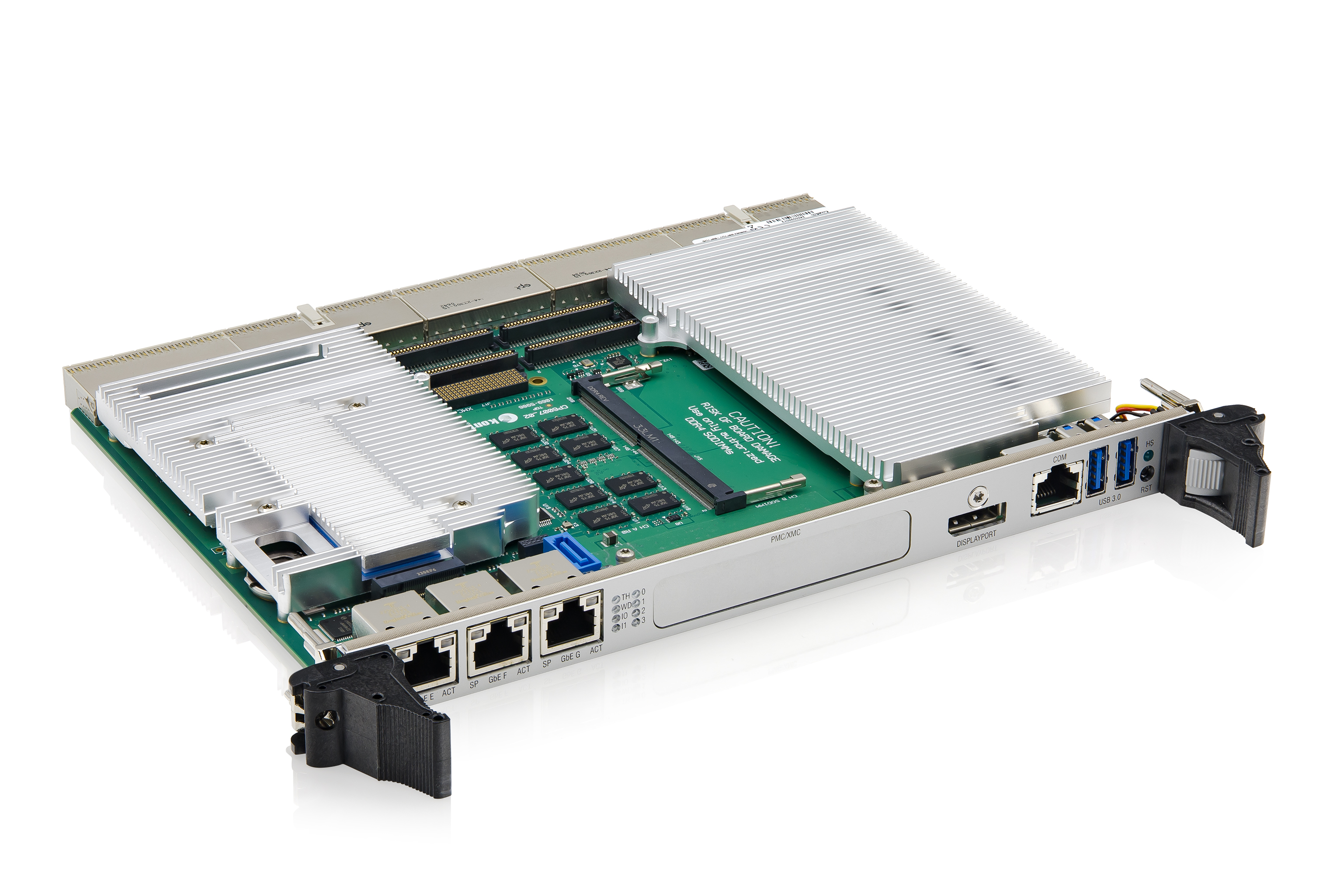

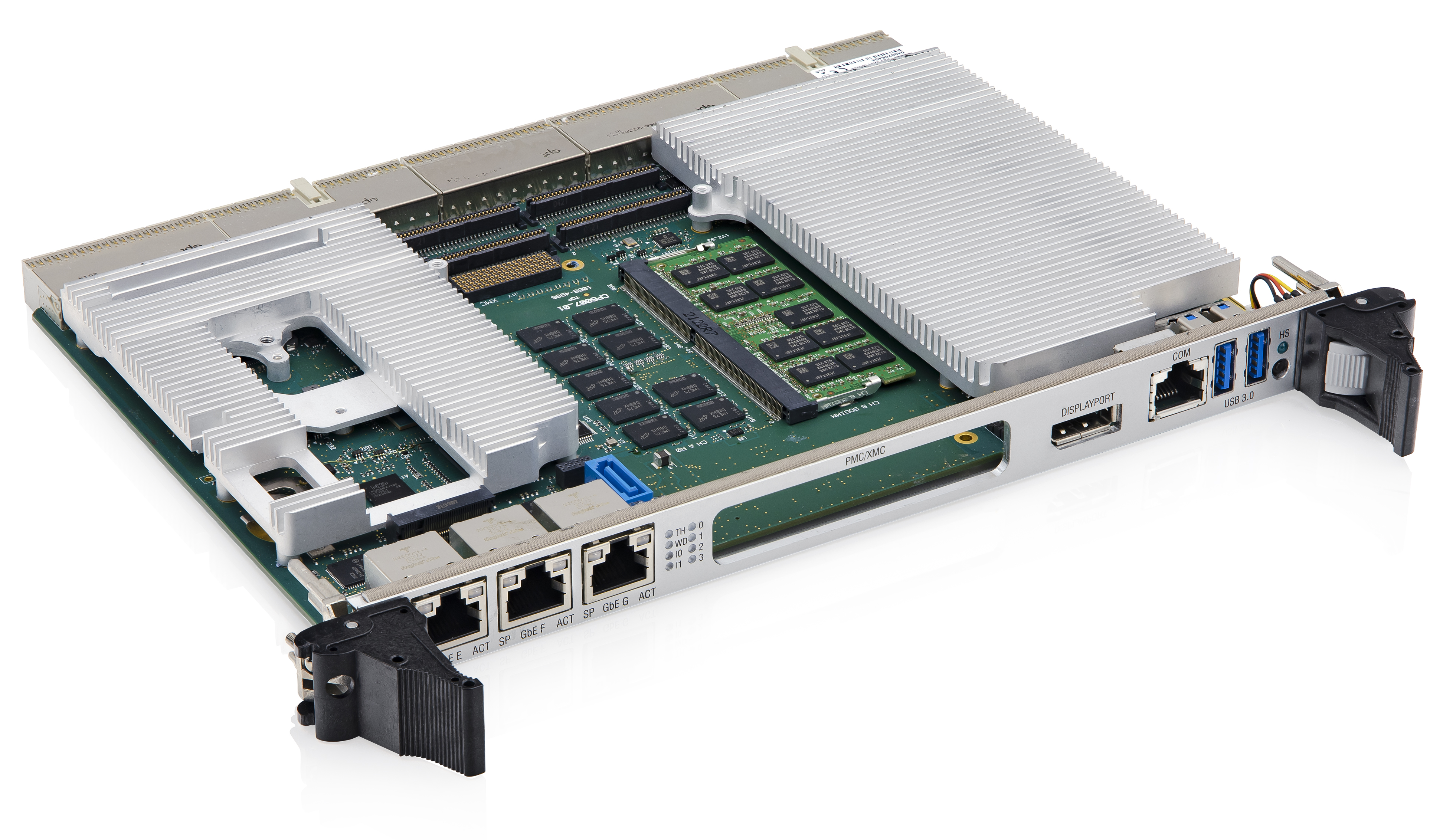

CP6007-SA
11th Gen Intel® Xeon® CompactPCI® Blade
- PICMG2.16 server and general computing
- 64GByte ECC memory, NVMe or SATA flash
- European design and production
- Proven CPCI eco system, 10 years availability
For long term programs in critical environments
Outstanding performance-per-watt
CP6007-SA is based on 6-core or 8-core 11th Generation Intel® Xeon® processors with 10nm technology, with outstanding performance-per-watt values. Its scalable power budget allows users to tailor the power dissipation to their requirements. 32GB soldered memory and the option for an additional 32GB SODIMM with ECC is provided.
Future-proof investment by virtualisation
CP6007 is well suited for advanced Multi-CPU server applications, built as virtual machines: A future proof investment.
Various extensions: storage, XMC, PMC, rear-I/O
CP6007-SA is prepared to operate with onboard industrial grade M.2 flash devices, NVMe or SATA, and with 2.5 inch SATA hard disks or SSDs to be placed onto a respective rear-I/O module or onto a separate HDD carrier KIT. CP6007-SA also features an XMC site according to XMC.3 supporting x8 PCI Express®, and alternatively a PMC site. Kontron's rear I/O module series is fully functional with CP6007-SA.
A safe choice
The well-established CompactPCI® eco system, combined with a long availability of Intel's processor family, and Kontron’s reliable technical support, make CP6007-SA a safe choice.
Technical data
| Processor | Intel® Xeon® W-11555MRE, 6 core, 12 MByte cache, 2.6 GHz 45 W (TDP),
2.1 GHz 35 W (cTDP) Intel® Xeon® W-11865MRE, 8 core, 24 MByte cache, 2.6 GHz 45 W (TDP), 2.1 GHz 35 W (cTDP) |
|---|---|
| Main Memory | 32 GByte soldered RAM with ECC and data speed of up to 3200 MHz 32 GByte SODIMM as additional option, dual channel DDR4 with ECC, up to 3200 MHz |
| SATA | Four ports to rear I/O (SATA 3Gb/s), one standard SATA 6Gb/s connector, one mounting option for M.2 2280 SSD flash (SATA 6Gb/s) |
| Serial | COM1 (RS232) routed to front panel and rear I/O COM2 (RS232/RS422) routed to rear I/O only |
| Rear I/O | J3: 2x ETH for rear I/O or PICMG2.16, VGA, COM 1/2, 4x USB, GPIO, fan sense J4: PMC rear I/O J5: 4x SATA, 2xDVI/HDMI, battery, fan control, additional GPIO |
