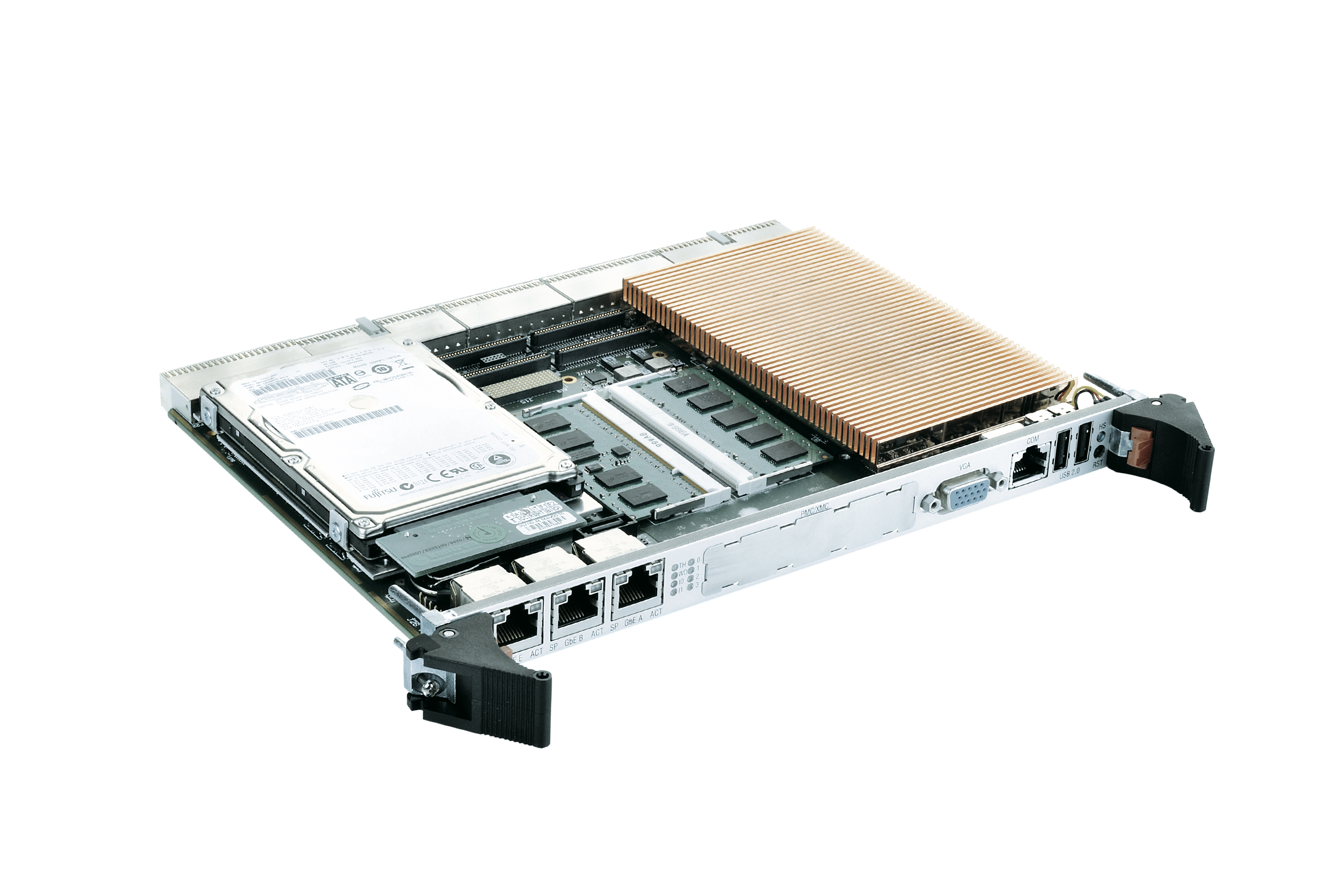

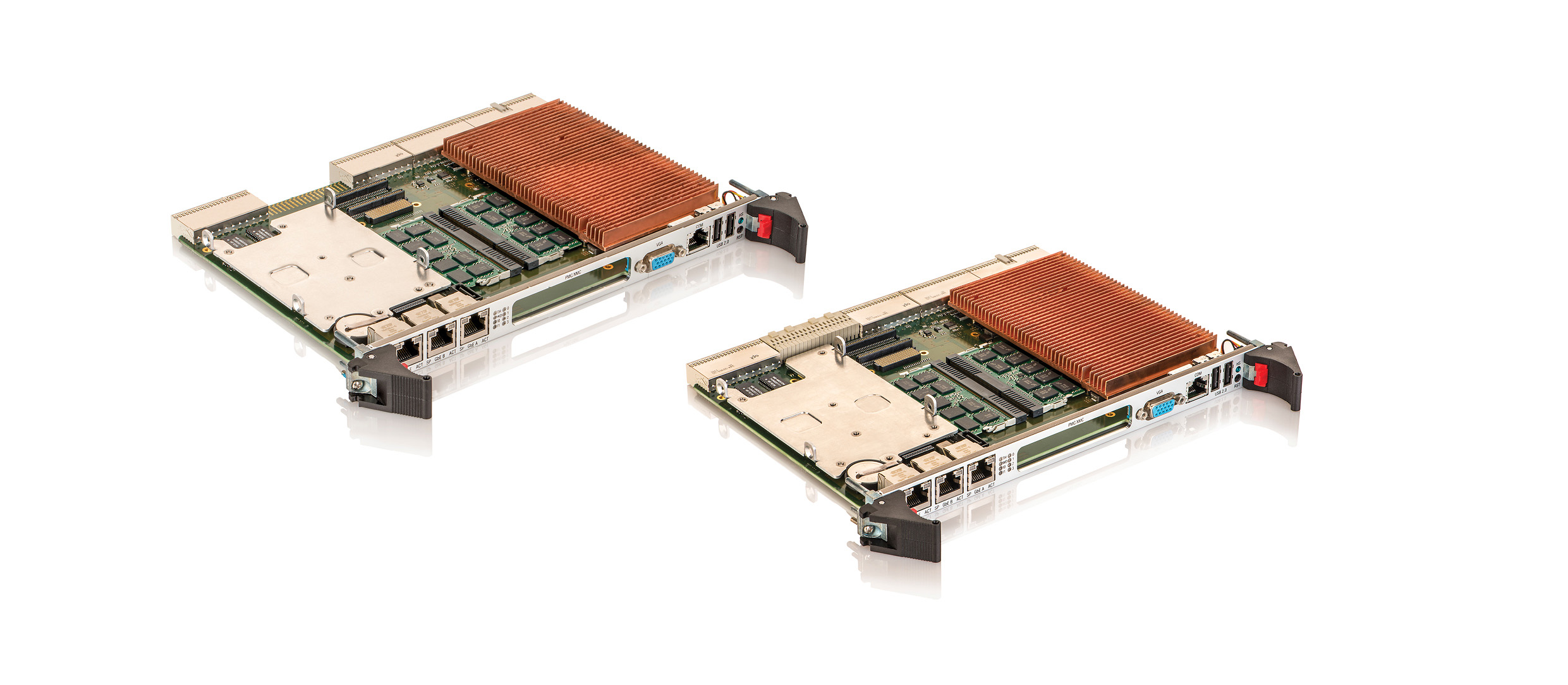

CP6005-SA This product is legacy

CPCI/PICMG 2.16 4th Generation Intel® Core™ Processor based System/Peripheral CPU

Mouseover Zoom loading...

Specifications

Bandwidth-intensive high-availability applications
8/16GB dual-channel DDR3L-1600 memory
Latest IO technology, 5x GigEthernet via PCI Express
XMC/PMC + onboard HDD + SSD Flash
High bandwidth option for 10GbE and PCI Express on backplane
Production and development in Europe

Highest Performance, Best Technology

The CP6005-SA 6U CompactPCI processor board available with Fourth Generation Intel® Core™ Quad Core processors meets the outstanding computing and graphics performance requirements at lowest power budgets. More features:

6U single slot processor board with passive cooling
Scalable processor speed,
Latest IO technology with 5x GbE, SATA 6Gb/s, RAID, SSD
Rear I/O supporting PICMG 2.16
Security with Trusted Platform Module 1.2
Hot swap and IPMI Platform Management
CP6005X-SA with 2x 10GbE and PCIe 3 x4 on backplane PICMG2.20-based

The powerful processors enable virtualization and multithreading applications to run in full 64-bit mode using Enhanced Intel® Virtualization, Intel® HD Graphics, and Intel® Turbo Boost Technology.
Designed for bandwidth-intensive applications, the CP6005-SA provides hot swap, IPMI (Intelligent Platform Management Interface), TPM (Trusted Platform Module 1.2) support, and meets the highest standards for the management and security of high-availability applications.
This makes this board exceptionally attractive to multiple markets, including highly sensitive, security-relevant telecom and datacom applications and, thanks to its robust construction, is also ideal for image-processing systems in medical and defense systems, among many other vertical segments.

If you need more information about sytems or PMC/XMC modules, please follow the links systems or PMC/XMC

Downloads

Datasheets

Datasheet CP6005(X)-SA
[ datasheet_cp6005-x-sa.pdf, 1.12 MB, Mar.01.2018 ]

Datasheet EFIBIOS B4001 for CP6005-SA
[ datasheet_efibios-b4001-for-cp6005.pdf, 1.21 MB, Aug.31.2017 ]

Manuals

CP6005(X)-SA Introduction Manual
[ 1055-2501_10_sk-man-cp6005-sa_cp6005x-sa_introduction.pdf, 1.06 MB, Sep.11.2017 ]

CP6005(X)-SA Users Manual
[ 1055-2501_10_sk-man-cp6005-sa_cp6005x-sa.pdf, 2.25 MB, Sep.11.2017 ]

IPMI Firmware User Guide
[ 1055-7522-10_sk-man-ipmi-fw.pdf, 540.24 KB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
