CP6004-SA

CPCI/PICMG 2.16 Third Generation Intel® Core™ Processor based System/Peripheral CPU

4HP, single slot processor board with passive cooling
Scalable processor speed, 3rd Generation Intel® Core™ Processor based
Up to 16GB DDR3 1600 MHz memory via two SO-DIMM sockets
5x GigEthernet Interfaces via PCIExpress
Latest IO technology with SATA Gen 3, RAID, SSD

Request product Download datasheet

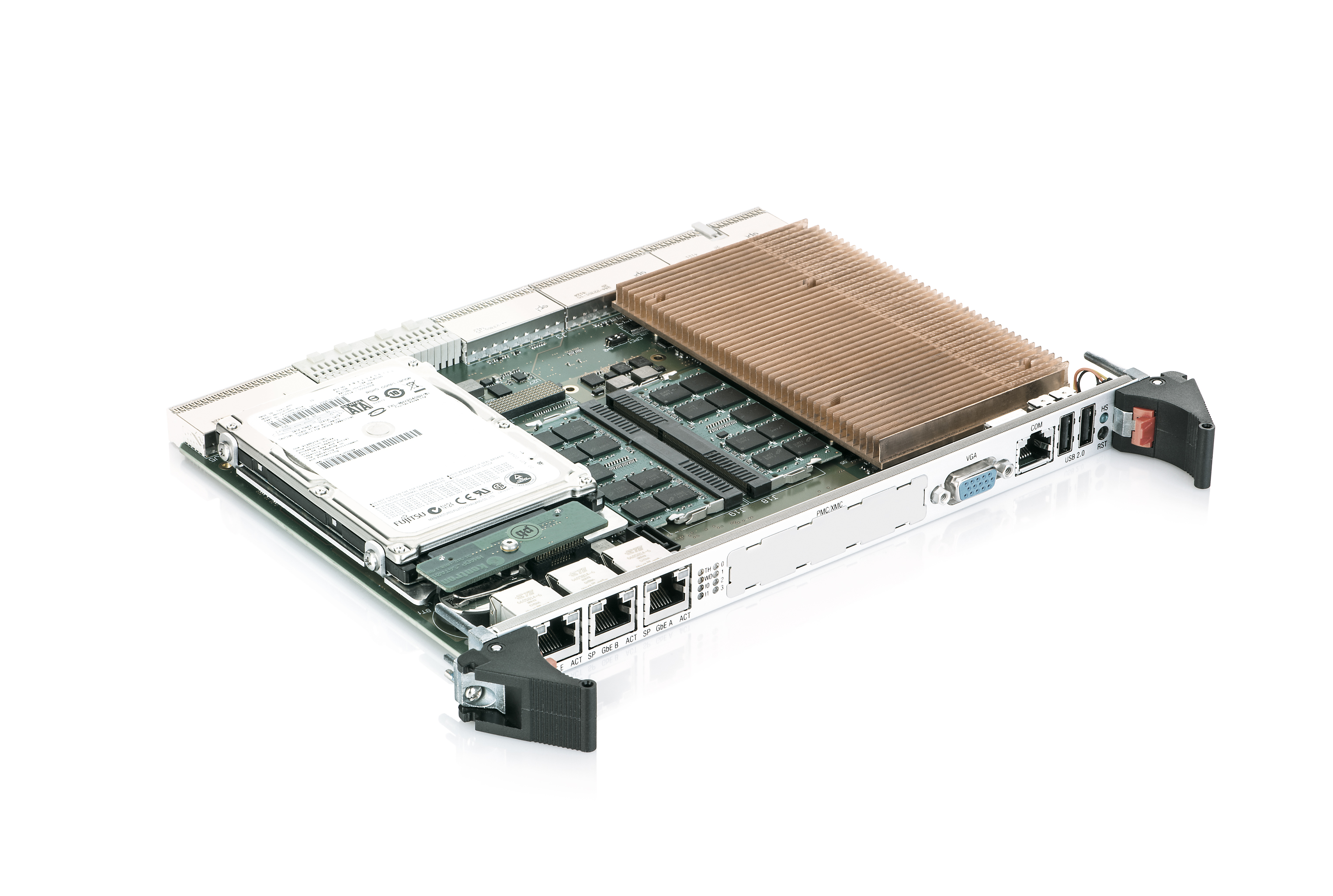

Product Thumbnail

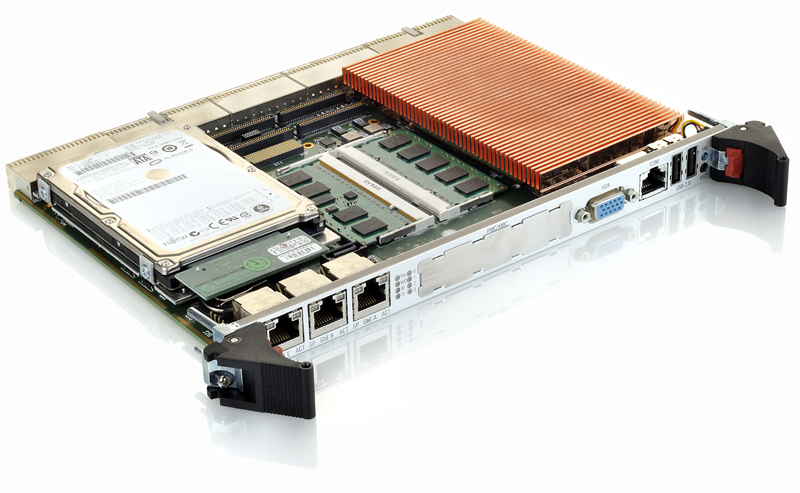

Product Thumbnail

Highest Performance, Best Technology

The CP6004-SA 6U CompactPCI processor board available with Third Generation Intel® Core™ Quad Core processors meets the highest computing and graphics performance requirements at lowest power budgets .

The powerful processors enable virtualization and multithreading applications to run in full 64-bit mode using Enhanced Intel® Virtualization, Intel® HD Graphics, and Intel® Turbo Boost Technology.
Designed for bandwidth-intensive applications, the CP6004-SA provides hot swap, IPMI (Intelligent Platform Management Interface), optional TPM (Trusted Platform Module 1.2) support, and meets the highest standards for the management and security of high-availability applications.
This makes this board exceptionally attractive to multiple markets, including highly sensitive, security-relevant telecom and datacom applications and, thanks to its robust construction, is also ideal for image-processing systems in medical and defense systems, among many other vertical segments.

If you need more information about sytems or PMC/XMC modules, please follow the links systems or PMC/XMC

Technical support

Product Image 1

Technical data

Processor	3rd Generation Intel® Core™ processor (22 nm manufacturing process, code name Ivy Bridge) Quad Core i7-3612QE (2.1 GHz), i7-3615QE (2.3 GHz); Dual Core i7 - 3555LE (2.5 GHz LV), i5-3610ME (2.7 GHz) Further processors available on project request
Main Memory	Dual channel DDR3 memory with ECC and data speed of up to 1600 MHz per channel, and up to 16 GByte on two SODIMM sockets

Downloads

ISO

Firmware Update CD-ROM R15 for CP6004<br>

245.56 KB | March 26, 2026

By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board.
Content of the Update CDROM:
- EFI R15
- IPMI R14
md5sum: 06b929e17587269afa9bcdf464be4e73 [ SK-LIN-APP-FWUPD-B3D01-R15.iso ]

ISO

Firmware Update CD-ROM R16 for CP6004

245.56 KB | March 26, 2026

By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board.

Content of the Update CDROM:
- EFI R16
- IPMI R14
md5sum: 393c5ce159fff9eabb38d14a1f091d7a

ISO

Firmware Update CD-ROM R18 for CP6004

245.56 KB | March 26, 2026

By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board. Content of the Update CDROM:
- EFI R18
- IPMI R14
md5sum: 450071a358fa61eb3899e35438e65a33 *SK-LIN-APP-FWUPD-B3D01-R19.iso

ZIP

Firmware Update R19 for CP6004

244.88 KB | March 26, 2026

Files included:
- B3D01_R19.KFL: UEFI binary for EFI update with Kontron kflash tool
- B3D01_R19.KFL.md5.txt: MD5 sum for the binary
- README.txt: UEFI update instruction for Kontron CP6004

ZIP

BSP for Wind River VxWorks 6.9.3.2 - patch

244.89 KB | March 26, 2026

Contains a mandatory Kontron BSP patch for usage of Kontron VXW69-BSP-B3C01 (R11) with Wind River VxWorks Edition 6.9.3.2 Platforms and Wind River Service Pack 3 ( VxWorks 6.9.3.2 ).

TXT-3

Readme Windows Embedded Standard 7 32 bit SMB Support CP6004

2.43 KB | March 26, 2026

ZIP-2

Windows Embedded Standard 7 32 bit Board Support Packages CP6004

234.48 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, Graphics Support, RAID/AHCI Support, Ethernet Support, Chipset Support, Audio Support, EEPROM Support

TXT

Readme Windows Embedded Standard 7 32 bit Board Support Packages CP6004

2.31 KB | March 26, 2026

TXT

Readme Windows XP 32 bit IPMI support CP6004

1.47 KB | March 26, 2026

TXT

Readme Windows XP 32 bit EEPROM Support CP6004

1.82 KB | March 26, 2026

TXT-3

Readme Windows XP 32 bit Kontron system function support CP6004

4.81 KB | March 26, 2026

TXT

Readme Windows XP 32 bit hardware monitoring support CP6004

1.68 KB | March 26, 2026

TXT-2

Readme Windows XP 32 bit SMB Support CP6004

2.43 KB | March 26, 2026

ZIP

Windows XP 32 bit Board Support Packages CP6004

140.51 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, Graphics Support, RAID/AHCI Support, Ethernet Support, Chipset Support, Audio Support, EEPROM Support

TXT

Readme Windows XP 32 bit Board Support Packages CP6004

2.28 KB | March 26, 2026

TXT

Readme Windows Server 2008 R2 64 bit EEPROM Support CP6004

1.96 KB | March 26, 2026

TXT-5

Readme Windows Server 2008 R2 64 bit Kontron system function support CP6004

5.26 KB | March 26, 2026

TXT

Readme Windows Server 2003 64 bit hardware monitoring support CP6004

1.67 KB | March 26, 2026

TXT

Readme Windows Server 2003 64 bit SMB Support CP6004

2.5 KB | March 26, 2026

TXT

Readme Windows Server 2008 R2 64 bit SMB Support CP6004

2.5 KB | March 26, 2026

ZIP

Windows Server 2008 R2 64 bit Board Support Packages CP6004

122.23 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, RAID/AHCI Support, Ethernet Support, Chipset Support, Audio Support, EEPROM Support

TXT

Readme Windows Server 2008 R2 64 bit hardware monitoring support CP6004

1.67 KB | March 26, 2026

TXT

Readme Windows Server 2003 32 bit EEPROM Support CP6004

1.82 KB | March 26, 2026

TXT-4

Readme Windows Server 2003 64 bit Kontron system function support CP6004

5.26 KB | March 26, 2026

TXT

Readme Windows Server 2003 64 bit EEPROM Support CP6004

1.96 KB | March 26, 2026

TXT

Readme Windows Server 2008 R2 64 bit Board Support Packages CP6004

1.48 KB | March 26, 2026

ZIP

Windows Server 2003 32 bit Board Support Packages CP6004

116.77 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, RAID/AHCI Support, Ethernet Support, Chipset Support, Audio Support, EEPROM Support

TXT

Readme Windows Server 2003 32 bit Board Support Packages CP6004

2.39 KB | March 26, 2026

TXT-5

Readme Windows Server 2003 32 bit Kontron system function support CP6004

4.81 KB | March 26, 2026

ZIP

Windows Server 2003 64 bit Board Support Packages CP6004

122.56 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, RAID/AHCI Support, Ethernet Support, Chipset Support, Audio Support, EEPROM Support

TXT

Readme Windows Server 2003 32 bit hardware monitoring support CP6004

1.68 KB | March 26, 2026

TXT-4

Readme Windows Server 2003 32 bit SMB Support CP6004

2.43 KB | March 26, 2026

TXT

Readme Windows Server 2003 64 bit Board Support Packages CP6004

2.42 KB | March 26, 2026

TXT

Readme Windows Embedded Standard 7 64 bit EEPROM Support CP6004

1.96 KB | March 26, 2026

TXT

Readme Windows Embedded Standard 7 64 bit SMB Support CP6004

2.5 KB | March 26, 2026

TXT

Readme Windows Embedded Standard 7 64 bit Board Support Packages CP6004

2.33 KB | March 26, 2026

BZ2

Linux BSP B3C01 R17 for CP6003, CP6003RA, CP6003RC, AM4022, CP3003, CP6004, CP6004X, CPS3003

1.19 MB | March 26, 2026

Contains drivers, a board library and demo applications. Contains all sources. Designed for native compilation. Verified against Fedora 18 / x86_64 Bit and Redhat Enterprise 6.4 / x86_64 Bit
md5sum: d5050a2e72c8024cd936c0bf52f0eea3

TXT

Readme Windows Embedded Standard 7 32 bit hardware monitoring support CP6004

1.68 KB | March 26, 2026

ZIP

Windows Embedded Standard 7 64 bit Board Support Packages CP6004

279.51 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, Graphics Support, RAID/AHCI Support, Ethernet Support, Chipset Support, Audio Support, EEPROM Support

TXT-4

Readme Windows Embedded Standard 7 32 bit Kontron system function support CP6004

4.81 KB | March 26, 2026

TXT

Readme Windows Embedded Standard 7 32 bit EEPROM Support CP6004

1.82 KB | March 26, 2026

TXT-3

Readme Windows Embedded Standard 7 64 bit Kontron system function support CP6004

5.26 KB | March 26, 2026

TXT

Readme Windows Embedded Standard 7 64 bit hardware monitoring support CP6004

1.67 KB | March 26, 2026

TXT

Readme Windows 7 32 bit Board Support Packages CP6004

1.38 KB | March 26, 2026

TXT

Readme Windows 7 32 bit hardware monitoring support CP6004

1.68 KB | March 26, 2026

TXT

Readme Windows 7 32 bit SMB Support CP6004

1.82 KB | March 26, 2026

TXT

Readme Windows 7 32 bit EEPROM Support CP6004

1.82 KB | March 26, 2026

TXT

Readme Windows 7 64 bit Board Support Packages CP6004

1.41 KB | March 26, 2026

ZIP

Wind River Linux 4.3 BSP 64-bit for B3C01 platform

244.92 KB | March 26, 2026

md5sum: d8546b83569e9bfb603c23941d259cf0

TXT

Readme Windows 7 64 bit hardware monitoring support CP6004

1.67 KB | March 26, 2026

TXT

Readme Windows 7 64 bit SMB Support CP6004

2.5 KB | March 26, 2026

TXT

Readme Windows 7 64 bit EEPROM Support CP6004

1.96 KB | March 26, 2026

TXT-2

Readme Windows 7 64 bit Kontron system function support CP6004

5.26 KB | March 26, 2026

TXT-2

Readme Windows 7 32 bit Kontron system function support CP6004

4.81 KB | March 26, 2026

ZIP

BSP for Wind River VxWorks 6.9.3.2

244.91 KB | March 26, 2026

BSP for Wind River VxWorks 6.9.3.2
md5sum: e4a27d531b14a68348a004927e59634a

ZIP-2

Windows 7 64 bit Board Support Packages CP6004

279.51 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, Graphics Support, RAID/AHCI Support, Ethernet Support, Chipset Support, Audio Support, EEPROM Support

ZIP-2

Windows 7 32 bit Board Support Packages CP6004

234.48 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, Graphics Support, RAID/AHCI Support, Ethernet Support, Chipset Support, Audio Support, EEPROM Support

HTM

Readme Windows XP embedded 32 bit Board Support Packages CP6004

10.4 KB | March 26, 2026

ZIP

Windows XP embedded 32 bit Board Support Packages CP6004

62.63 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, Graphics Support, RAID/AHCI Support, Ethernet Support, Chipset Support, IPMI Support, Audio Support, EEPROM Support

ZIP

Windows XP embedded 32 bit TPM support CP6004

244.91 KB | March 26, 2026

ZIP

Windows XP 32 bit TPM support CP6004

244.91 KB | March 26, 2026

ZIP

Windows Server 2003 32 bit TPM support CP6004

244.91 KB | March 26, 2026

ZIP

Windows Server 2003 64 bit TPM support CP6004

244.91 KB | March 26, 2026

PDF

Readme for Fedora Live Image B3C01 R14

94.26 KB | March 26, 2026

Readme for Fedora Live Image B3C01 R14. Please download and read this document, before downloading the Fedora Live Image B3C01 R14.

ISO

Fedora Live Image B3C01 R14 for CP6003, CP6004, AM4022 and CP3003 family

245.12 KB | March 26, 2026

Fedora 17 live image, containing the Kontron Linux BSP for convenient and quick evaluation and installation. Please refer to the readme file in this download section for more details.
md5sum: db91695d00e922c2a82b28d64093fc93

BZ2

Linux BSP B3C01 R14 for CP6003, CP6004, AM4022 and CP3003 Family

1.38 MB | March 26, 2026

Contains drivers, a board library and demo applications. Contains all sources. Designed for native compilation. Verified against Fedora 17 / 64 Bit and Redhat Enterprise 6.3 / 64 Bit
md5sum: 00d54864f819054261f82c7eb4e3474f

ISO

Fedora Live Image B3C01 R16 for CP6003, CP6003RA, CP6003RC, AM4022, CP3003, CP6004, CP6004X, CPS3003

245.12 KB | March 26, 2026

Fedora 18 live image, containing the Kontron Linux BSP for convenient and quick evaluation and installation. Please refer to the readme file in this download section for more details.
md5sum: 302e938f96ad9ab81138323a236773d6

PDF

Readme for Fedora Live Image B3C01 R16

79.81 KB | March 26, 2026

Readme for Fedora Live Image B3C01 R16. Please download and read this document, before downloading the Fedora Live Image B3C01 R16.

ZIP

Wind River Linux 5.0 BSP 64-bit for B3C01 platform

244.91 KB | March 26, 2026

BSP for Wind River Linux 5.0 / 64 bit md5sum: 75cafee9bd1c675d4cc7cfc7b36b284a

TXT

Readme Windows Server 2012 64 bit Board Support Packages CP6004

1.47 KB | March 26, 2026

ZIP

Windows Server 2012 64 bit Board Support Packages CP6004

244.9 KB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, RAID/AHCI Support, Chipset Support, EEPROM Support
