CP6001

CPCI/PICMG 2.16 Intel® Core™(2) Duo Rugged System/Peripheral CPU

Low power consumption Intel® ULV Core Duo 1.2GHz and LV 1.5GHz Core2 Duo processors
High computing and graphic performance via 945 chipset
Three Rugged Levels -R1, R2, R3 - for demanding application requirements
High shock & vibration resistant and conduction cooled versions
Comprehensive I/O capabilities, 3x GbE, 4x SATA, 2x DVI, onboard HDD, Flash

Request product

Reliable, Resistant, Robust - Three Levels of Ruggedization

The CP6001 features energy efficient embedded Intel dual core processors. With the 1.2 GHz Intel® Core™ Duo U2500 ULV processor and the Intel® Core™ 2 Duo L7400 LV processor, the CP6001 has extraordinary performance-per-watt values.

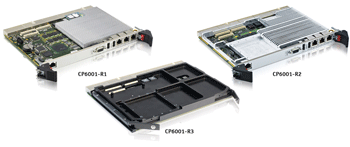

Designed to withstand even the toughest environmental conditions, the passively cooled CP6001 featuring up to 4 GByte of soldered RAM and 2GByte soldered application flash comes in three rugged levels - defined as R1, R2 and R3. All three versions are available with E2 capabilities The R1-version is designed for standard application requirements in air-cooled environments. The R2-version is ruggedized for high shock and vibration environments. The R3-version is fully conduction cooled.
If you need more information about sytems or PMC/XMC modules, please follow the links systems or PMC/XMC

Technical support

Technical data

CPU	Intel® Core™2 Duo,Core Duo Processor up to 1.5GHz
Front Side Bus	up to 667 MHz
Cache	2 / 4 MByte
Chipset	Intel® 945GM, ICH7R
DRAM	up to 4 GByte, DDR2 533/667 MHz

Downloads

BIOS

ISO

Firmware Update CD-ROM R18

16.26 MB | May 19, 2026

By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board.
Content of the Update CDROM:
- BIOS R25
- IPMI R15
- GbE I0100

MD5 Sum: 5f0b2b0caeb0a11f2689972a791ab790

ISO

Firmware Update CD-ROM R19

16.48 MB | May 19, 2026

By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board.
Content of the Update CDROM:
- BIOS R26
- IPMI R15
- GbE I0100
md5sum: 803801ffeb81f77630c7480619869288

Software

ZIP

BSP for Wind River VxWorks 6.7

7.25 MB | May 19, 2026

BSP for Wind River VxWorks 6.7 md5sum: 3737963e2d54dead7838d8c3069def28

BZ2

Linux BSP for CP6001 and CP6001-V (R21)

2.95 MB | March 26, 2026

Contains drivers, a board library and demo applications.
Contains all sources
Verified against OpenSuSE and Redhat Enterprise Linux
md5sum: a5fd28cee70005cfa570fe92937d4eb

Download

ZIP

BSP for Wind River VxWorks 6.8

7.31 MB | May 19, 2026

BSP for Wind River VxWorks 6.8 md5sum: c8018d3346d021bc3fd15c3de74f72a9
