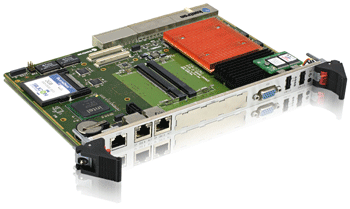

CP6001-V

CPCI/PICMG 2.16 Celeron® M440; 1.86GHz

CPCI/PICMG 2.16 cost optimized value oriented design
Celeron® M440 1.86 GHz
Single slot 4HP CPU with passive cooling
Scalable memory size up to 4GB SO-DIMM
2xGbE on FP and 2xGbE PICMG 2.16

Request product

Value Line: optimized design for cost sensitive applications

The CP6001-V is a cost/performance optimized solution designed for demanding, cost-sensitive applications such as those found in automation technology.
The Value Line CompactPCI board can be equipped with an Intel® Celeron® M440 (1.86 GHz) processor. The hot-swap-capable CPU board is equipped with a variety of interfaces, including three USB 2.0 ports, two front panel GbE and two GbE PICMG 2.16 ports.
In addition, there is a serial interfaces and the usual connections for graphics (VGA CRT with a resolution of 2048 x 1536 pixels) as well as a PMC-slot, a CompactFlash socket, an USB Flash socket, and the site for an onboard 2.5" HDD.
If you need more information about sytems or PMC modules, please follow the links systems or PMC/XMC

Technical support

Technical data

CPU	Intel® Celeron® M440, 1.86GHz
DRAM	up to 4 GB SO-DIMM DDR2
Chipset	Intel® 945GM and ICH7-R I/O Controller Hub
4HP Version	2x Gb Ethernet, 2x USB 2.0, LEDs, CRT, COM1, PMC, Reset
8HP Version	-

Downloads

BIOS

ISO

BIOS Update CDROM

9.85 MB | May 19, 2026

By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board. Content of the Update CDROM:
- BIOS R11

ISO

CP6001-V Firmware Update CD-ROM R11

13.52 MB | May 19, 2026

By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board.
Content of the Update CDROM:
- EFI R12
md5sum: 4d33cf4e30121902f528632aa9e2efa0

ISO

CP6001-V Firmware Update CD-ROM R12

13.74 MB | May 19, 2026

By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board.
Content of the Update CDROM:
- EFI R13
md5sum: 4c9c8aad460ae8f5a966e5d27aee5309

Software

BZ2

Linux BSP for CP6001 and CP6001-V (R21)

2.95 MB | March 26, 2026

Contains drivers, a board library and demo applications.
Contains all sources
Verified against OpenSuSE and Redhat Enterprise Linux
md5sum: a5fd28cee70005cfa570fe92937d4eb

Download

ZIP

BSP for Wind River VxWorks 6.7

7.25 MB | May 19, 2026

BSP for Wind River VxWorks 6.7 md5sum: 3737963e2d54dead7838d8c3069def28

BZ2

Linux BSP for CP6001 and CP6001-V (R20)

1.71 MB | March 26, 2026

Contains drivers, a board library and demo applications.
Contains all sources
Verified against OpenSuSE and Redhat Enterprise Linux
md5sum: bb8b5b3299f94bdac1c8119e082b7a54

Download

ZIP

BSP for Wind River VxWorks 6.8

7.31 MB | May 19, 2026

BSP for Wind River VxWorks 6.8 md5sum: c8018d3346d021bc3fd15c3de74f72a9
