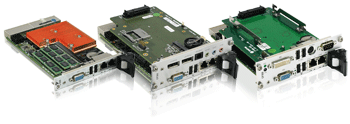

CP308

High-end 45nm Intel® Core™2 Duo CPU, extended temperature version with 1.2 GHz ULV processor

Scalable processor speed, up to 2.26 GHz
Version for extended temperature -40°C to +85°C with 1.2 GHz
Support of latest DDR3 memory technology providing
memory throughput up to 17 GB/s
Two extension modules available: CP308-HDD and CP308-MEDIA

Request product

64-bit processing performance in 45nm package

Equipped with the next generation of high-performance Core2 Duo mobile processors manufactured using the 45nm process and the mobile chipset GS45, the CP308 offers the greatest performance ever achieved in the 3U CompactPCI form factor.

The CP308 offers scalable 45nm CPU performance to suit the individual requirements of a wide range of applications that demand energy efficient dual-core performance such as image and video processing as well as robotic and other real-time applications.
CPU performance ranges from the high-end 2.26 GHz version for computation intensive solutions, the low voltage 1.86 GHz version for energy sensitive applications to the ultra-low power 1.2 GHz version, where power dissipation is critical.
The mobile chipset, GS45, provides support for the latest DDR3 memory technology. With up to 8GB DDR3 memory running at a memory bus speed of up to 1066 MHz, the CP308 can provide data throughputs of up to 17 GB/s.
The huge range of state-of-the-art interfaces available either at the front, as onboard interfaces or via Rear IO allows the CP308 to be easily adapted to the individual application needs.

Technical support

Technical data

CPU	Intel® Core™2 Duo (45nm) up to 2.26 GHz
DRAM	Max 8 GByte (2x SO-DIMMs)
Chipset	Intel® GS45 and ICH9M
4HP Version	2x Gigabit Ethernet, CRT, 2x USB 2.0, LEDs
8HP Version	Two extension modules: CP308-HDD, CP308-MEDIA
