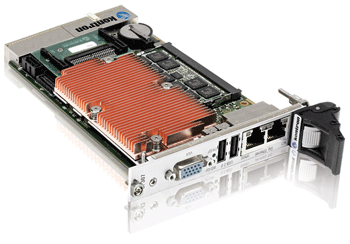

CP307

High Performance Rugged Intel® Core™ Duo CPU, extended temperature version with 1.2 GHz processor

Versatile 4HP or 8HP CPU with passive cooling
Scalable processor speed, Intel Core™ Duo 1.2 GHz / 1.66 GHz / 2.0 GHz
Version for extended temperature -40°C to +85°C with 1.2 GHz
Support of latest PSB performance with 667 MHz
Low power consumption mobile chipset (32-bit address range)

Request product Download datasheet

PCI Express based, High Density compute CPU

The CP307 offers dazzling performance with dual-core technology, 667 MHz front side bus, DDR2-SDRAM expandable up to 4GB and comprehensive communication interfaces: on board are 2 x GBit Ethernet, up to 6 x USB 2.0, two SATA interfaces, and a CompactFlash slot.

The graphics accelerator integrated into the Mobile Intel 945GM Express provides excellent 2D, 3D, and video features for VGA and DVI, with dual operation possible.

The CPU board is available as single slot (4HP) or dual slot (8HP). In the 8HP version, the CP307 offers additional legacy support, LPC, COM, DVI, and 2,5" SATA carriers.

The CP307 is even offered in an extended temperature version (E2 range from -40°C to +85°C) with a 1.2GHz processor.

Technical support

Technical data

CPU	Intel® Core™ Duo Processor, up to 2 GHz
CPU L2 Cache	2 MByte
Chipset	Intel® 945GM and ICH7R
DRAM	Max 4 GByte (2 GByte soldered + 2 GByte via SO-DIMM socket)
DRAM speed	667 MHz

Downloads

BIOS

ISO

CP307 Firmware Update CD-ROM R14

245.56 KB | March 26, 2026

By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board.
Content of the Update CDROM:
- BIOS R25
md5sum: 82d8f7e7ce2721959969a7dc8a198db3

Download

ISO

CP307 Firmware Update CD-ROM R15

245.56 KB | March 26, 2026

By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board.
Content of the Update CDROM:
- BIOS R26
md5sum: 8F9391E88AA82B2838F7E1B338DA3239

Download

Software

TXT

Readme Windows XP CP307 32 bit

6.57 KB | March 26, 2026

Download

ZIP

BSP for Wind River VxWorks 6.8

244.9 KB | March 26, 2026

BSP for Wind River VxWorks 6.8 md5sum: a68bb62512459d7a29707db69ac884cc

Download

HTML

Readme Windows XP embedded CP307

22.45 KB | March 26, 2026

Download

ZIP

Board Support Package CP307 32 bit

45.46 MB | March 26, 2026

Download

ZIP

Board Support Package CP307

36.93 MB | March 26, 2026

Download

BZ2

Linux BSP A8001 (R10) for CP305, CP307, CP307-V, CP307-RS

1.27 MB | March 26, 2026

Contains drivers, a board library and demo applications.
Contains all sources.
Verified against OpenSuSE and Redhat Enterprise Linux.
4d860993ee5a8b72a6750b626422bb8a

Download

ZIP-2

BSP for Wind River VxWorks 6.7

244.9 KB | March 26, 2026

BSP for Wind River VxWorks 6.7 md5sum: 0a76205cb73d05462918d469ade9b749

Download

ZIP

Windows 7 32 bit Board Support Packages CP307

59.54 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, Graphics Support, RAID/AHCI Support, Ethernet Support, Chipset Support

Download

BZ2

Linux BSP A8001 (R11) for CP305, CP307, CP307-V, CP307-RS

1.52 MB | March 26, 2026

Contains drivers, a board library and demo applications. Contains all sources.
Verified against OpenSuSE, Redhat Enterprise and Fedora Linux
md5sum: 72a3165a826543c4dedef9b638a90813

Download

TXT

Readme Windows Embedded Standard 7 32 bit Board Support Packages CP307

1.87 KB | March 26, 2026

Download
