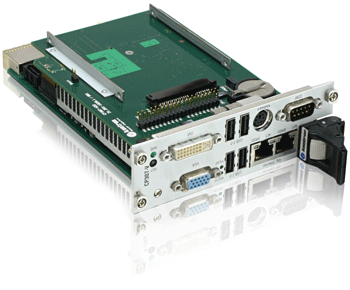

CP307-V

The CP307-V includes the 1.86 GHz Intel Celeron M processor 440 with 533 MHz front side bus, combined with the Intel Mobile 945GM Express chipset and ICH7-R Southbridge. A one GByte DDR2-SDRAM memory module with 533 MHz offers high data throughput. The CPU board is available as dual slot (8HP) solution providing comprehensive communications interfaces via 4 x USB 2.0, PS-2 and COM and 2 x GBit Ethernet where as high network bandwidth is guaranteed through PCI-Express as data bus to the Ethernet channels.

The graphics accelerator integrated within the Mobile Intel 945GM Express allows for excellent 2-D, 3-D and video features. Connectivity by a VGA and DVI-port enables dual operation mode.
2x SATA-300 interfaces - one with on board 2.5 HDD mounting capabilities in addition, a CompactFlash socket allows for versatile storage media access.

Among the uses for the CP307-V are price-sensitive industrial applications, such as those found in production control, machine or facilities construction.
