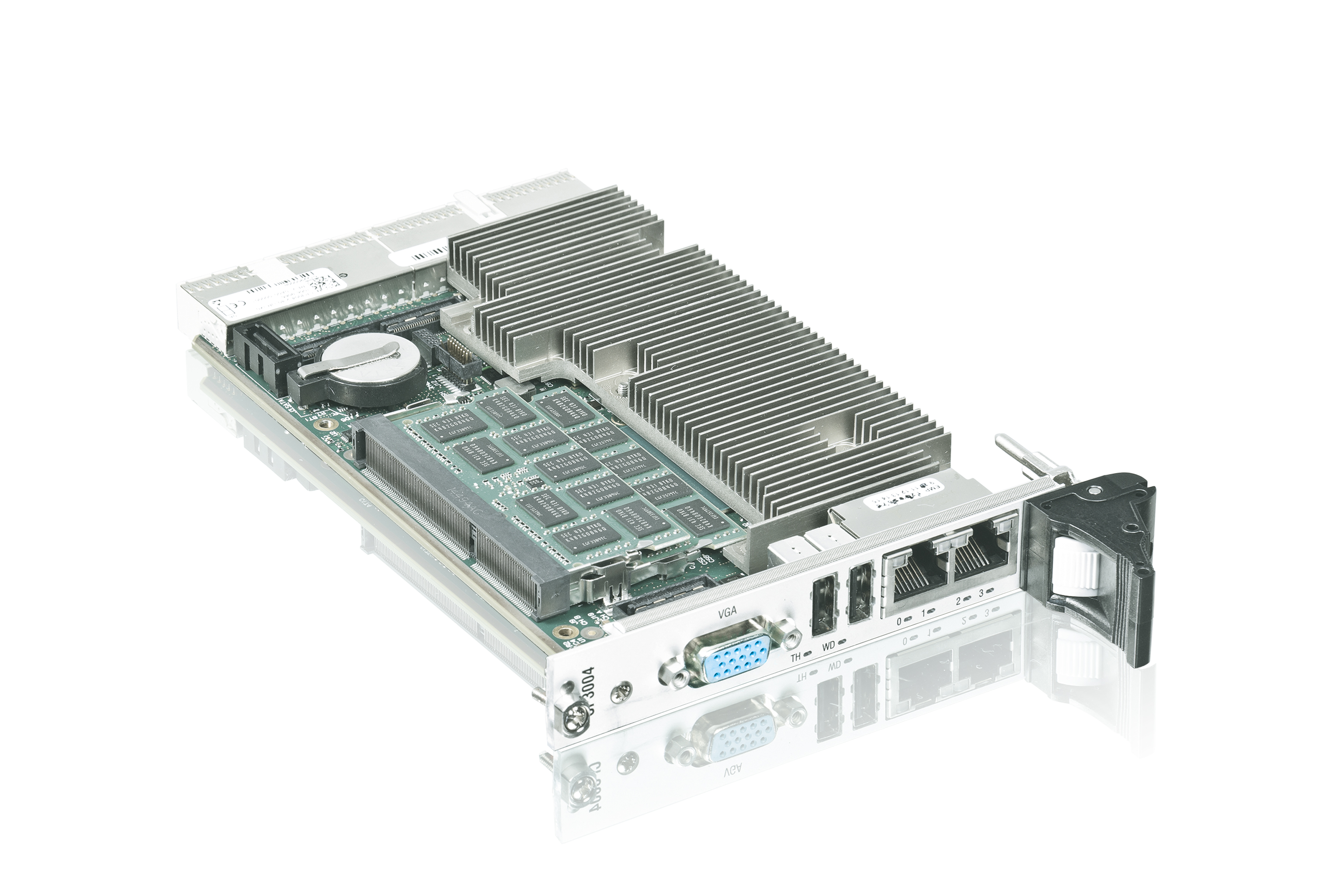

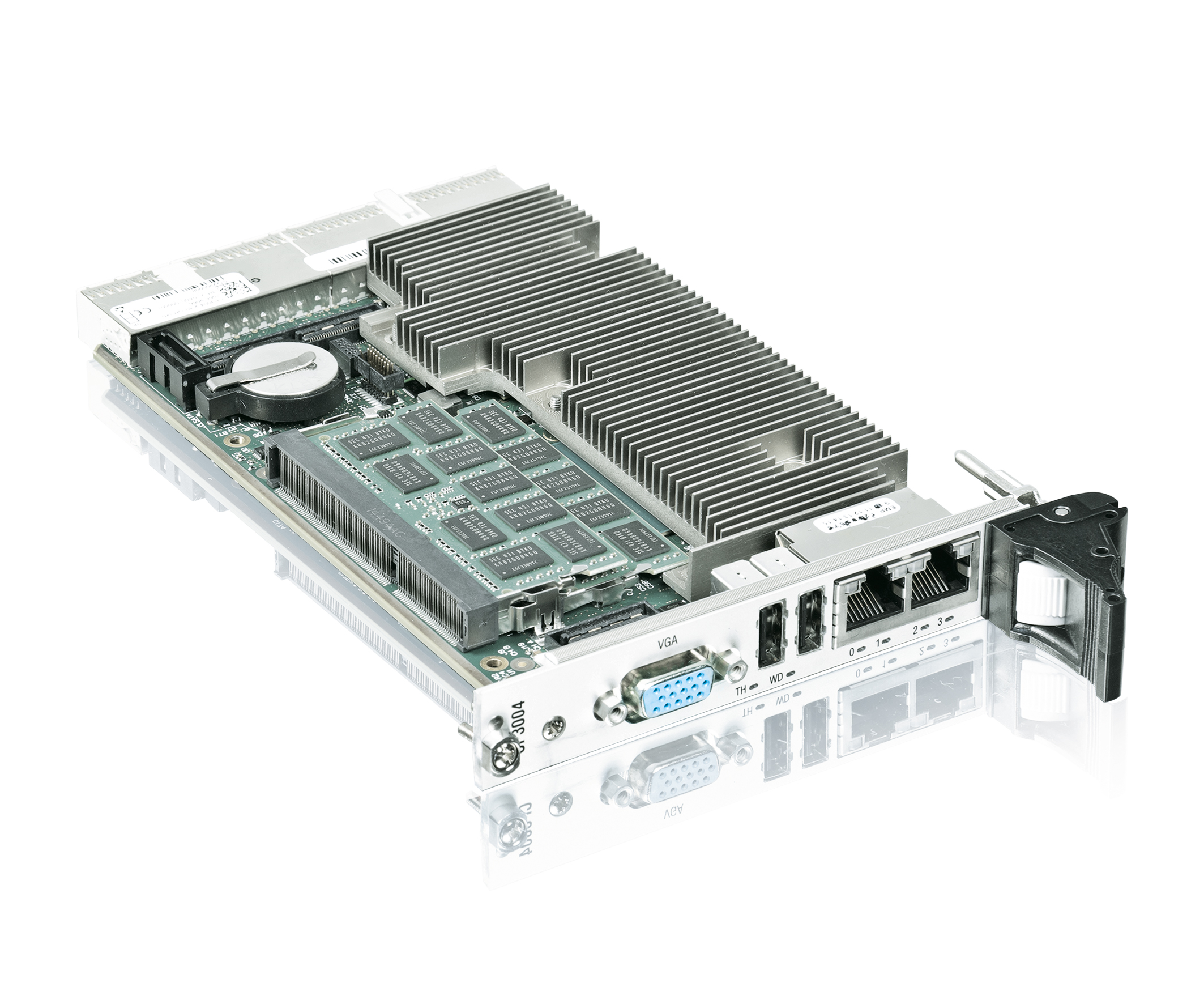

5th Generation Intel® Core™ 3U CompactPCI CPU Board
This product is not recommended for new designs.

Successor: CP3005-SA series

Last time buy: December 31, 2020
Last time delivery: September 30, 2021
Mouseover Zoom loading...
  • High performance range, high-end graphics, high connectivity, rugged
  • Core™ i7 Quadcore and Dualcore (4th gen) versions
  • DirectX® 11, OpenGL 4, three independent outputs
  • USB 3.0, SATA 6Gbit/s, 3x Gbit Ethernet/WOL, PCI Express
  • Extended Temperature and VITA47 EAC3
Download Datasheet

With CP3004-SA, the fifth Generation of Intel® Core™ technology has been made available in Kontron’s CompactPCI product portfolio. The high density design offers extraordinary performance-per-watt values, based on the 14 nanometer technology, and is an ideal backbone for powerful network-intensive applications providing virtualization (VT-X, VT-D) and highest graphics performance. The new-generation graphics controller has up to 40 execution units providing OpenCL 1.2 / OpenGL 4 and triple independent display support. The Intel® Advanced Vector Extensions AVX 2.0 enhancements provide a huge performance improvement in floating-point-intensive computations, which are a key part of digital signal and image processing applications.

CP3004-SA is prepared to be used in demanding and harsh environments, designed according to the shock and vibration requirements of VITA47 EAC3. Extended temperature versions are available. Dual-Core versions (4th gen CPU) provide for low heat dissipation. The processor’s TDP can be adjusted dynamically to a desired performance and power envelope. Typical applications can be found in the markets

► Military/Defence: radar, sonar, general

► Industrial Automation: plant control, machine control

► Energy: demanding environments, cole, oil&gas

► Transportation: long lasting and reliable systems

Long term availability and Kontron’s commitment to a rich CompactPCI portfolio make CP3004-SA a safe investment with low total-cost-of-ownership.


CPU 5th Gen Intel® Core™ i7-5700EQ Quad-Core up to 2.6 GHz
4th Gen Intel® Core™ i5-4410E Dual-Core 2.9 GHz
4th Gen Intel® Core™ i3-4112E Dual-Core 1.8 GHz
DRAM Up to 16 GByte DDR3L 1600 MHz (2x SODIMM's), with ECC
Chipset QM87

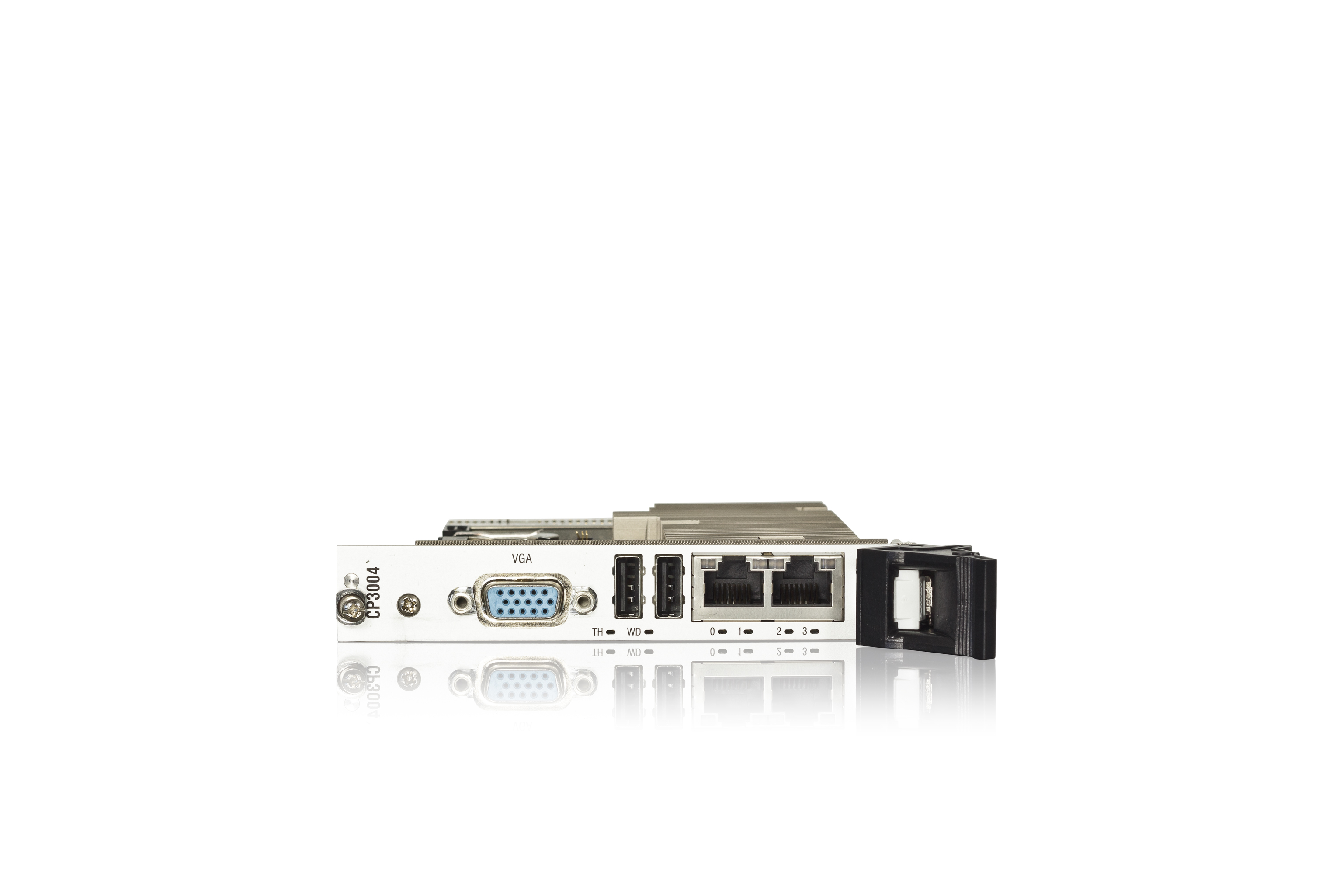

4HP Version 2x Gigabit Ethernet, CRT, 2x USB 2.0, LEDs
Ethernet Up to 3x 1000Base-Tx, 2x front/rear switchable with WOL (Wake-On-LAN) support, 1x via Extension CP3004-HDD
Flash Disk SATA NAND Flash Module, up to 32GB
Graphics Intel® HD Graphics 5600 integrated (Quad-Core)
Intel® HD Graphics 4600 integrated (Dual-Core)



CP3004-SA Datasheet
[ datasheet_cp3004-sa_2017-11-07.pdf, 1.99 MB, Nov.07.2017 ]


CP3004-SA User Guide
Rev. 1.2, 2019 March 18th
[ cp3004-sa_12_new_2019-03-18.pdf, 5.02 MB, Mar.18.2019 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]


Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section
