CP3003-SA

3rd Generation Intel® Core™ Processor based 3U CompactPCI CPU Board

Latest Intel® Core™ technology, quad- and dual-core processors
Up to 16 GB DDR3 memory with ECC
Up to 32 GB SATA NAND Flash
Up to 3x GbE, WOL Support
Up to 3x independent graphics outputs

Request product Download datasheet

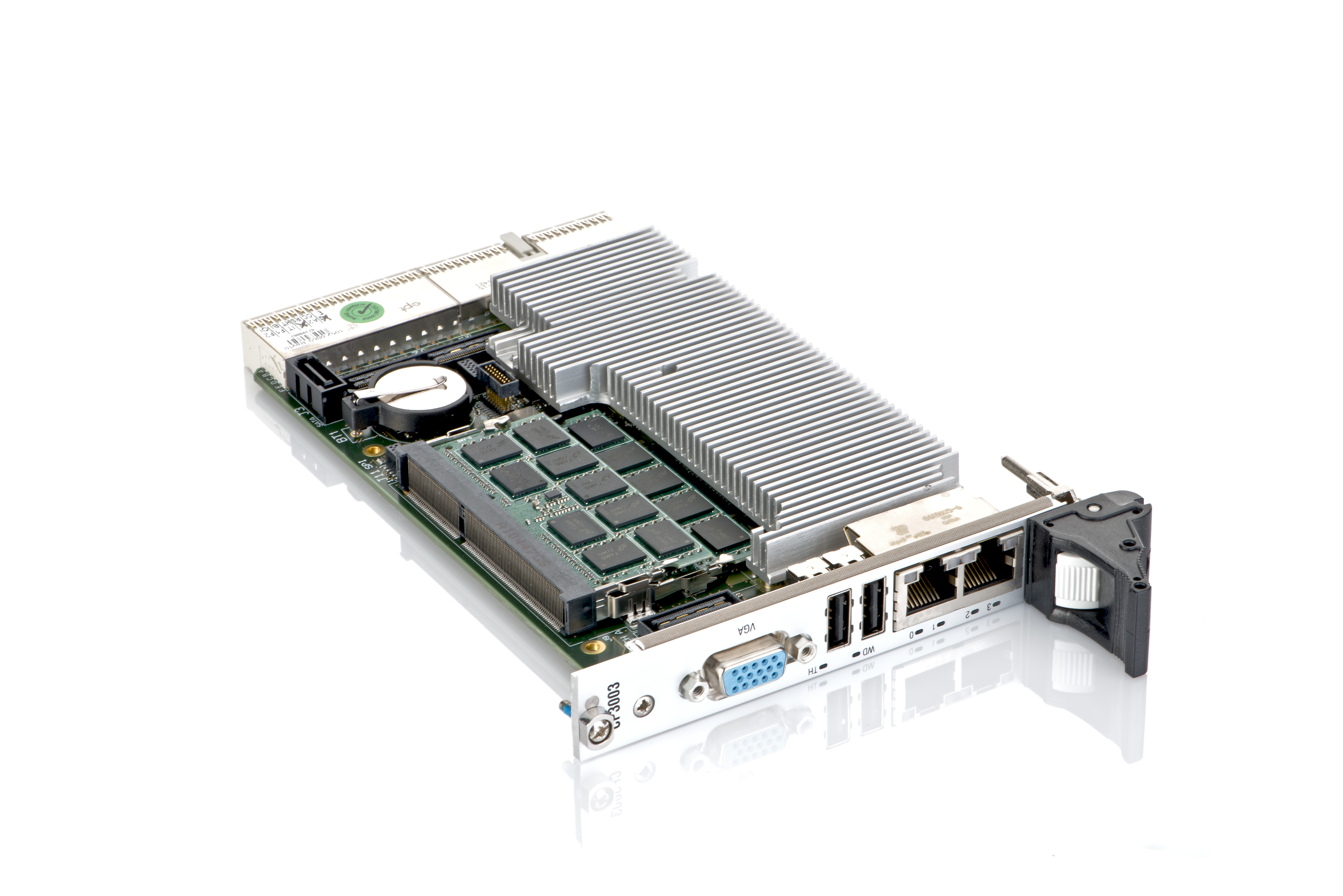

Product Thumbnail

Product Information

The CP3003-SA is a highly integrated, high performance 3U CompactPCI CPU based on the 3rd Generation Intel® Core™ processor technology. The CP3003-SA is available with dual- and quad-core CPU performance scalable from the ULV 1.7 GHz Intel® Core™ i7-3517UE up to the 2.1 GHz i7-3612QE processor. The new Intel® HD4000 graphics with integrated DirectX® 11, OpenGL 3.1 and OpenCL 1.1 support provides an up to four times better graphics performance compared to previous platform designs. Additionally, now three independent graphics outputs are supported.
Memory-demanding applications can make use of up to 16GB 1600MHz DDR3 SDRAM with Error Checking and Correction (ECC). For onboard data storage the CP3003-SA offers up to 32GB on a dedicated SLC SATA Flash module or a HDD/SSD and CFast option on the 8HP extension module.

Technical support

Product Image 1

Technical data

CPU	Intel® Core™i7 up to quad-core 2.1 GHz
DRAM	Max 16 GByte DDR3 1600 MHz (2x SODIMM's), with ECC
Chipset	QM77
4HP Version	2x Gigabit Ethernet, CRT, 2x USB 2.0, LEDs
Ethernet	Up to 3x 1000Base-Tx, 2x with WOL (Wake-On-LAN) support

Downloads

ISO-2

Firmware Update CD-ROM B3E01 R13 for CP3003-SA and CP3003-V<br>

245.56 KB | March 26, 2026

By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board.
Cloning CD to an USB device is also an option.
Content of the Update CDROM:
- EFI R13
- ETH Configuration File
md5sum: 028a23d78cc795b7f447279b026531b2

ISO

Firmware Update CD-ROM B3E01 R12 for CP3003-SA and CP3003-V

245.56 KB | March 26, 2026

By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board.
Cloning CD to an USB device is also an option.
Content of the Update CDROM:
- EFI R12
- ETH Configuration File R11

md5sum: 2cfec88b829d2363233278fbb06d38c2

ISO

Firmware Update CD-ROM B3E01 R16 for CP3003-SA and CP3003-V

245.56 KB | March 26, 2026

By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board.
Cloning CD to an USB device is also an option.
Content of the Update CDROM:
- EFI R16
- ETH Configuration File R11
md5sum: fa3364893c99cc1c71b86c7f75dcf29c

ISO

Firmware Update CD-ROM B3E01 R14 for CP3003-SA

245.56 KB | March 26, 2026

By burning this ISO-Image with any CD-Writer-Program you can build a bootable CD-ROM with an interactive menu for updating FW on this board. Content of the Update CDROM:
- EFI R14
- ETH config R11
md5sum: 1f41a64dafd95b139b113a63ae1c2788

BZ2

Linux BSP B3C01 R17 for CP6003, CP6003RA, CP6003RC, AM4022, CP3003, CP6004, CP6004X, CPS3003

1.19 MB | March 26, 2026

Contains drivers, a board library and demo applications. Contains all sources. Designed for native compilation. Verified against Fedora 18 / x86_64 Bit and Redhat Enterprise 6.4 / x86_64 Bit
md5sum: d5050a2e72c8024cd936c0bf52f0eea3

ZIP

Windows XP 32 bit TPM support CP3003

244.9 KB | March 26, 2026

Atmel TPM

ZIP

Windows Server 2003 32 bit TPM support CP3003

244.9 KB | March 26, 2026

Atmel TPM

ZIP

Windows Server 2003 64 bit TPM support CP3003

244.91 KB | March 26, 2026

Atmel TPM

ZIP

Windows 7 32 bit Board Support Packages CP3003

236.79 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, Graphics Support, RAID/AHCI Support, Ethernet Support, Chipset Support, EEPROM Support, USB Support

TXT

Readme Windows 7 32 bit SMB Support CP3003

2.23 KB | March 26, 2026

TXT-23

Readme Windows 7 32 bit hardware monitoring support CP3003

1.54 KB | March 26, 2026

TXT

Readme Windows 7 32 bit Kontron system function support CP3003

4.81 KB | March 26, 2026

TXT

Readme Windows 7 32 bit EEPROM Support CP3003

1.92 KB | March 26, 2026

TXT

Readme Windows 7 32 bit Board Support Packages CP3003

1.21 KB | March 26, 2026

TXT

Readme Windows Embedded Standard 7 32 bit Board Support Packages CP3003

2.15 KB | March 26, 2026

TXT

Readme Windows Embedded Standard 7 64 bit Board Support Packages CP3003

2.18 KB | March 26, 2026

TXT

Readme Windows 7 64 bit Board Support Packages CP3003

1.24 KB | March 26, 2026

ZIP

Windows 7 64 bit Board Support Packages CP3003

281.87 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, Graphics Support, RAID/AHCI Support, Ethernet Support, Chipset Support, EEPROM Support, USB Support

TXT

Readme Windows 7 64 bit SMB Support CP3003

2.41 KB | March 26, 2026

TXT-24

Readme Windows 7 64 bit hardware monitoring support CP3003

1.62 KB | March 26, 2026

TXT

Readme Windows 7 64 bit Kontron system function support CP3003

5.26 KB | March 26, 2026

TXT

Readme Windows 7 64 bit EEPROM Support CP3003

1.96 KB | March 26, 2026

ZIP

Windows Server 2003 32 bit Board Support Packages CP3003

112.06 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, RAID/AHCI Support, Ethernet Support, Chipset Support, EEPROM Support

TXT

Readme Windows Server 2003 32 bit Board Support Packages CP3003

1.2 KB | March 26, 2026

TXT

Readme Windows Server 2003 32 bit SMB Support CP3003

2.23 KB | March 26, 2026

TXT-24

Readme Windows Server 2003 32 bit hardware monitoring support CP3003

1.54 KB | March 26, 2026

TXT

Readme Windows Server 2003 32 bit Kontron system function support CP3003

4.81 KB | March 26, 2026

TXT

Readme Windows Server 2003 32 bit EEPROM Support CP3003

1.92 KB | March 26, 2026

ZIP

Windows Server 2003 64 bit Board Support Packages CP3003

117.1 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, RAID/AHCI Support, Ethernet Support, Chipset Support, EEPROM Support

TXT

Readme Windows Server 2003 64 bit Board Support Packages CP3003

1.23 KB | March 26, 2026

TXT

Readme Windows Server 2003 64 bit SMB Support CP3003

2.41 KB | March 26, 2026

TXT-25

Readme Windows Server 2003 64 bit hardware monitoring support CP3003

1.62 KB | March 26, 2026

TXT

Readme Windows Server 2003 64 bit Kontron system function support CP3003

5.26 KB | March 26, 2026

TXT

Readme Windows Server 2003 64 bit EEPROM Support CP3003

1.96 KB | March 26, 2026

ZIP

Windows Server 2008 R2 64 bit Board Support Packages CP3003

117.1 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, RAID/AHCI Support, Ethernet Support, Chipset Support, EEPROM Support

TXT

Readme Windows Server 2008 R2 64 bit Board Support Packages CP3003

1.38 KB | March 26, 2026

TXT

Readme Windows Server 2008 R2 64 bit SMB Support CP3003

2.41 KB | March 26, 2026

TXT-26

Readme Windows Server 2008 R2 64 bit hardware monitoring support CP3003

1.62 KB | March 26, 2026

TXT

Readme Windows Server 2008 R2 64 bit Kontron system function support CP3003

5.26 KB | March 26, 2026

TXT

Readme Windows Server 2008 R2 64 bit EEPROM Support CP3003

1.96 KB | March 26, 2026

ZIP

Windows XP 32 bit Board Support Packages CP3003

135.79 MB | March 26, 2026

Kontron System Function Support, Hardware Monitoring Support, Graphics Support, RAID/AHCI Support, Ethernet Support, Chipset Support, EEPROM Support

TXT

Readme Windows XP 32 bit Board Support Packages CP3003

1.15 KB | March 26, 2026

TXT

Readme Windows XP 32 bit SMB Support CP3003

2.23 KB | March 26, 2026

TXT-25

Readme Windows XP 32 bit hardware monitoring support CP3003

1.54 KB | March 26, 2026

TXT

Readme Windows XP 32 bit Kontron system function support CP3003

4.81 KB | March 26, 2026

TXT

Readme Windows XP 32 bit EEPROM Support CP3003

1.92 KB | March 26, 2026

ZIP

BSP for Wind River VxWorks 6.9.4.8

244.9 KB | March 26, 2026

ZIP

BSP for Wind River VxWorks 6.9.3.2 - patch

244.89 KB | March 26, 2026

Contains a mandatory Kontron BSP patch for usage of Kontron VXW69-BSP-B3C01 (R11) with Wind River VxWorks Edition 6.9.3.2 Platforms and Wind River Service Pack 3 ( VxWorks 6.9.3.2 ).

ZIP

BSP for Wind River VxWorks 6.9.3.2

244.91 KB | March 26, 2026

BSP for Wind River VxWorks 6.9.3.2
md5sum: e4a27d531b14a68348a004927e59634a

ISO

Fedora Live Image B3C01 R16 for CP6003, CP6003RA, CP6003RC, AM4022, CP3003, CP6004, CP6004X, CPS3003

245.12 KB | March 26, 2026

Fedora 18 live image, containing the Kontron Linux BSP for convenient and quick evaluation and installation. Please refer to the readme file in this download section for more details.
md5sum: 302e938f96ad9ab81138323a236773d6

PDF

Readme for Fedora Live Image B3C01 R16

79.81 KB | March 26, 2026

Readme for Fedora Live Image B3C01 R16. Please download and read this document, before downloading the Fedora Live Image B3C01 R16.

ZIP

Wind River Linux 5.0 BSP 64-bit for B3C01 platform

244.91 KB | March 26, 2026

BSP for Wind River Linux 5.0 / 64 bit md5sum: 75cafee9bd1c675d4cc7cfc7b36b284a

Variants

Select variants here

CP-RIO3-04

CP-RIO3-04

Rear I/O module for Kontron 3U CPCI CPU blades

The CP-RIO3-04 is the Rear Transition Module for usage with the CP3004, CP3005, and the CP3010 3U Compact PCI CPU boards. This Module provides access to the I/O's from the back of the system. The CP-RIO3-04 is available as single slot (4HP) or dual slot (8HP).

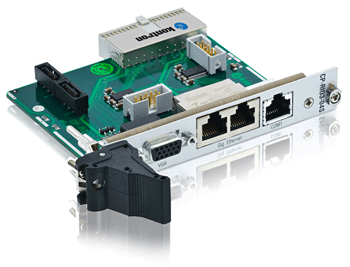

CP-RIO3-04S

CP-RIO3-04S

Rear I/O module for Kontron 3U CompactPCI CPU blades

The CP-RIO3-04S is a 4HP Rear Transition Module for usage with the CP3004, CP3005, and the CP3010 3U CompactPCI CPU board. The Module provides access to the I/Os from the back of the system.
