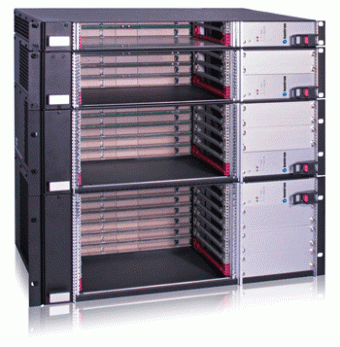

CP-XL Series

Slimline 19" Racks for 6U CPCI Cards
  • 1U, 2U, 3U, 4U enclosures with horizontal slots
  • For rugged and cost effective solutions
  • Efficient side-to-side cooling
  • Power Supplies: load sharing and hot swap

The CP-XL series enclosures provide flexible, slimline and cost effective platforms for 6U CompactPCI solutions.

Designed for Network Infrastructure, or Military Equipment manufacturers, CP-XL1 (1U), CP-XL2 (2U), CP-XL3 (3U), and CP-XL4 (4U) have already been delivered with Kontron 6U Intel and PowerPC processors, PMC and IO boards.

Ask for your CP-XL based solution ready for field deployment right away out of the Kontron factory.
Our production teams are prepared to take over the CPCI boards integration and your software installation on request.


19" Rack Mounting CAbinet / ETSI mount
Backplanes 2, 4, 6, 8 Slot for 6U CPCI
Cooling Left to right fan
Depth 275 mm
Drives CPU onboard only
Housing 84 HP / 1, 2, 3, or 4 U
Packet Switched Backplane option
Power Supply up to 3x P47 series



Datasheet CP-XL Series
[ cp-xl-series_20180605_datasheet.pdf, 1.47 MB, Jun.05.2018 ]

CP3-SVE-P200AC Datasheet
[ cp3-sve-p200ac_datasheet.pdf, 599.64 KB, May.10.2021 ]


Generic Power Supply Manual
[ 24139_cpci_psu_rev--1-0_2021-05-06_w2016.pdf, 2.04 MB, Apr.20.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]


Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]


CP3-SVE-P200AC Positronic47 AC Power Supply Unit for 3U more
