3U CompactPCI Carrier KIT for 2.5” HDD/SSD
  • Flexible mounting into 3U and 6U card cages
  • SATA 3Gb/s
  • Rugged design
  • Hot pluggable HDD/SSD carrier boards
Download Datasheet

The CP-HDD-S-KIT enables flexible up-to-date SATA 3Gb/s storage solutions for CompactPCI applications.

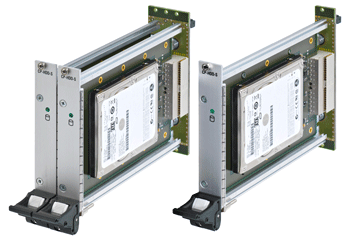

The kit consists of one or two carrier boards for 2.5" HDD/SSD, a related backplane, and a SATA connecting cable to the standard CompactPCI backplane. The versatile design allows the CP-HDD-S-KIT to be installed in all 3U or 6U CompactPCI card cages.


Data Rate Up to SATA II (300 MByte/s)
Form Factor 3U / 4HP with one carrier board or
3U / 8HP with two carrier boards
Hot Swap Yes
Operation Temperature -40°C to +85°C (without HDD or SSD)



Datasheet CP-HDD-S-KIT
[ datasheet_cp-hdd-s-kit_2017-06.pdf, 814.58 KB, Aug.31.2017 ]


CP-HDD-S-KIT User Manual
[ 1027-5348_20_sk-man-cp-hdd-s-kit.pdf, 876.17 KB, Sep.11.2017 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]


Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
