CP-ASM6-P47

Ready available 6U CompactPCI® Card Cages
Specifications
  • 19" racks with rear I/O and fans
  • Redundant AC or DC power supplies
  • Built-in 8 slot backplane with hot-swap support
  • EMI protected and CE compliant
  • Device bay option for 3.5-inch and 5.25-inch devices

The complete 6U CompactPCI solution!

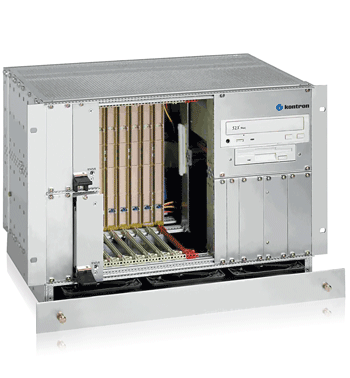

CP-ASM6 is a series of ready integrated high quality standard card cages for 6U CompactPCI®.

The 6U enclosure is made from anodized/chromed aluminium and integrates up to four P47 power supplies and an eight slot backplane. A 1U fan tray at the bottom side carries three cooling fans with sensored outputs.
The ready integrated card cage is designed to meet the requirements associated with rugged environments and varying ambience.

Features

Depth 275 mm
19" Rack Mounting Cabinet or Wall mount
Backplanes 4, 8 or 16 Slot
Drives DVD / HDD / FDD optional
Power Supply up to 6x P47 series
Cooling Bottom to top fan
Housing 84 HP / 6U
Packet Switched Backplane optional
H110 optional

Downloads

Datasheets

Datasheet CP-ASM6
[ cp-asm6_020210302_datashett.pdf, 593.52 KB, Mar.02.2021 ]

CP3-SVE-P200AC Datasheet
[ cp3-sve-p200ac_datasheet.pdf, 599.64 KB, May.10.2021 ]

CP3-SVE-P200DC-48V Datasheet
[ cp3-sve-p200dc-48v_20210126_datasheet.pdf, 1.18 MB, Feb.01.2021 ]

CP-BP-KIT Datasheet
[ cp-bp-kit_20210218_datasheet.pdf, 430.08 KB, Feb.18.2021 ]

CPCI backplanes General Datasheet
[ cpci-backplanes-general-datasheet.pdf, 3.44 MB, Feb.18.2021 ]

Manuals

Generic Power Supply Manual
[ 24139_cpci_psu_rev.-1.0_2021-05-06_w2016.pdf, 2.04 MB, May.06.2021 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]

Technical Info

Power Requirements for CPCI Boards
[ cpci_manual_technical.info_power.requirement.pdf, 38.05 KB, Nov.27.2013 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

Accessories

CP3-SVE-P200AC
CP3-SVE-P200AC
CP3-SVE-P200AC Positronic47 AC Power Supply Unit for 3U more
CP3-SVE-P200DC
CP3-SVE-P200DC
CP3-SVE-P200DC Positronic47 DC Power Supply Unit for 3U more
CP-BP-KIT

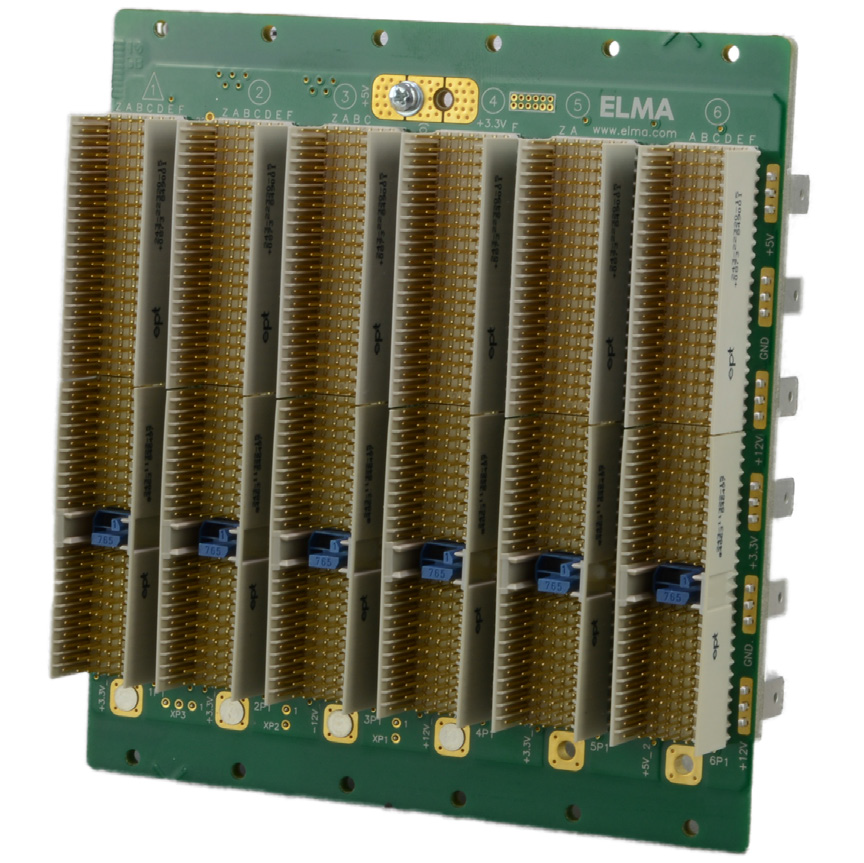

CP-BP-KIT CPCI Backplane Kits with Power Connectors more
