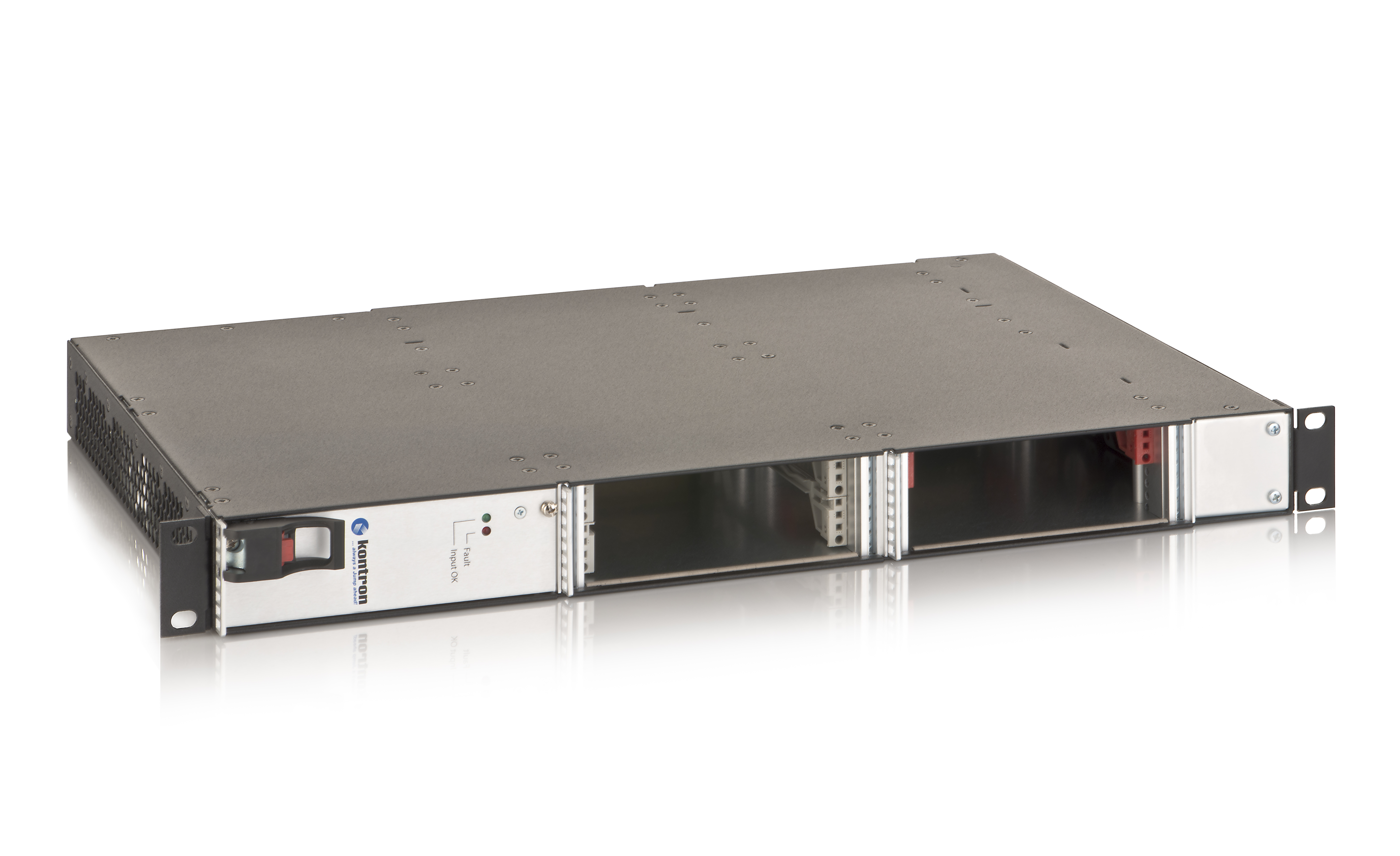

CP-ASM1 Low Profile Rack

19" Rackmount: 3 CPCI Slots at only 1U Hight
Specifications
  • For CPU and 2 peripheral boards
  • PSU, fans, backplane ready integrated
  • Efficient side-to-side cooling
  • Options for Rear-I/O and shelf management

The 19" card cage is the perfect low profile solution for horizontal mounting of 3U CompactPCI boards: A system controller, two peripheral boards, and rear I/O transition modules if needed.

The rack-mount housing with backplane and cooling fans is available with black outside coating (RAL9005), completely mounted, wired, and tested, with a 200 W Kontron power supply. Integrated cooling fans provide for air stream from CPU side to power supply side.

A shelf manager unit is provided as separate option.

Downloads

Datasheets

Datasheet CP-ASM1 Low Profile Rack
[ cp-asm1_lowprofilerack_20170727_datasheet.pdf, 1.24 MB, Aug.31.2017 ]

CP3-SVE-P200AC Datasheet
[ cp3-sve-p200ac_datasheet.pdf, 599.64 KB, May.10.2021 ]

Manuals

Generic Power Supply Manual
[ 24139_cpci_psu_rev--1-0_2021-05-06_w2016.pdf, 2.04 MB, Apr.20.2023 ]

General Safety Instruction
[ general-safety-instructions.pdf, 628.88 KB, Aug.02.2024 ]

Technical Info

Power Requirements for CPCI Boards
[ cpci_manual_technical-info_power-requirement.pdf, 38.05 KB, Apr.20.2023 ]
