CompactPCI 1U 84HP 2 Slots Datasheet
801.25 KB | March 26, 2026
CompactPCI 4U 84HP 8 Slots
Dual 300 W cPCI PSU, removable fan tray, hot-swap
- 2 slots, 64-bit / 33 MHz, system slot left, rear I/O
- 250 W hot-swap PSU, 90–264 VAC
- Outputs: 3.3 V/25 A, 5 V/25 A, +12 V/5 A, –12 V/1 A
- Removable fan tray, 4 fans (13.1 CFM), LEDs, left-to-right airflow
- 1U × 84HP × 283 mm, 19″ rack-mount
Product Information

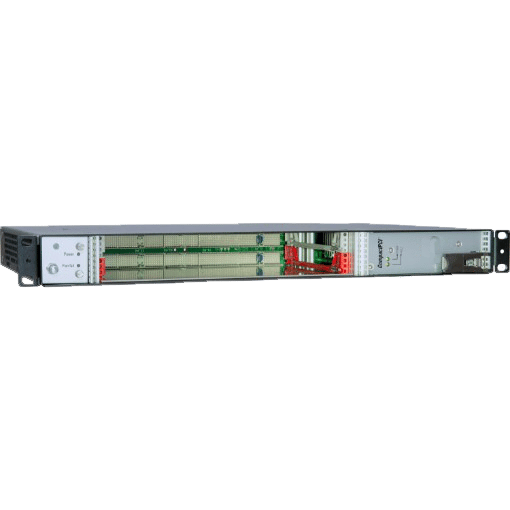

This 1U CompactPCI chassis packs full functionality into a slim form factor, delivering modular, high-performance capabilities in even the most space-limited installations. Rugged, serviceable, and ready to deploy in industrial, embedded, and mobile systems.
