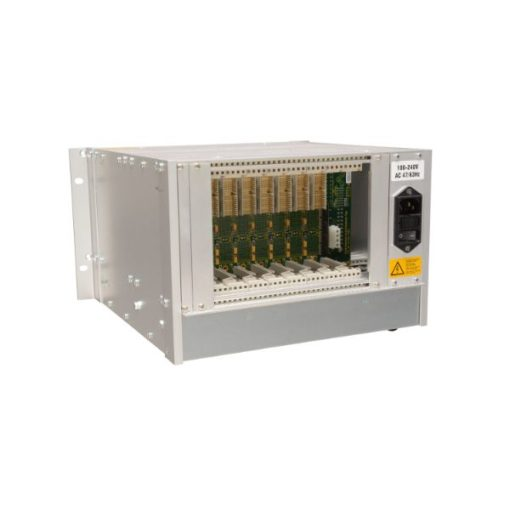

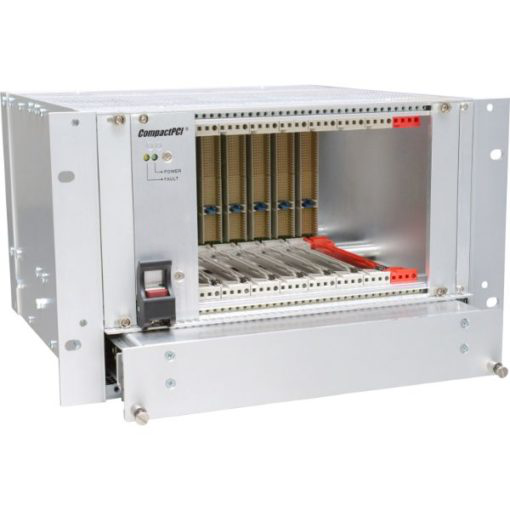

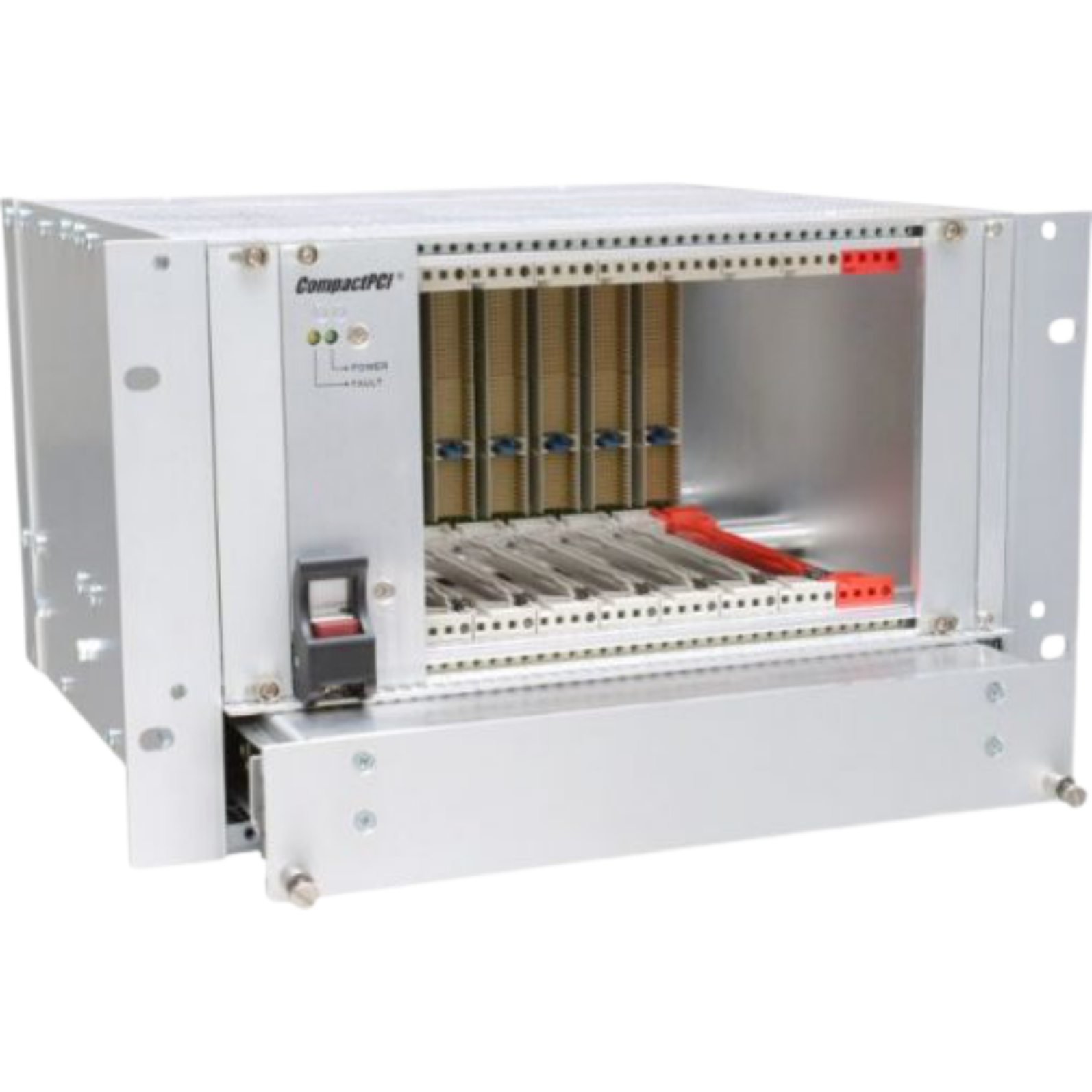

CompactPCI 4U 50HP 8 Slots
High-performance 4U CompactPCI rack-mount chassis featuring an 8-slot 3U backplane (5 V I/O), optimized for rugged, EMC-sensitive environments in industrial or embedded use cases.
Specifications
- 8 slots, 32-bit / 33 MHz, system slot right, rear I/O
- 300 W PSU, 90–264 VAC
- Outputs: 3.3 V/40 A, 5 V/40 A, +12 V/10 A, –12 V/2 A
- Removable 1U fan tray, 2 × 92 mm fans, bottom-to-top airflow

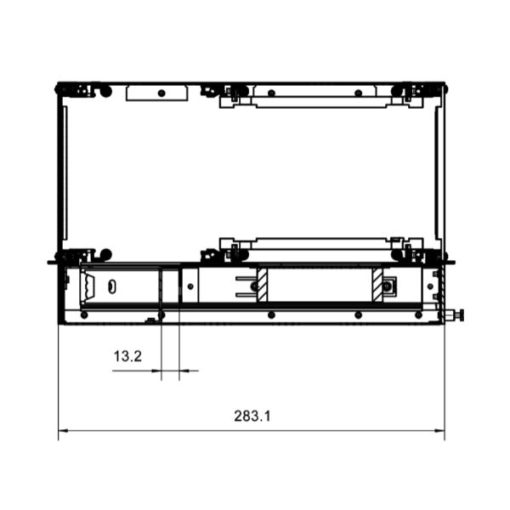

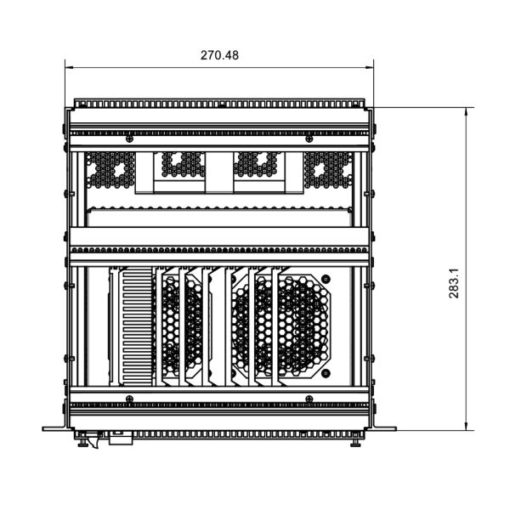

- 4U × 50HP × ~283 mm, rack-mount
- IEEE 1101.1/10/11, IEC 60297-3, enhanced EMC
This CompactPCI system platform delivers high-density card performance in a 4U rack-mount format with a reliable 300 W power source and effective thermal management. Rugged and EMC-optimized, it’s tailored for mission-critical industrial and embedded applications where durability and reliability are paramount.
Features
| Features | Eight-slot backplane with 5 V I/O for maximum card density. Robust 300 W cPCI power supply, wide-range AC input. Optimized cooling via a 1U, bottom-to-top airflow fan tray. Designed for harsh environments, with industrial IEEE/IEC compliance and EMC enhancements. Ready to use out of the box, fully assembled, wired, and tested |
Downloads
Datasheets
CompactPCI 4U 50HP 8 Slots Datasheet
[ compactpci-4u-50hp-8-slots.pdf, 2.19 MB, Oct.27.2025 ]
Manuals
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Variants
|
CompactPCI 4U 50HP 8 Slots LMH0000880 |
|
4U 50HP CPCI 8 Sl 300W |
