CompactPCI 4U 42HP 7 Slots Datasheet
1.04 MB | March 26, 2026

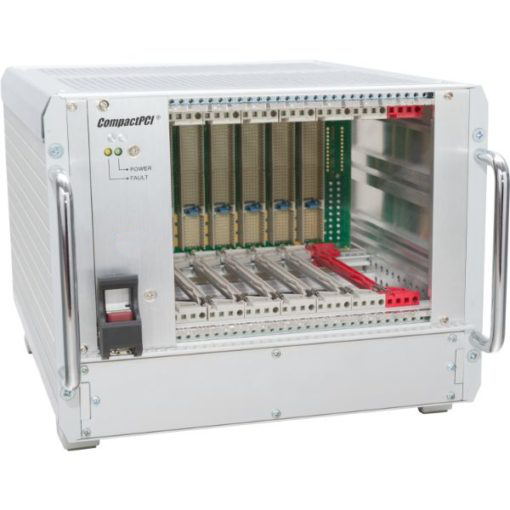

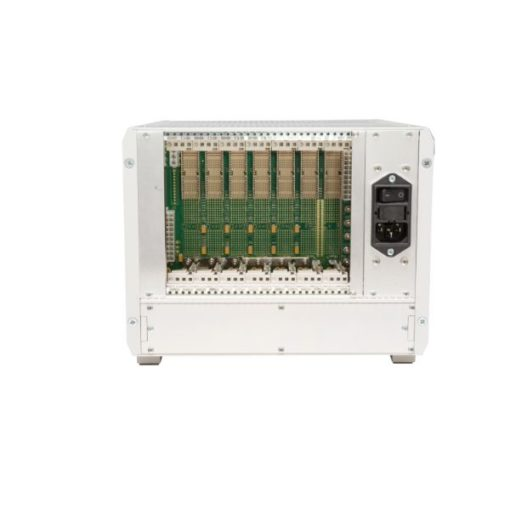

CompactPCI 4U 42HP 7 Slots
Versatile 4U desktop CompactPCI chassis with a 7-slot backplane, available in 3.3 V or 5 V I/O configurations. Designed for vertical board orientation, it offers a compact, rugged solution for customizable industrial systems.
- 7 slots, 32-bit / 33 MHz, system slot right, rear I/O, 3.3 V/5 V I/O

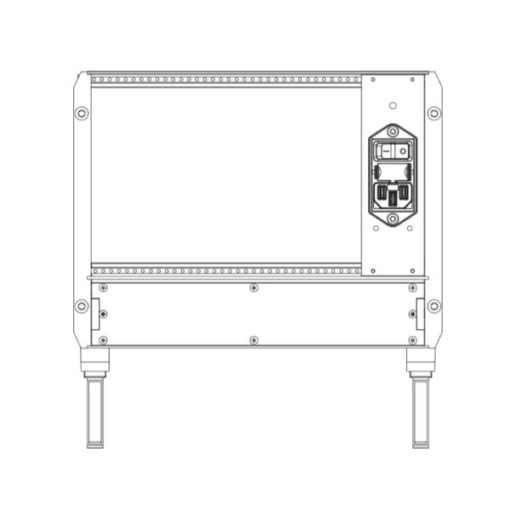

- 300 W PSU, 90–264 VAC, switch + EMI filter
- Outputs: 3.3 V/25 A, 5 V/25 A, +12 V/7 A, –12 V/2 A
- Fixed bottom fan tray, 2 × 12 V fans, bottom-to-top airflow

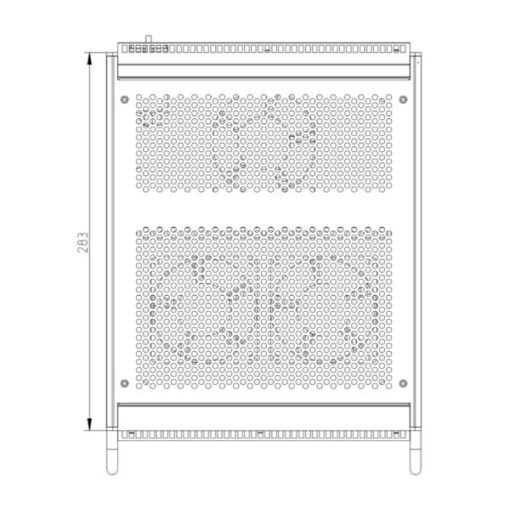

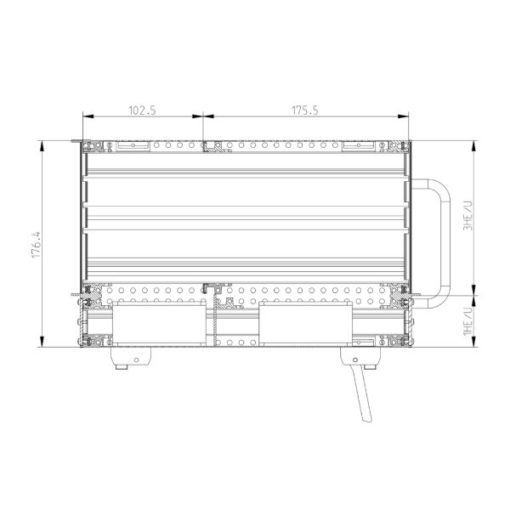

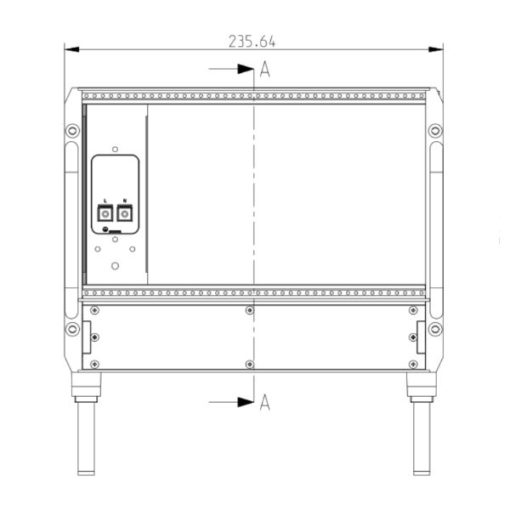

- 4U × 42HP × 278 mm, desktop form factor
Product Information
A flexible and sturdy desktop CompactPCI chassis, combining a customizable I/O backplane with compact dimensions and robust mechanics. Its fixed fan tray and integrated 300 W power supply make it a reliable solution for embedded and industrial applications needing high-density card capacity in a small footprint.
Technical data
| Features | Dual I/O options—choose between 3.3 V or 5 V backplane to suit your card requirements. Reliable single 300 W cPCI power unit with integrated safety components (switch, fuse, EMI filter). Fixed fan tray design offers effective bottom-to-top cooling while ensuring simplicity. Compact 42 HP desktop form factor ideal when rack space is limited. Rugged, industrial-grade build, compliant with mechanical and railway certifications. |
|---|
