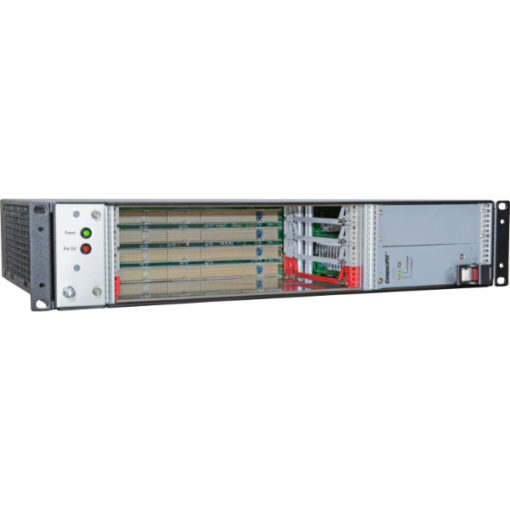

CompactPCI 2U 84HP 4 Slots
A compact yet robust 2U rack-mount chassis with 4-slot CompactPCI backplane, featuring rear I/O and hot-swappable power—ideal for dense, industrial-grade computing deployments.

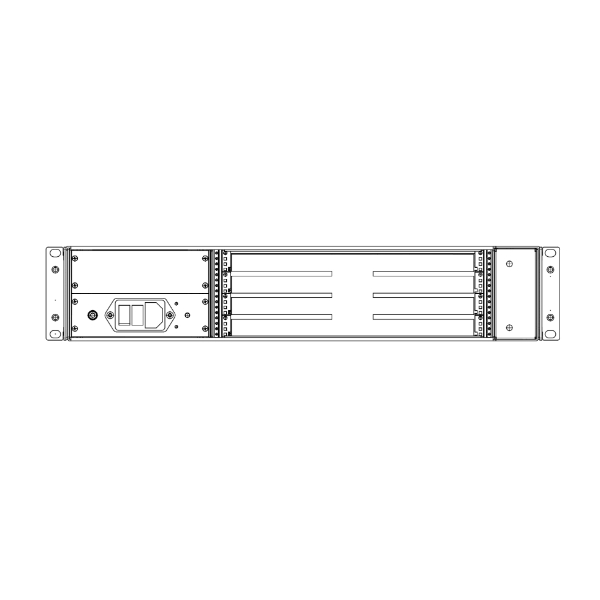

- 4 slots, 64-bit / 33 MHz, system slot left, rear I/O
- 300 W hot-swap PSU, 90–264 VAC
- Removable fan tray, 3 fans (36.4 CFM each), dust filter, LEDs
- 2U × 84HP, 19″ rack-mount
- Compliance: IEEE 1101.1/10/11, IEC 60297-3, enhanced EMC
Product Information
This 2U, full-width CompactPCI chassis combines platform density with ruggedized reliability. Equipped with hot-swappable power and efficient cooling in a compact enclosure, it's engineered for demanding industrial and embedded systems where space efficiency and serviceability are paramount.
Technical data
| Features | 4-slot CompactPCI backplane with 64-bit, 5 V I/O and rear I/O support. High-capacity 300 W hot-swap cPCI PSU for uninterrupted operation. Removable fan tray with dust filter and LED indicators for easy service. Efficient, low-noise airflow design with three high-performance fans. Pre-assembled, rugged mechanics meeting EMC and industrial standards. |
|---|
