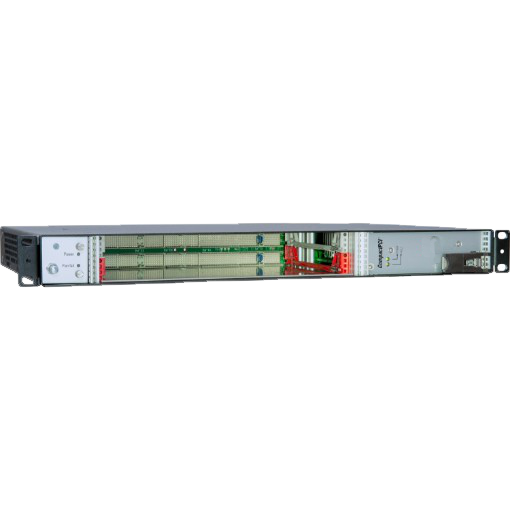

CompactPCI 1U 84HP 2 Slots
Ultra-compact, full-width 1U CompactPCI chassis with a 2-slot backplane and rear I/O — built for high-performance CompactPCI-based systems in space-constrained industrial and embedded applications.

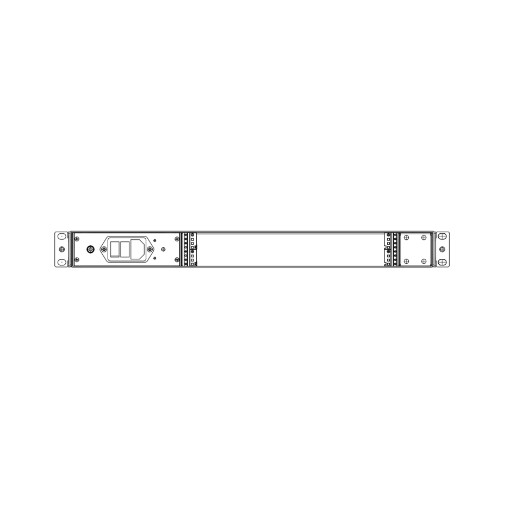

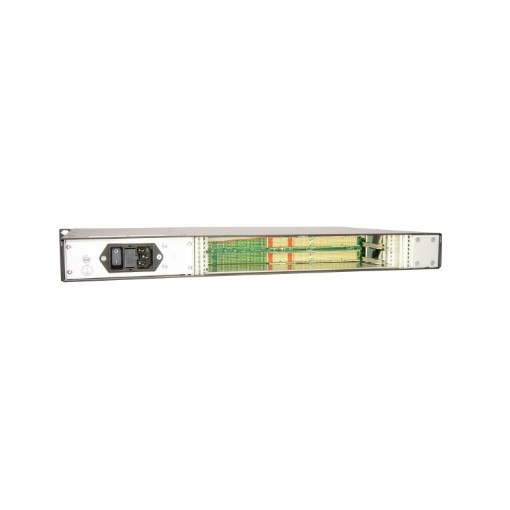

- 2 slots, 64-bit / 33 MHz, system slot left, rear I/O
- 250 W hot-swap PSU, 90–264 VAC
- Outputs: 3.3 V/25 A, 5 V/25 A, +12 V/5 A, –12 V/1 A

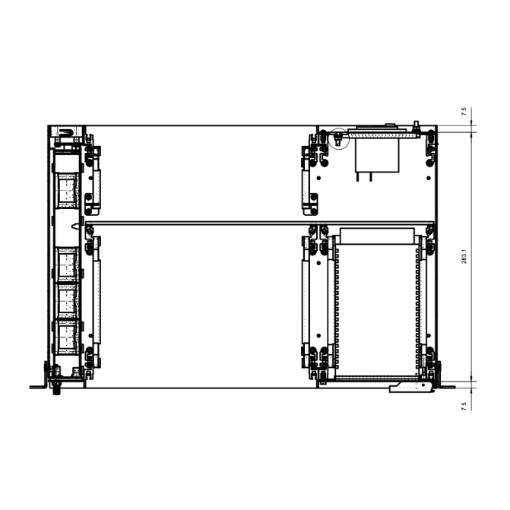

- Removable fan tray, 4 fans (13.1 CFM), LEDs, left-to-right airflow

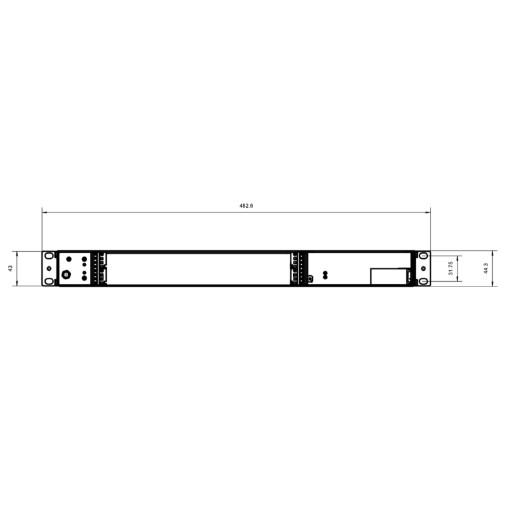

- 1U × 84HP × 283 mm, 19″ rack-mount
Product Information
This 1U CompactPCI chassis packs full functionality into a slim form factor, delivering modular, high-performance capabilities in even the most space-limited installations. Rugged, serviceable, and ready to deploy in industrial, embedded, and mobile systems.
Technical data
| Features | Compact design (1U / 84HP) ideal for tight rack spaces. Hot-swappable 250 W cPCI PSU for uninterrupted operation. Rear I/O configuration with P47 connector for simplified cabling. Removable fan tray with LED indicators for easy maintenance and monitoring. Rugged chassis compliant with industrial, military, and railway standards. |
|---|
