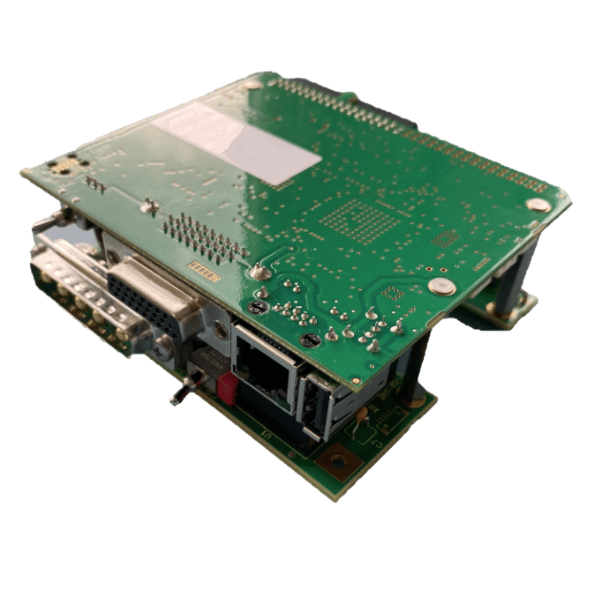

Compact shelf manager CML 3Ux8HP DC
The Compact Shelf Manager / CML 3U x 8HP DC is a low-profile system manager designed for CompactPCI®, Serial, VPX, and VME chassis.
- Low-profile design suitable for 3U chassis
- Comprehensive monitoring and control functionalities
- Programmable thresholds for various parameters
- Supports multiple communication protocols for remote access
- Real-time data processing via onboard DSP
Product Information
It provides comprehensive monitoring and control functionalities, including power supply control, fan management, and temperature monitoring, all accessible via Ethernet and USB interfaces.
The Compact Shelf Manager / CML 3U x 8HP DC offers a comprehensive solution for managing and monitoring chassis systems. With its low-profile design and extensive control capabilities, it ensures optimal performance and reliability of the system.
Technical data
| Features | Form Factor: 3U x 8HP System Connection: 2 mm high-density connector Power Supply: Internal auxiliary 5V power supply Input Voltage: DC input voltage (Vin=18-36V) Control Interfaces: Ethernet (IEEE 802.3, 10BASE-T, 100BASE-TX), USB (galvanically isolated) Monitoring & Control: • Programmable trip thresholds for voltage, current, power, and temperature • Fan control for up to 6 fans with programmable speed • Temperature measurement via 1-wire bus for up to 6 digital sensors • Digital inputs and outputs: 8 x TTL each Communication Protocols: SNMP, embedded web server Digital Signal Processor: For real-time processing of all measured data Part Number: 1H0000418C |
|---|
