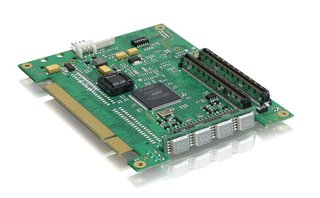

COMe Debug Card T2

COM Express® Debug Card for Type 2, basic featureset
Specifications
  • Tool for Carrier Board Developers
  • COM Express® Pin-out Type 2 Post-Code Output
  • Plug-in as sandwich or slot card
  • LPC and PCI bus

Debug Card

Identify POST codes during boot-up process of COM Express® Computer-on-Modules. The card can either be plugged as intermediate layer between Carrier Board and a COM Express® module or used as extension card on a PCI slot. POST code is read out via LPC or PCI bus and display on a segment display.


Please refer to EMD Customer Section for manual and schematics.

Downloads

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]

More Downloads

All other downloads such as drivers, bios, drawings etc. are available on Kontron’s Customer Section

Variants

COMe POST T10
96006-0000-00-1
COM Express POST Code and Debug Card for Type 10
COMe POST T6
96006-0000-00-2
COM Express POST Code and Debug Card for Type 6
