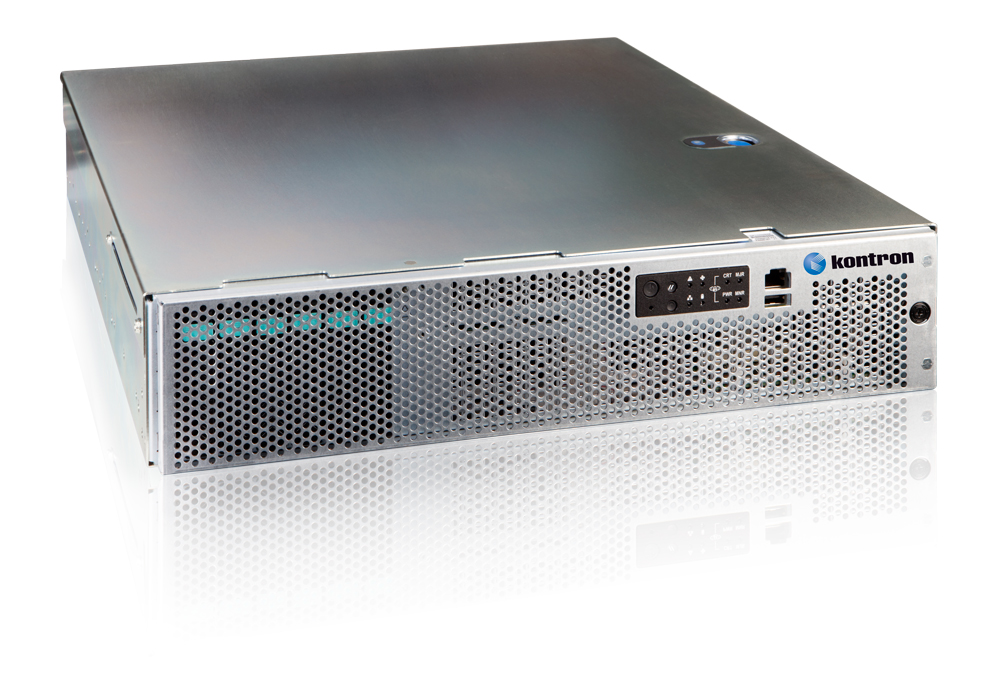

CG2200 Carrier Grade Server

2U Carrier Grade Server

Dual Intel® Xeon® E5-2600 v2 10-Core Series (20C, 40T per 2S E5 system)
16 slot, 4 channel support of DDR3 RDIMM/UDIMM;
supports 256GB maximum (with 16GB DIMM)
Optimized for PCI-E IO card implementation with PCI-E riser and LP card support;

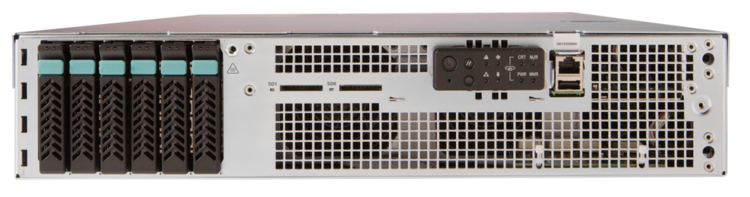

Hot-Swap 2.5” SAS HDDs / SATA SSDs

Request product Download datasheet

Dual 8-Core Intel Xeon E5-2600 Processor Series

The Kontron CG2200 carrier grade communication rack mount server will support Dual Intel® Xeon® E5-2600 v2 10-Core Series (20C, 40T per 2S E5 system).

Telecom, network and broadcast equipment vendors seeking new high performance system level designs will appreciate the boost in dual-socket, 10-core processing power, complemented by an optimized I/O and storage feature set, with either dual redundant AC or DC power options.

This 20” deep ruggedized server is built to meet NEBS level-3 compliance and is backed by an extended lifecycle.

Technical support

Technical data

Processor	TYPE Dual 10-Core Intel® Xeon® Processor E5-2600 v2 Family CHIPSET Intel® C600 Chipset

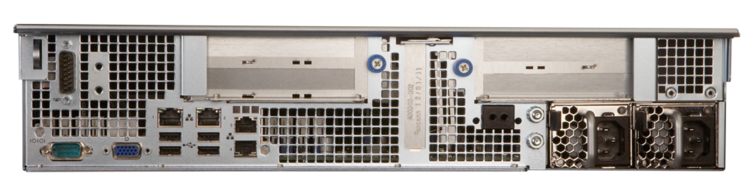

Ports	SERIAL PORTS RJ-45 serial connector in front and one DB-9 connector in rear VIDEO PORT One DB-15 video connector (rear) USB 2.0 PORTS Five (5): one front / four rear MANAGEMENT PORTS One RJ-45 connector to support optional Intel® Remote Management NIC
Main Memory	TYPE DDR3 technology at 1066/1333/1600 MT/s DIMM SLOTS Sixteen (16) RDIMM or UDIMM slots CAPACITY 256 GByte (non-mirrored mode with 16 GByte DIMMs)
Dimensions (H x W x D)	3.45 inches (87.6 mm) x 17.14 inches (435.3 mm) x 20 inches (508 mm)
Temperature	TEMPERATURE, OPERATING 5 °C to 40 °C (41 °F to 104 °F) TEMPERATURE, NON-OPERATING -40 °C to 70 °C (-40 °F to 158 °F)

Downloads

BIOS

ZIP

CG2200 ~Current Release~

31.21 MB | March 26, 2026

SUP20 - This update package includes the following system software updates: ~UPDATED~ Apr. 2019

- BIOS 02.06.0007

- ME Firmware 02.01.07.328

- BMC Firmware 01.28.r10603

- FRUSDR 08

Please read the CG2200_SUPxx_Update_Instructions.txt carefully prior to updating the firmware on your system.

IMPORTANT: Do not power off or reset the system while the update is in progress. Do not interrupt the BIOS POST during the first system reboot.

Download

ZIP

CG2200 ~Previous Release~

24.44 MB | March 26, 2026

SUP19 - This update package includes the following system software updates: ~UPDATED~ Apr. 2019

- BIOS 02.06.E006

- ME Firmware 02.01.07.328

- BMC Firmware 01.28.r10603

- FRUSDR 08

Please read the CG2200_SUPxx_Update_Instructions.txt carefully prior to updating the firmware on your system.

IMPORTANT: Do not power off or reset the system while the update is in progress. Do not interrupt the BIOS POST during the first system reboot.

Download

Service

PDF

Kontron Services Brochure

8.9 MB | March 26, 2026

Download

PDF

MDDS

107.19 KB | March 26, 2026

Download

PDF

Baseboard Technical Product Specification

4.1 MB | March 26, 2026

Download

PDF

CG2200 Configuration Guide

1.69 MB | March 26, 2026

Download

PDF

Tested Hardware and Operating System List (THOL) Revision 1.8

446.12 KB | March 26, 2026

Download

PDF

Tested Memory List

51.06 KB | March 26, 2026

Download

PDF

China RoHS

210.81 KB | March 26, 2026

Download

PDF

How to configure and install CG2200 without a CD/DVD drive

620.45 KB | March 26, 2026

Download

PDF

EMC TEST REPORT

3.71 MB | March 26, 2026

Download

ZIP

Kontron Deployment Assistant (KDA) image for SD media

244.88 KB | March 26, 2026

Download

PDF

CG2200 System Technical Product Specification (TPS)

5.3 MB | March 26, 2026

Download
