This product is legacy and no longer actively supported.

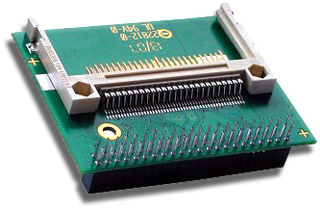

CF-CARD-Adapter MOPSlcdLX
CF-CARD to IDE (44pin) interface
- CF-CARD to IDE (44pin) interface
- Cableless installation
- Supports Type I/II CF Card and Micrdrive
- Master or Slave via Chip Jumper
- 42 x 53 mm without CF Card or Microdrive.
No moving parts!
The CF-CARD-Adapter MOPSlcdLX Adaptor allows to use CompactFlash and Microdrive devices with PC/104 board MOPSlcdLX. It is prepared for cable less connection via a 44 pin IDE interface.
Via the additional 44 pin IDE pinheader hard drives can be connected as well as a CD-ROM drive. So it´s usable either as an embedded harddrive replacement or as exchangeable storage device .
Via the additional 44 pin IDE pinheader hard drives can be connected as well as a CD-ROM drive. So it´s usable either as an embedded harddrive replacement or as exchangeable storage device .
