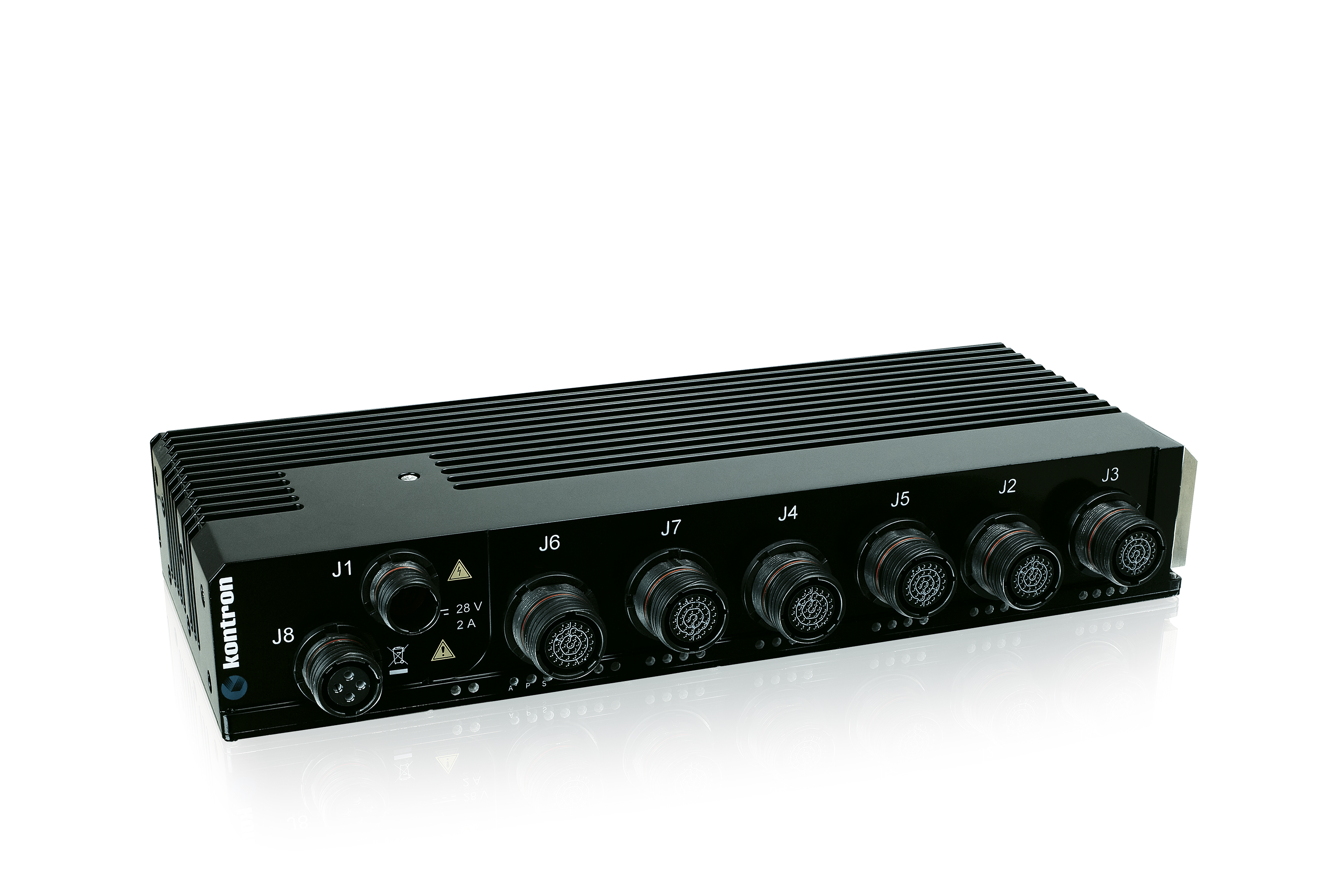

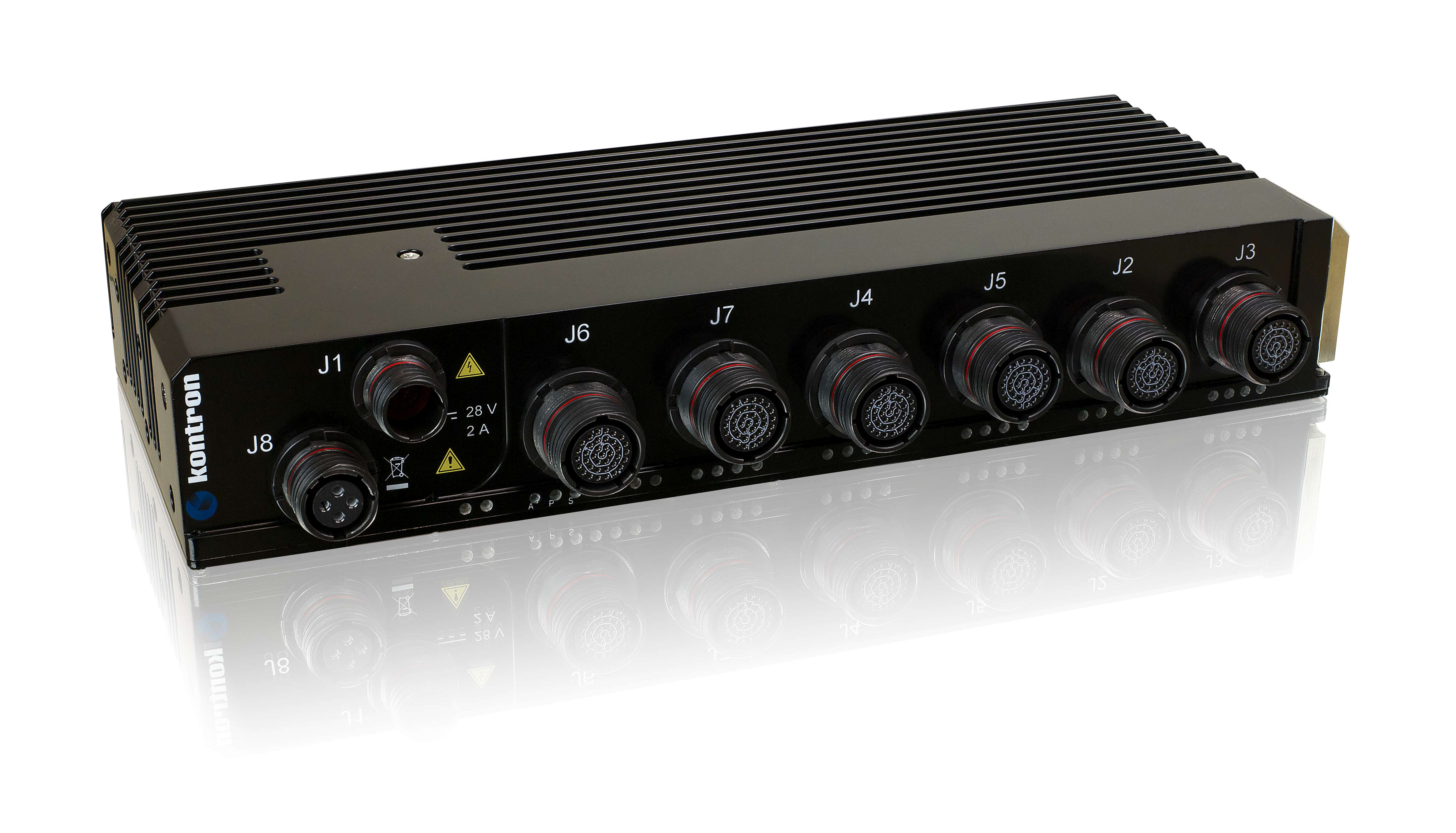

CERES-2402-PTP
Compact Embedded Rugged Ethernet Switch
Mouseover Zoom loading...
Specifications
- Fully managed non-blocking L2/L3 switch in a compact design
- Up to 24x 1G ports plus 2x 10G on 38999 type connectors
- IP65 and fanless operation
- Designed for In-Vehicle and C4I applications
26 Ports 1G/10G Ultra Rugged Ethernet Switch
Based on a switch fabric with an integrated QorIQ® management processor, Kontron CERES-2402-PTP can be monitored via SNMP over serial line or Ethernet Web based management and a comprehensive command line interface enable layer 2/3 management including full IPv6 support. The switch provides up to 44 Gbps of line-rate multi-layer forwarding, along with advanced network security, data, and video and voice services (on-request), all supported by embedded Fastpath Software. Others switching features like IP forwarding & Multicast, Routing & Switching, Quality of Service, VLANs etc. enable complex network routing. In addition, the Precision Time Protocol IEEE1588v2 features enable precise timing synchronization and packet time stamping for time sensitive applications.
For more information, visit our e-showroom!
Downloads
Datasheets
CERES-2402-PTP datasheet
[ ceres2402-ptp_20210322_datasheet.pdf, 786.14 KB, Apr.09.2021 ]
Manuals
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
