TIGH2U Datasheet
794.28 KB | March 26, 2026
This product is legacy and no longer actively supported.

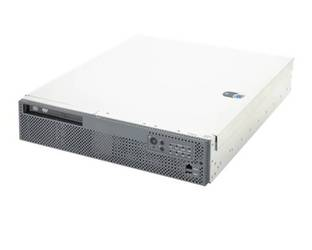

Carrier Grade Server TIGH2U
2U Carrier Grade Server for Telecom and Data Center Applications
- NEBS-3 / ETSI compliant
- Long life support (3 years)
- Short depth, ruggedized 2U chassis
- Dual, redundant AC or DC power option
- Telco alarm management
Performance and energy efficiency in a rugged, carrier-grade design
Shipping since 2008, the Carrier Grade Server TIGH2U is a NEBS-3 and ETSI-compliant 2U carrier-grade rack-mount server. It features the Intel® Xeon® processor 5400 series (with 45nm technology) to provide breakthrough performance and energy efficiency for compute- and I/O-intensive applications and workloads.
This server is an excellent choice for the demanding environment and limited space of the central office and high availability data centers. It enables Original Equipment Manufacturers (OEMs) and Telecom Equipment Manufacturers (TEMs) to create specialized, value-added solutions for a variety of telecom applications including unified messaging, Services over IP (SoIP), call control, media and signaling gateways, and operational system support.
The TIGH2U is designed to be fire-resistant and to withstand extreme heat, humidity, altitude and zone 4 earthquake shock. Advanced server management and telco alarm management features provide visual, audible (optional) and System Network Management Protocol (SNMP) event indications of faults, consistent with the rigid requirements of the telecom central office environment.
This server is an excellent choice for the demanding environment and limited space of the central office and high availability data centers. It enables Original Equipment Manufacturers (OEMs) and Telecom Equipment Manufacturers (TEMs) to create specialized, value-added solutions for a variety of telecom applications including unified messaging, Services over IP (SoIP), call control, media and signaling gateways, and operational system support.
The TIGH2U is designed to be fire-resistant and to withstand extreme heat, humidity, altitude and zone 4 earthquake shock. Advanced server management and telco alarm management features provide visual, audible (optional) and System Network Management Protocol (SNMP) event indications of faults, consistent with the rigid requirements of the telecom central office environment.
Technical data
| Power Supply | Dual-redundant 600W AC or DC hot-swap power supply (2nd power supply optional) |
|---|---|
| CPU | Dual socket support for Quad-Core Intel® Xeon® Processors E5440 (2.83GHz, 80W) and L5410 (2.33GHz, 50W) |
| Main Memory | Eight FB-DIMM slots (240-pin DDR2-533/667 MHz); Maximum 64GB memory (non-mirrored mode) |
| PCI Express / PCI support | Up to five PCI slots for flexibility and additional I/O---Low-profile riser supports two PCIe x4 slots; Full-height, full-length riser supports three slots (two PCIe x4 [or 1 PCIe x8] and one PCI-X); additional full-height riser options for PCI-X |
| Dimensions (H x W x D) | 3.45 inches (87.6 mm) x 17.14 inches (435.3 mm) x 20 inches (508 mm) |
