Card Guides

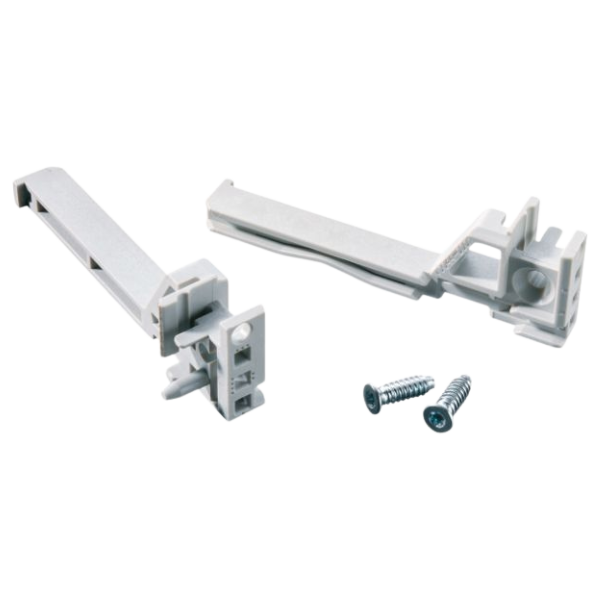

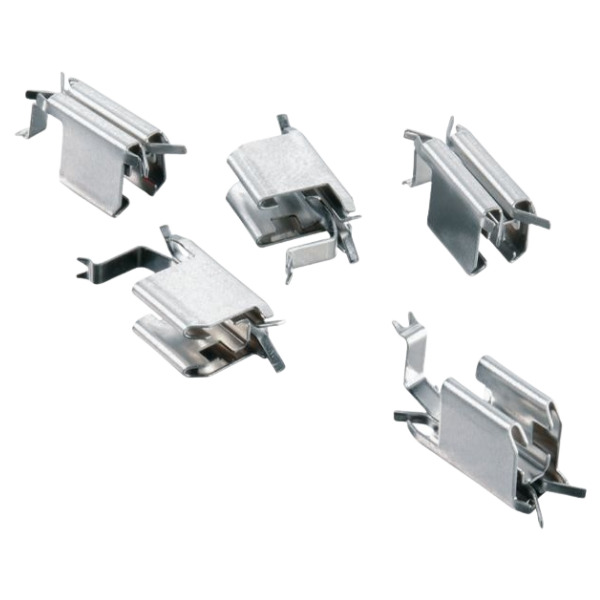

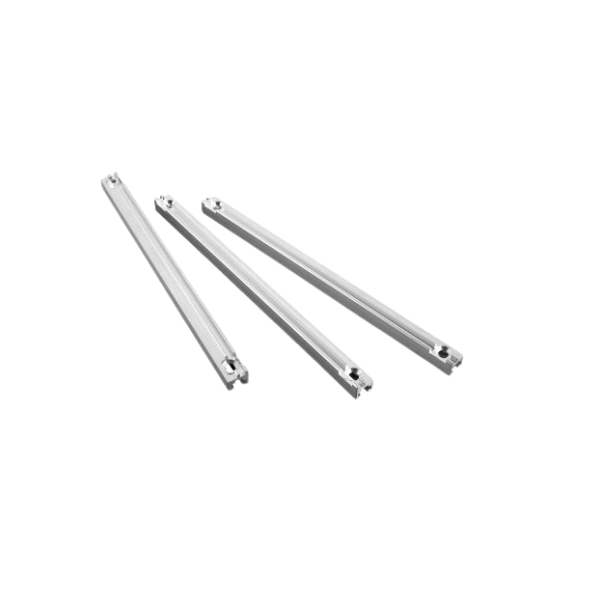

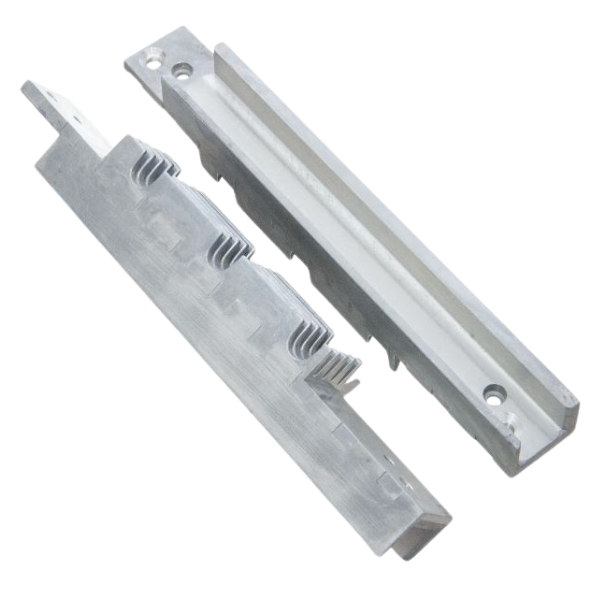

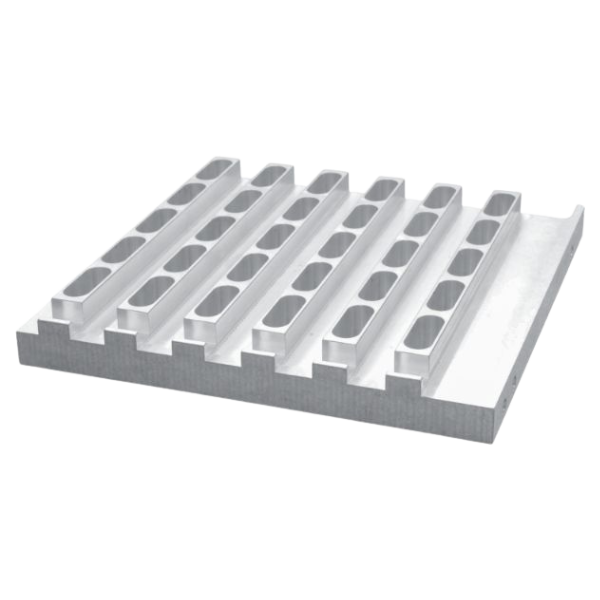

Kontron Hartmann Wiener offers robust card guides ensuring secure board mounting for CompactPCI, cPCI Serial, VPX, and VME systems, compliant with IEEE 1101.10 standards.
- Form Factor: 4HP
- Material: Polycarbonate UL 94 V-0
- Board Thickness: 1.6 – 2.0 mm

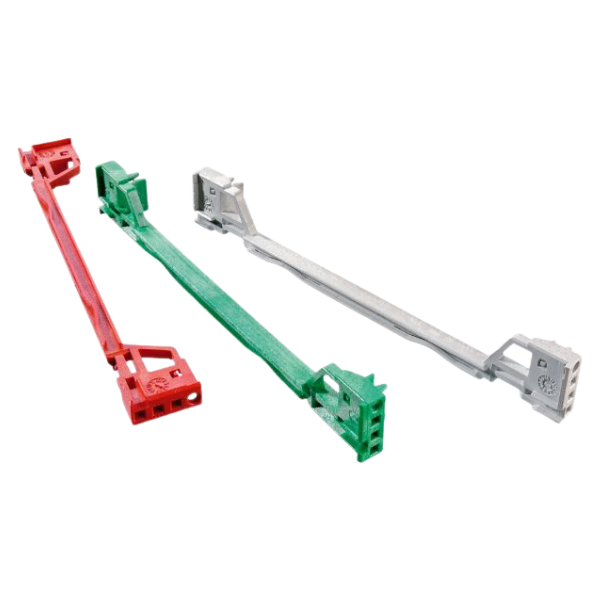

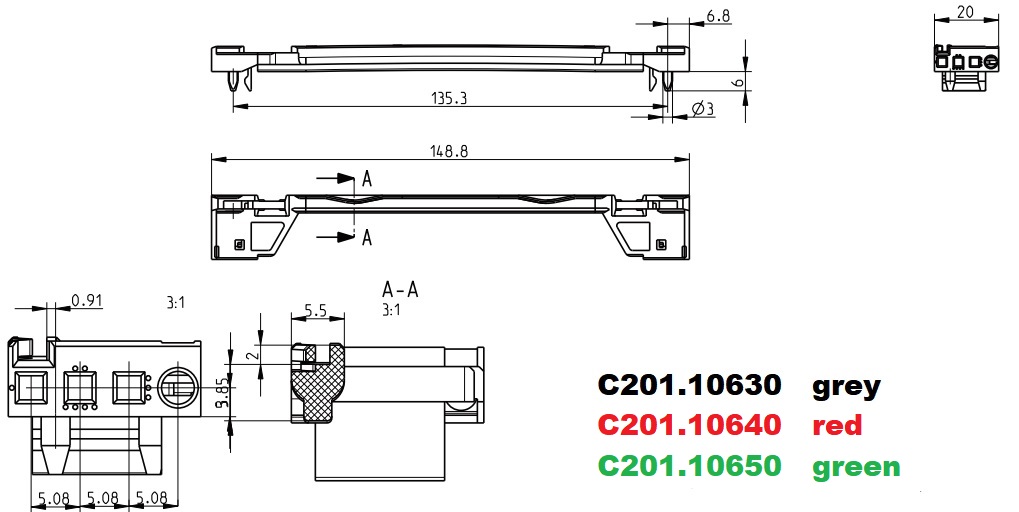

- Color Coding: Red = CPU Slot, Green = cPCI Power Supply Slot (½HP offset), Grey = Peripheral Slot
- Standards Compliance: IEEE 1101.10
Product Information
The Card Guides from Kontron Hartmann Wiener GmbH provide secure and stable mounting solutions for boards in modular system architectures such as CompactPCI, cPCI Serial, VPX, and VME. Designed for precision and durability, they comply with IEEE 1101.10 standards to guarantee mechanical compatibility across platforms. Available in various lengths, materials, and configurations, these guides ensure vibration-resistant alignment and reliable thermal management in industrial and embedded environments. Their robust construction and standard conformity make them ideal for demanding applications in automation, defense, and test systems.
Technical data
| Features | • Secure mounting for boards • Compliance with IEEE 1101.10 • Available in different colors for easy identification • Made from durable polycarbonate material • Suitable for boards with thicknesses between 1.6 and 2.0 mm |
|---|
