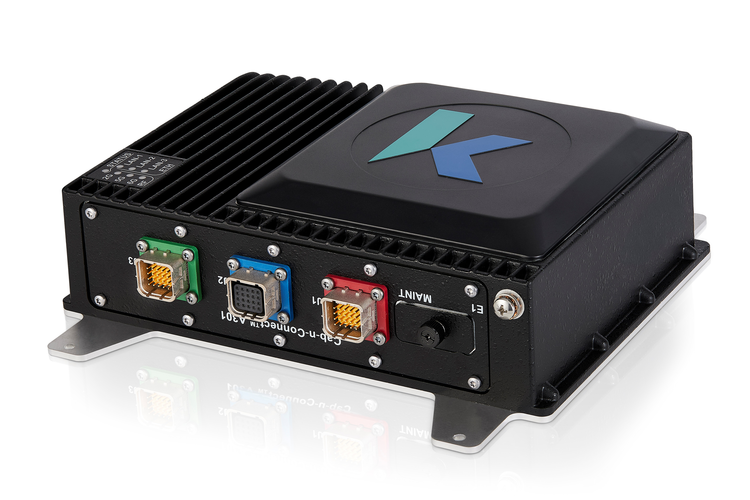

Cab-n-Connect™ A301

Cabin Wireless Access Point - 802.11be / Wi-Fi 7
Coming soon
  • 802.11 a/b/g/n/ac/ax/be backwards compatibility
  • Dedicated smart sensor for top-level security and performance
  • Support for WPA3 security certifications
  • DO-160G qualified hardware and OEM Line-Fit ready
  • ARINC 628-P1 compliant
Download Datasheet

Cab-n-Connect™ A301 – More efficient. More performance.

Kontron’s latest ARINC 628-P1 compliant CWAP, the Cab-n-Connect A301 combines powerful 802.11be Wi-Fi 7 technology, advanced security and ML/AI management capabilities into a single enterprise-class solution that allows customers to deploy high speed, highly secure Wi-Fi in the toughest aircraft environments. Optimized for multi-platform video streaming, it provides the highest level of efficiency and performance for dense, multi-client applications running within the aircraft cabin.

With aggregated data rates up to 4.8 Gbps in the 6 GHz band, concurrent 1.2 Gbps in the 5 GHz band and concurrent 573Mbps in the 2.4 GHz band, this next generation CWAP provides intelligent edge capabilities with the highest level of client services without compromising security monitoring. It has been designed with passive cooling (fanless) technology to prevent the unit from overheating and comes with worldwide operations support.

With more users, more devices, more things, more applications and more threats straining aircraft infrastructure, the Cab-n-Connect A301 was engineered to meet a multitude of ongoing challenges. The Cab-n-Connect A301 is the only avionics- certified CWAP that offers a dedicated, Tri-band sensor that continuously scans and detects security threats in real-time eliminating the risk of vulnerability or attacks, while also optimizing RF performance automatically. It delivers top-level security services, with support for the Wi-Fi Alliance’s WPA3 security certifications, TPM for secure key storage and a stateful L2-L7 DPI firewall for context-based access security.

In addition, Ace Flight ™ Connect Firmware provides ease of use and a rich feature set. It is built from best-in-class open-source router / firewall software and is further enhanced by Kontron’s integration of leading-edge security features.

The CWAP Cab-n-Connect A301 is engineered based on Kontron’s innovative architecture and modular design approach. Benefits of this approach include:

- Leveraging state-of-the-art technology, Kontron effectively minimizes dimensions, weight, and power of its CWAP hardware while many enterprise WAPs are increasing in size and energy consumption.

- The software solution is meticulously optimized for the avionics sector, ensuring enhanced management over the solution’s entire lifecycle.

- This strategic design accelerates the product’s time to market and simplifies the upgrade trajectory for forthcoming Wi-Fi technologies.



Cab-n-Connect™ A301 datasheet
[ cab-n-connect-a301.pdf, 217.25 KB, May.27.2024 ]


General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]


Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
