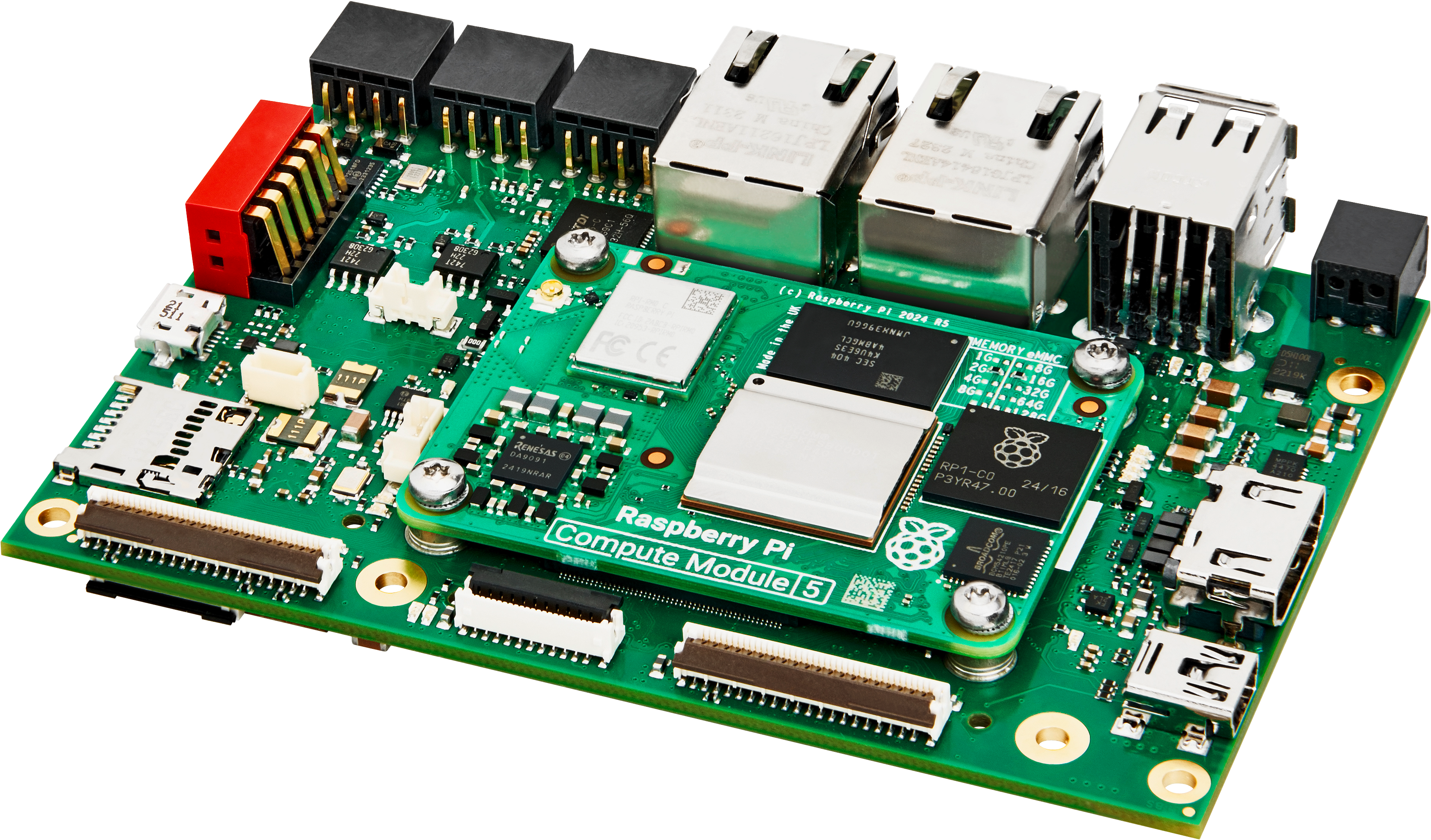

Baseboard BL Pi-Tron CM5 New

Compact computing power for various embedded and industrial applications

Specifications

Broadcom BCM2712, 4x ARM® Cortex®-A76, 64-bit SoC @2.4 GHz
4K @60 fps HEVC-Decoder OpenGL ES 3.1 graphics, Vulkan 1.2
Up to 16 GB LPDDR4-RAM, up to 64 GB eMMC
Optional Wi-Fi / Bluetooth®

The BL Pi-Tron CM5 from Kontron Electronics is based on the powerful Compute Module 5 and has been specifically developed for demanding industrial applications. The board stands out with its significantly enhanced performance and versatility, making it ideal for complex tasks. Thanks to its modern design and the wide range of system expansion options, the BL Pi-Tron CM5 can be integrated flexibly and reliably into a variety of system environments.

Performance & Architecture

A key feature of the board is the M.2 B-Key slot with PCIe connectivity, allowing for flexible expansions. The high-performance interfaces are specifically designed for industrial settings and enable reliable integration. The memory configuration ranges from 1 GB to 16 GB LPDDR4-4267 SDRAM with ECC, as well as from 0 GB (CM5 Lite) up to 64 GB eMMC flash memory, with eMMC bandwidth reaching up to 200 MBps - significantly outperforming the Compute Module 4.

Communication Interfaces

Thanks to modern communication capabilities such as PCIe Gen 2, Wi-Fi 2.4/5 GHz, and Bluetooth 5.0 BLE, the BL Pi-Tron CM5 is perfectly equipped for a wide range of application scenarios. These interfaces offer maximum flexibility and ensure straightforward integration into existing systems.

Application Areas & Advantages

The BL Pi-Tron CM5 truly excels in demanding industrial applications where high performance, expandability, and stable communication are essential. With its forward-looking design and support for open software environments, the board delivers a versatile solution for developers and businesses seeking proven and innovative technology. As a certified Raspberry Pi Design Partner, Kontron Electronics offers its customers exclusive expertise as well as direct access to the combined knowledge and innovations of the Raspberry Pi community.

Features

CPU	Broadcom BCM2712 BCM2712, Quad Core Cortex®-A76, 64-bit SoC @2.4 GHz 4K @60 fps HEVC-Decoder OpenGL ES 3.1 graphics, Vulkan 1.2

LPDDR4-RAM

2 GByte, optional 4 GByte/8 GByte

eMMC	16 GByte optional 32 GByte and 64 GByte *When using eMMC memory, booting from SD card is not possible.

EEPROM

4 kByte

SD CARD

1x microSD Card Slot for data

Ethernet

1x 1 Gbit/s, 1x 10/100 Mbit/s

USB	2x 2.0 Host, 1x 2.0 OTG: only to program eMMC

I/Os	Up to 28x GPIO, 5x UART, 5x I2C, 5x SPI, 4x PWM, 1x SDIO, M.2 B-KEY 3042 (PCIe 1-lane Host, Gen 2 (5 Gbps))

DIO	4x DIO (24 V/up to 800 mA)

Serial

1x RS232, 1x RS485 (Modbus-capable)

CAN	1x CAN 2.0B/FD

WLAN/Bluetooth

2.4 GHz/5,0 GHz IEEE 802.11b/g/n/ac wireless / BT 5.0, BLE

LCD/Camera Interface

1x MIPI 4-lane (DSI or CSI-2)
1x HDMI 2.0 (up to 4K @60 fps – HDMI-Socket) 1x HDMI 2.0 (up to 4K @60 fps – 40 pol. FFC)

Touch

via I²C or USB

Power Supply

24 V DC ±20 %

Power Consumption

TBD

Temperature range

TBD

Operating System

Raspbian, Linux (not preinstalled)

Form Factor

105.5 x 69.6 mm (4.3”)

EXTERNAL RTC

1x on Baseboard

RTC BUFFERING

CR2032

Debug

1x Console

Expansion

M.2 B-Key, Raspberry Pi GPIO-Header 40-Pin

Approvals

Hardware Options

Secure boot, hard disk encryption

Compute Module 5

CM5 complies with strict EU regulations ETSI EN 303 645 and
EN 18031 for Cyber security
Standards, with documentation and support for the definition of levels of cybersecurity standards, as defined in ISO 14508
