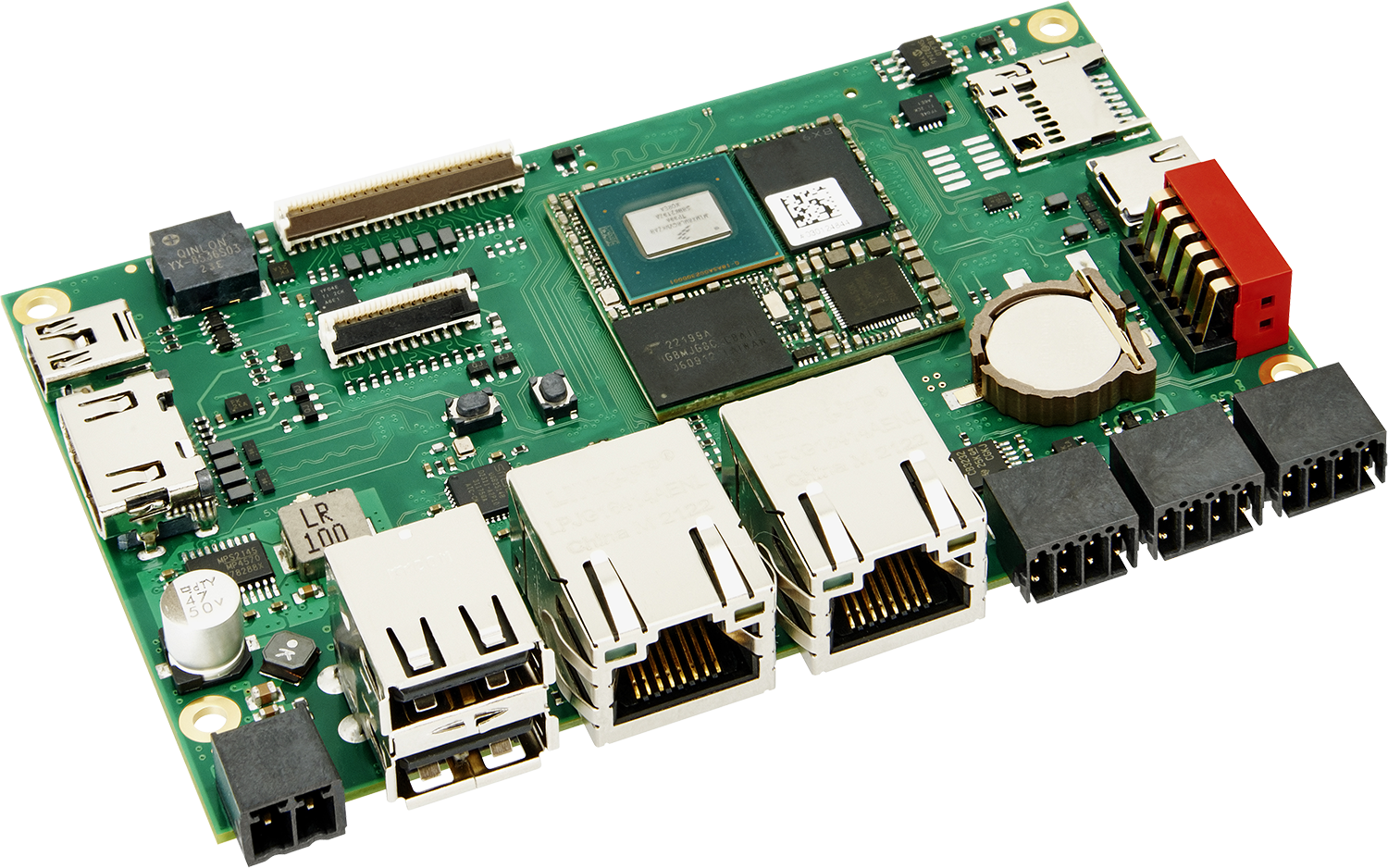

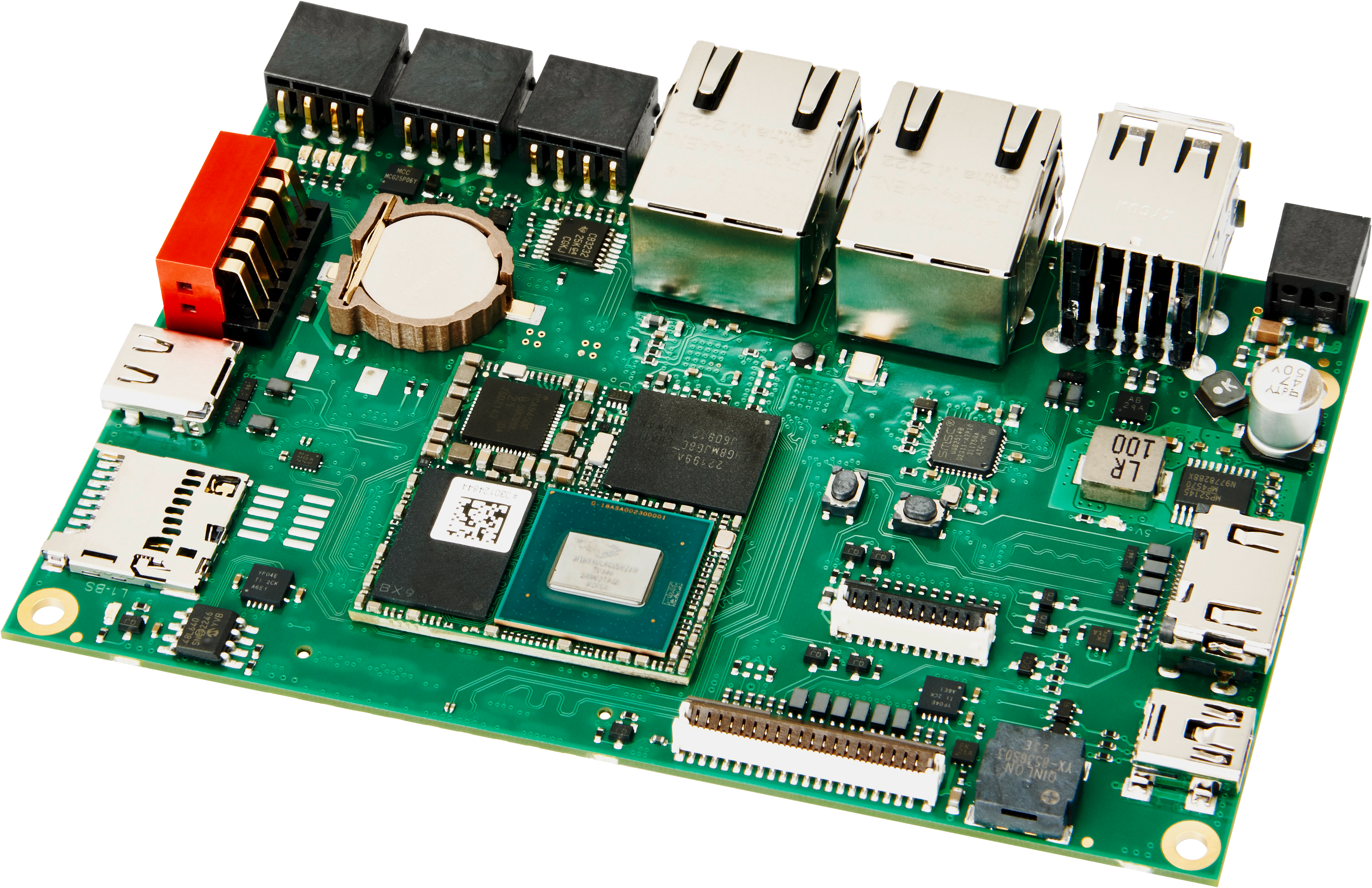

Baseboard BL i.MX8M Plus

The BL i.MX8M Plus from Kontron Electronics stands out as a compact and high-performance CPU board, specifically designed for demanding industrial and AI applications. With its well-balanced combination of performance and energy efficiency, the board is suitable for a wide range of applications and supports state-of-the-art solutions.

Performance & Architecture

At the core of the BL i.MX8M Plus lies the NXP i.MX8M Plus SoC, equipped with four Arm® Cortex®-A53 cores clocked up to 1.6 GHz. Additionally, it integrates a Neural Processing Unit (NPU) offering 2.3 TOPS, enabling real-time AI and machine learning tasks. While up to 8 GB LPDDR4 RAM and up to 128 GB eMMC storage provide the necessary resources for data-intensive processes. Thanks to the inclusion of both 2D and 3D GPUs and a powerful VPU with H.265 support, high-resolution multimedia applications and visualizations can be implemented optimally.

Communication Interfaces

With dual Gigabit Ethernet and TSN, USB 3.0 Type-C, two USB 2.0 ports as well as CAN-FD, LVDS and HDMI interfaces, the BL i.MX8M Plus offers versatile connectivity. The MIPI-CSI interface with four lanes enables direct camera connection, making the board particularly attractive for image processing and vision systems. Various peripheral devices can be easily integrated, supporting a wide range of application scenarios.

Fields of Application & Advantages

The BL i.MX8M Plus is ideally suited for areas such as machine learning, image processing, human-machine interfaces (HMI), medical technology, and industrial automation. Its robust hardware foundation and real-time as well as AI capabilities ensure the flexibility and reliability required for data-driven and time-critical applications. The board stands out for its versatility and high performance.
