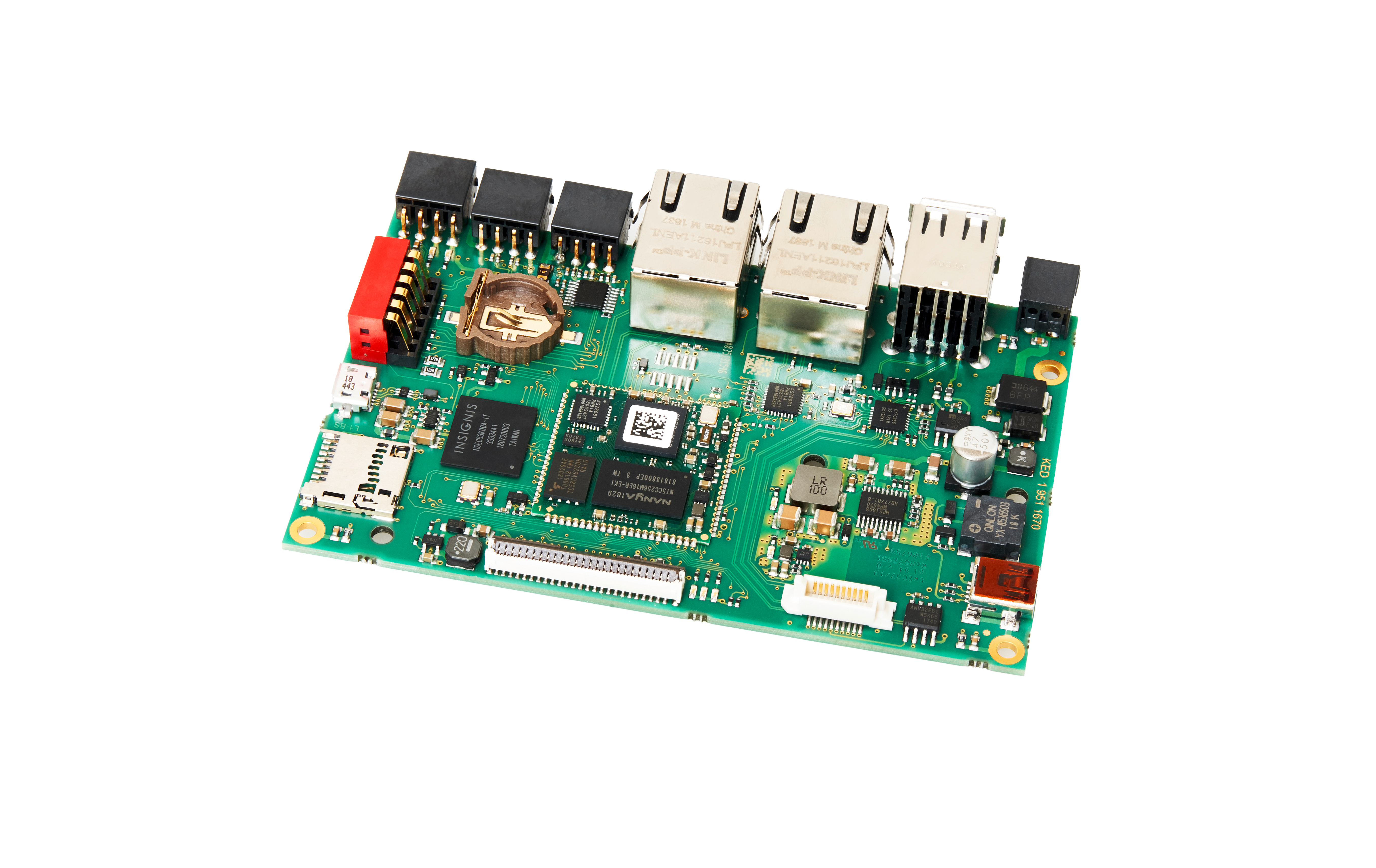

Baseboard BL i.MX6ULL

The BL i.MX6ULL/UL from Kontron Electronics is a powerful and highly versatile CPU board. Its modular construction and scalable memory make it suitable for a wide range of applications.The pre-installed Embedded Linux enables rapid commissioning and provides an efficient development environment. The board excels in versatility and allows for a quick time-to-market. With several processor module variants available, the hardware design remains consistent and future-proof, even as requirements change.

Performance & Architecture

At its core is the energy-efficient NXP i.MX6ULL/UL embedded application and control processor featuring a single Arm® Cortex®-A7, which can be clocked at up to 800 MHz. A scalable memory configuration - 512 MB RAM, 512 MB NAND, up to 64 GB eMMC, and a microSD card slot - provide flexible storage options. The support for a variety of interfaces and thoughtful design eliminates the need for specialized layout knowledge to connect DDR3 RAM, thereby reducing development time.

Communication Interfaces

The BL i.MX6ULL/UL module offers numerous interfaces for industrial use: LCD interface (RGB), I²C and USB touch support, as well as expansion connectors that enable customized functional extensions. This ensures easy integration into various applications and system environments.

Application Areas & Benefits

The BL i.MX6ULL/UL is well-suited for applications in IoT, Industry 4.0, medical technology, and communications where robust and flexible embedded systems are required. Thanks to its modular design, scalable memory configuration, and numerous interfaces, the board allows for easy integration into a wide range of system environments. Simplified hardware reduces complexity, making it easier to implement processor solutions and helping to minimize development times and overall costs. The use of a pre-installed embedded Linux, combined with a freely available Linux toolchain, supports flexible and license-free software development.
