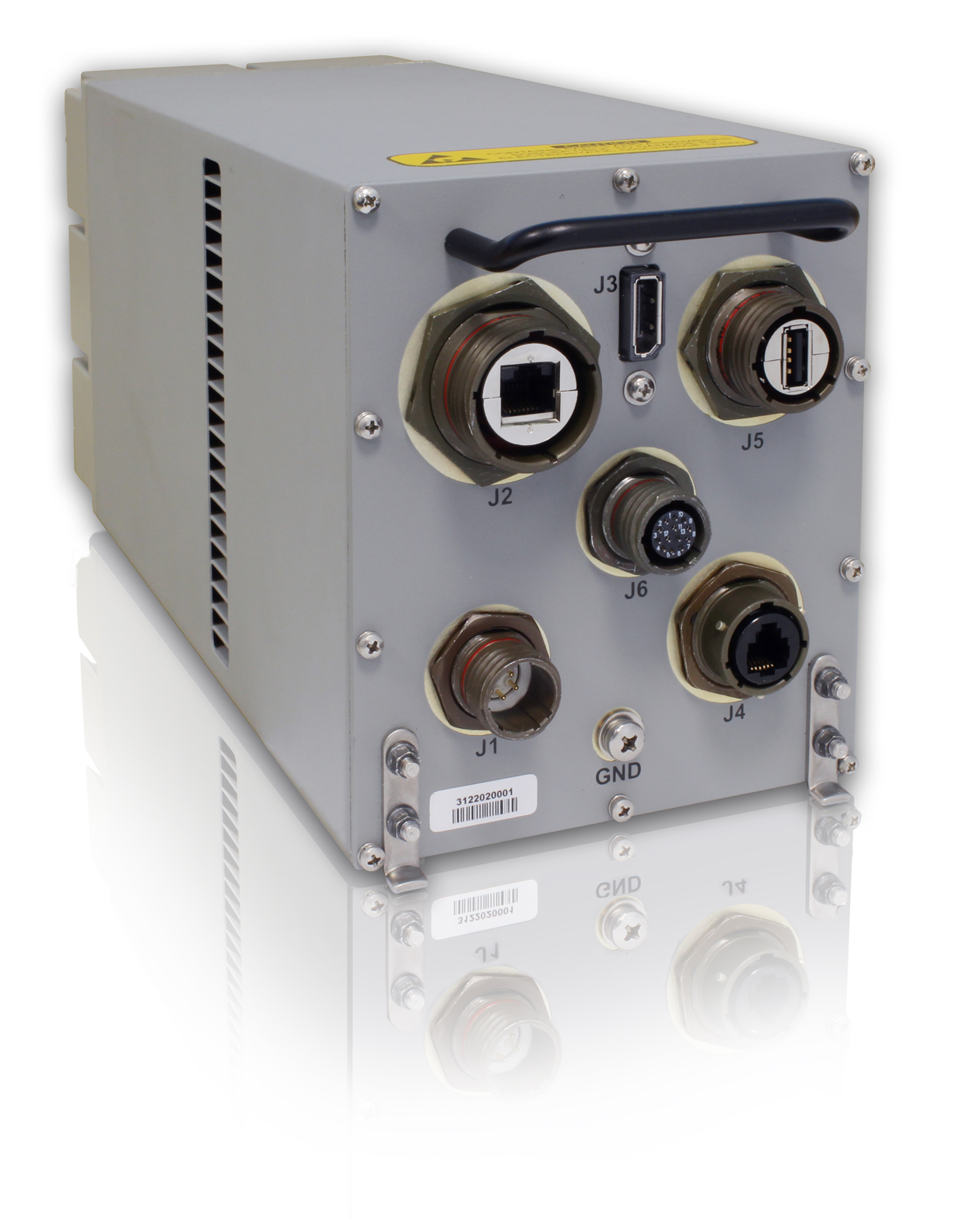

ApexVX

Multi-Mission Rugged Computer System
Specifications
  • Pre-qualified Solution based on COTS Building Blocks
  • Flexible Design for Easy Customization
  • 5-slot 3U VPX Computer System
  • Conduction-cooled Structure
  • PBIT System Test Innovative Learning Mode
  • Support for Kontron VXFabric™ and VXControl™ Smart Technology

Pre-qualified Computer System for Rapid Deployment

Kontron ApexVX is a pre-validated computer system that can be easily modified and adapted to your application requirements.
Based on Kontron COTS building blocks, it provides a cost-efficient, proven and technically stable solution to deploy
your next generation systems. ApexVX modular design ensures fast customization features that allow the system to adapt to the specific requirements of multiple missions, helping secure ambitious deployment schedule.
ApexVX multi-mission rugged computer system is the union of battle-proven enclosure technology and leading edge 3U VPX
computing technology. ApexVX is delivered fully functional and will run most Linux-based application without requiring
code change.

Features

Dimensions (H x W x D) 148.3 mm x 353.82 mm x 123.9 mm
Weight 11 lbs / 5 kg (depends on payloads)
Temperature Storage Temperature -50°C to 100°C
Operation Temperature -40°C to 71°C at sea level
Vibration Per MIL-STD-810E, 0.1g2/Hz, 15-2000 Hz (without shock tray)
Shock MIL-STD-810E, 40g, 20 ms, half sine wave (without shock tray)
Humidity Per MIL-STD-810E, 95% NC for 240 hours
EMC Per MIL-STD-461E, CE101, RE102, RS101, RS103
Power Supply 28 VDC/200W Input Std - 5V, +/-12V, 3.3V
Power Consumption Depends on payloads
I/Os 1 x Display Port
2 x Ethernet 10/100
24 x FPGA GPIO front or rear
16 x EIA-232 or 8 x EIA-422/EIA-485
2 x USB
1 x EIA-232
MIL-C-38999 connectors
