This product is legacy and no longer actively supported.

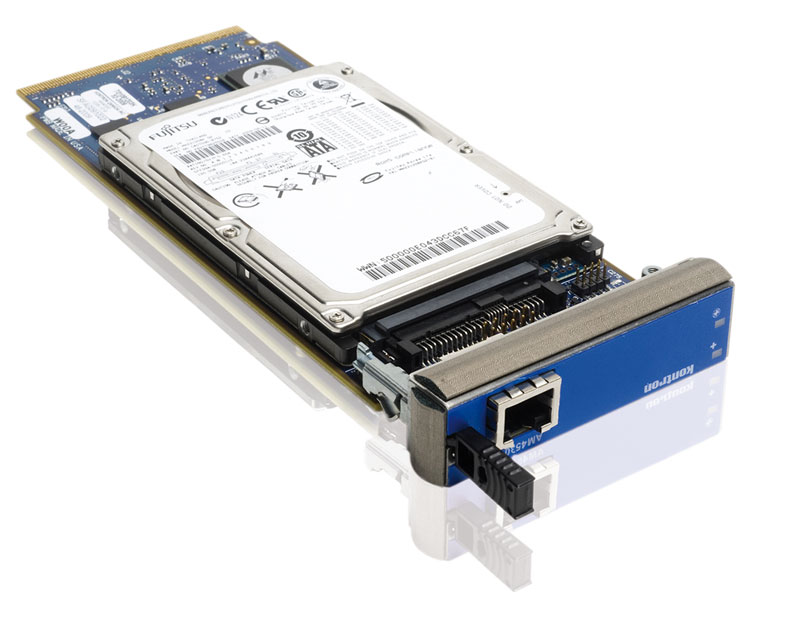

AM4530
AdvancedMC NAS Storage Module
- AM4530 available with 120GB or 250GB SATA HDD
- AM4531 available with 64GB SATA SSD or 128GB SSD
- Base or/and Fabric access via VLAN
- AMC.0, AMC.1, AMC.2 and AMC.3 compliant
- IPMC, Dual IPMB, IPMI v2.0
Cost-competitive Network Attached Storage solution for MicroTCA and ATCA platforms
Unique in the market, the Kontron AM453x AMC module is a cost-competitive storage solution for MicroTCA and ATCA platforms that require Network Attached Storage connectivity.
Specifically for MicroTCA-based systems, the AM453x module provides access to storage for Processor AMC modules that are without a SATA connection, such as the AM4100 PPC AMC for control plane applications or the AM42xx Cavium OCTEON II AMC for data plane applications.
From an ATCA platform standpoint, the AM453x can be a single point of code storage for the entire system when populated in one or both AMC slots of the Kontron AT89xx switch. This makes it an ideal solution for fast boot code or application code updates.
Two AM4530 modules can be set up in a redundant configuration for increased storage reliability, and are accessible by all blades and AMCs in the system via the base or fabric interface.
In terms of media, the AM453x supports both Hard Disk Drives and Solid State Drives using the 2.5” form factor and SATA interconnect. Basic NFS NAS is available via port 0 and 1 in the Common Option Region (Base Interface or Control Plane) and/or port 8 and 9 in the FAT Pipes Region (Fabric Interface or Data Plane) with VLAN support provided in all flavors.
Included into the module design are extensive sensors for monitoring and event generation on thresholds. There are two redundant Boot Block Flash BIOS and IPMI firmware with rollover.
Specifically for MicroTCA-based systems, the AM453x module provides access to storage for Processor AMC modules that are without a SATA connection, such as the AM4100 PPC AMC for control plane applications or the AM42xx Cavium OCTEON II AMC for data plane applications.
From an ATCA platform standpoint, the AM453x can be a single point of code storage for the entire system when populated in one or both AMC slots of the Kontron AT89xx switch. This makes it an ideal solution for fast boot code or application code updates.
Two AM4530 modules can be set up in a redundant configuration for increased storage reliability, and are accessible by all blades and AMCs in the system via the base or fabric interface.
In terms of media, the AM453x supports both Hard Disk Drives and Solid State Drives using the 2.5” form factor and SATA interconnect. Basic NFS NAS is available via port 0 and 1 in the Common Option Region (Base Interface or Control Plane) and/or port 8 and 9 in the FAT Pipes Region (Fabric Interface or Data Plane) with VLAN support provided in all flavors.
Included into the module design are extensive sensors for monitoring and event generation on thresholds. There are two redundant Boot Block Flash BIOS and IPMI firmware with rollover.
