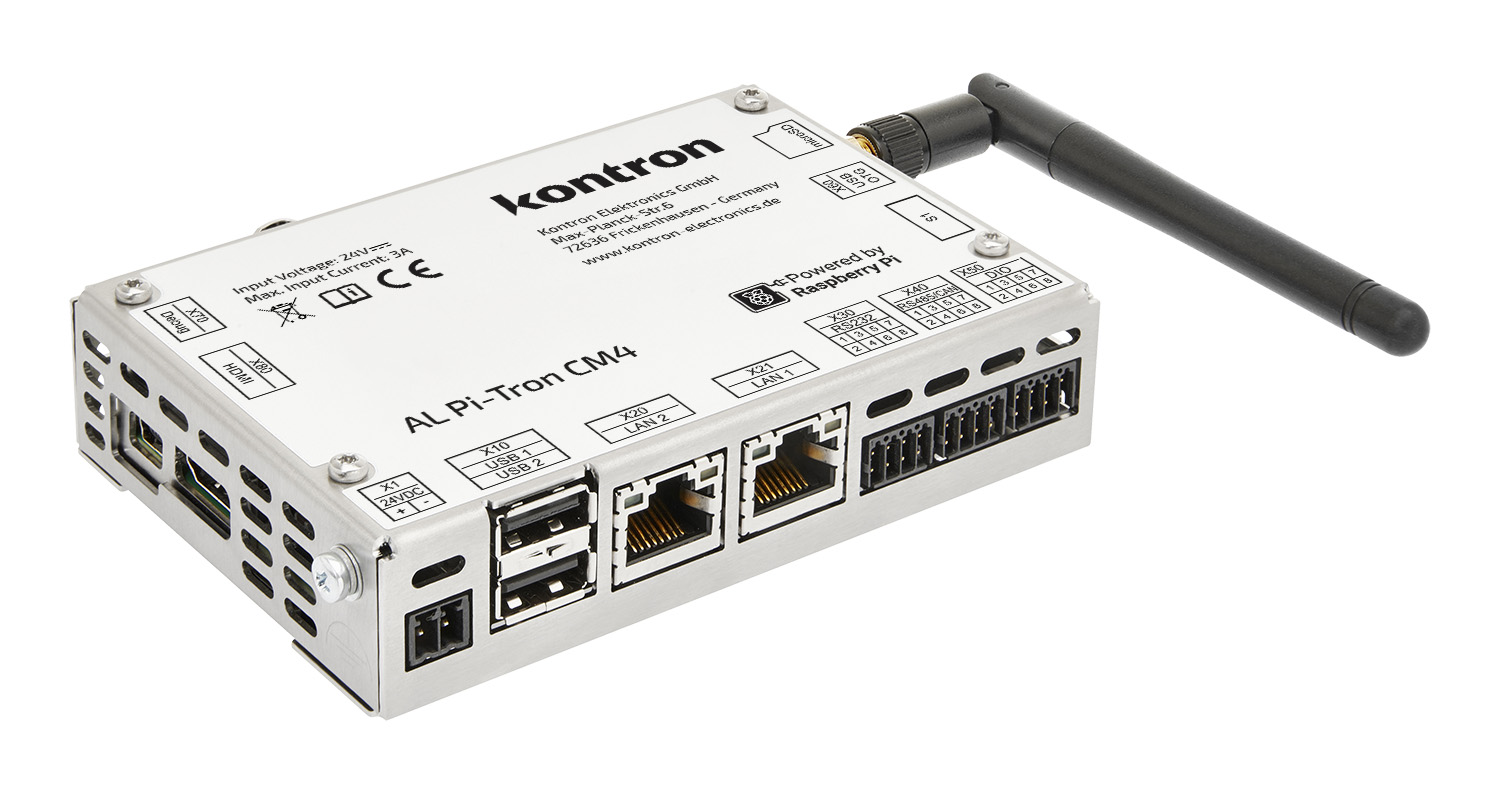

AL Pi-Tron CM4

Compact Box-PC, Broadcom BCM2711, 4x Arm® Cortex®-A72 @1.5 GHz

Specifications

Memory: LPDDR4-RAM, Compute Modul CM4 Lite, 1x microSD Card Slot, FRAM
Communication: Ethernet, USB, RS232, RS485, CAN, DIO, WLAN/Bluetooth
Operating system: Raspbian Linux (not preinstalled)

The Pi-Tron CM4 is based on the new fourth-generation Compute Module and features the Broadcom BCM2711 4x Arm® Cortex®-A72, 64-bit SoC @1.5 GHz, a significantly faster processor than the previous generation. It has more memory with 1 GB, 2 GB, 4 GB or 8 GB LPDDR4-3200 SDRAM, depending on the variant. There are also options for an eMMC memory with 8 GB, 16 GB or 32 GB available. Additionally, the board offers an optional pre-certified wireless LAN/Bluetooth connection.

An M.2 B key slot with PCIe connection enables the use of standard modules with the corresponding interface. For example, individual AI solutions for machine vision and machine/deep learning can be implemented with the very powerful Hailo-8™ AI modules or the Google Coral AI Edge TPU. For the integration into IoT solutions, the Pi-Tron has been prepared to use LTE modules with SIM cards and an external antenna connection.

The range of functions of the interfaces has been significantly expanded. The Automation Line AL Pi-Tron CM4 is available in a housing, allowing for universal application and making it especially well-suited for industrial applications.

Features

CPU	Broadcom BCM2711 4x Arm® Cortex®-A72 @1.5 GHz, H.265 (HEVC) up to 4Kp60 decode, H.264 up to 1080p decode, 1080p30 encode OpenGL ES 3.0 graphic

LPDDR4-RAM

2 GByte optional 1 GByte, 4 GByte, 8 GByte

eMMC	16 GByte optional Lite/8 GByte/32 GByte (Lite: without eMMC only with microSD Card)

SD CARD

CM4 Lite: 1x microSD-Slot for operating system CM4 8/16/32 GB: 1x microSD-Slot only for data

EEPROM

32 kbit

Ethernet

1x 1 Gbit/s, 1x 10/100 Mbit/s

USB	2x 2.0 Host, 1x 2.0 OTG: only for programming eMMC

Serial

1x RS232, 1x RS485

CAN	1x CAN 2.0B/FD

WLAN/Bluetooth

Optional 2.4 GHz, 5.0 GHz
IEEE 802.11 b/g/n/ac wireless BT 5.0, BLE

LCD INTERFACE

1x HDMI 2.0 (up to 4Kp60)

Touch

Optional via USB

Power Supply

24 V DC ±20 %

Power Consumption

3.4 W ... 9.6 W (without periphery)

Form Factor

Stainless steel housing 111 x 25 x 76 mm for mounting on 35 mm DIN rail acc. EN 60715

Protection Class

IP20

Approvals

Operating System

Raspbian Linux (not preinstalled)
