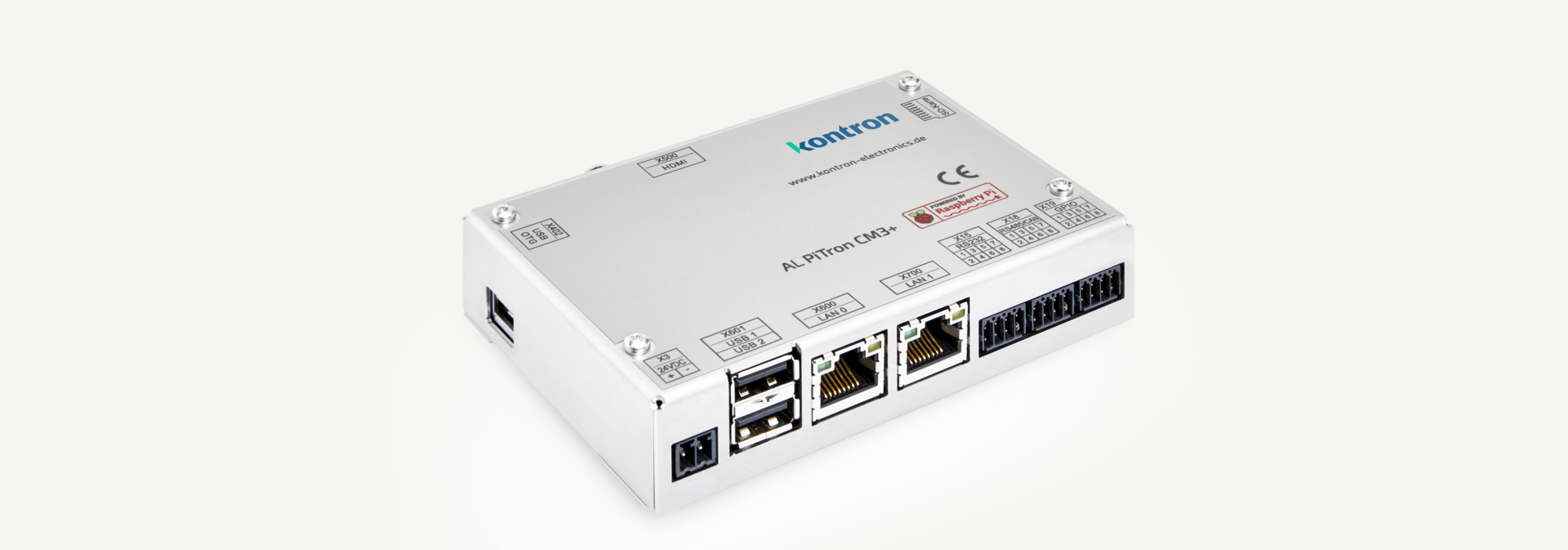

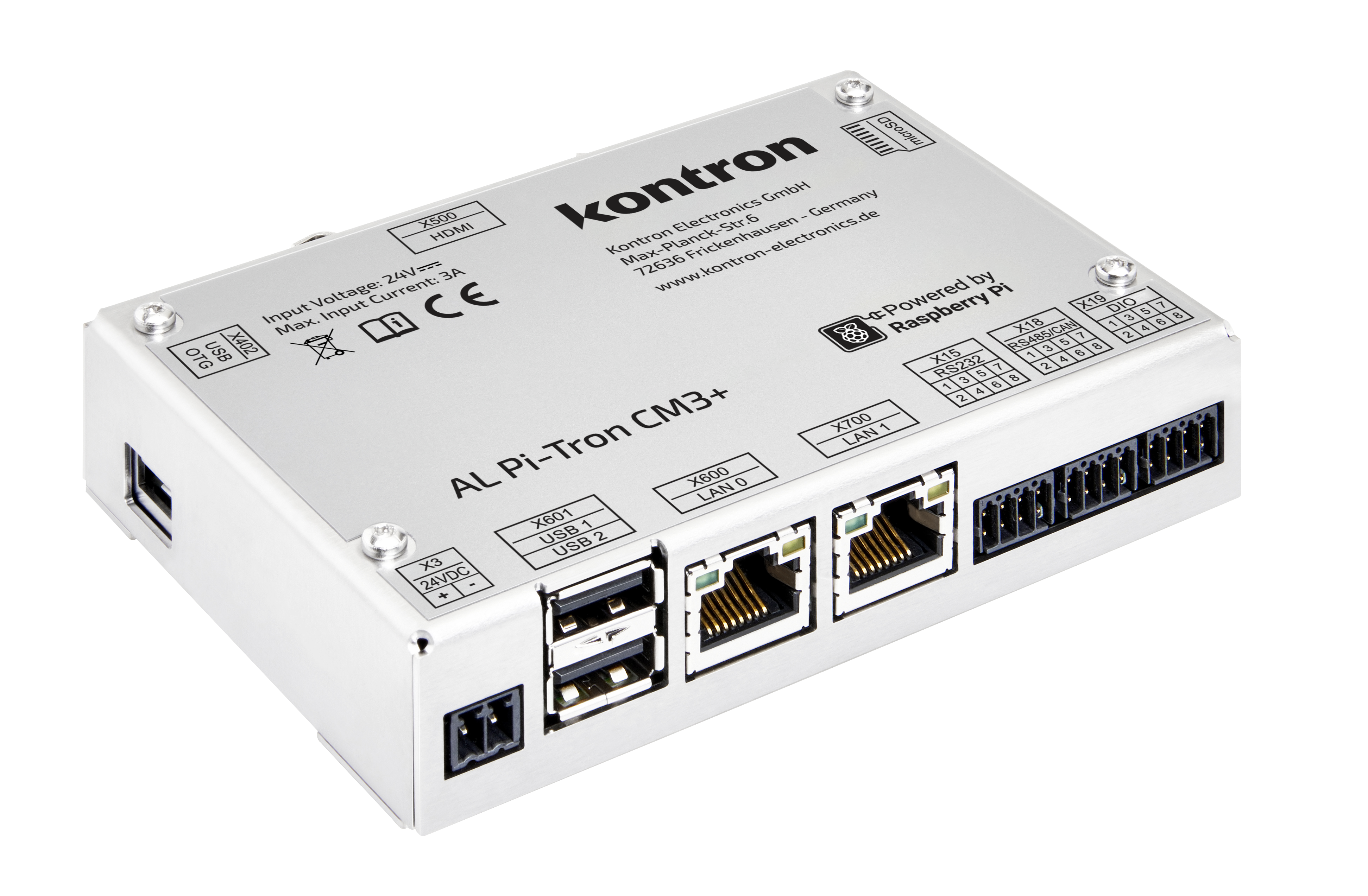

AL Pi-Tron CM3+

Compact Box-PC, Broadcom BCM2837B0, 4x Arm® Cortex®-A53 @1.2 GHz

Specifications

Memory: LPDDR2-RAM, eMMC or SD-Card
Communication: Ethernet, USB, RS232, RS485, CAN, DIO, Display: 1x micro HDMI
Operating System: Raspbian Linux (not preinstalled)

Pi-Tron has been designed to focus primarily on communication functions and is often used as a gateway or data logger. In combination with the multifunctional I/O modules, even complex automation solutions can be implemented.

The Pi-Tron CM3+ and the Pi-Tron CM4 can optionally be equipped with the SoftPLC CODESYS®. This makes it possible to develop all applications that require a programmable logic controller.

Features

CPU	Broadcom BCM2837BO 4x Arm® Cortex®-A53 @1.2 GHz

LPDDR2-RAM

1 GByte

eMMC	8 GByte/32 GByte When using eMMC memory, booting from the SD card is not possible.

SD CARD

Compute Module CM3+ Lite, 1x microSD Card Slot for operating system

FRAM

16 kbit

Ethernet

2x 10/100 Mbit/s

USB	2x 2.0 Host

Serial

1x RS232, 1x RS485

CAN

1x 2.0

DIO	4x DIO (24 V/up to 800 mA)

LCD INTERFACE

1x 2-lane DSI Display Interface
(up to 1 Gbit/s per lane, DSI 1)
1x Micro-HDMI 1.3a 1080p @30 fps

Touch

1x I²C, 1x USB

Camera Interface

1x 2-lane CSI Camera Interface (CSI 1)

Power Supply

24 V DC ±20 %

Power Consumption

3.4 W... 9.6 W (without periphery)

Form Factor

Stainless steel housing 111 x 25 x 76 mm for mounting on 35 mm mounting rail acc. to EN 60715

Temperature

Range: 0 °C ... +55 °C

Protection Class

IP20

Approvals

FCC and UL61010, CB report

Operating System

Raspbian Linux (not preinstalled)
